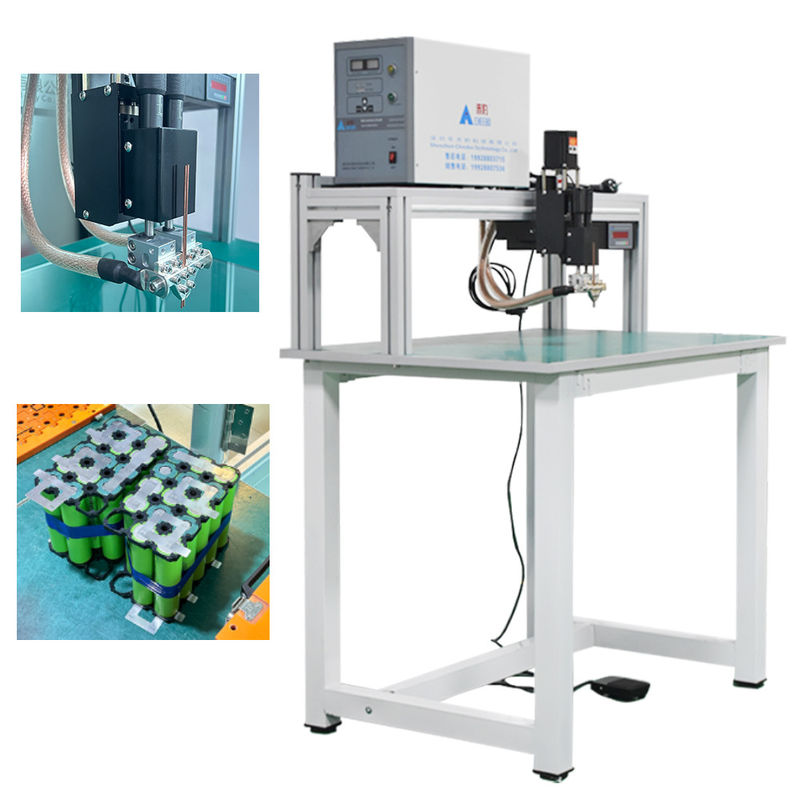

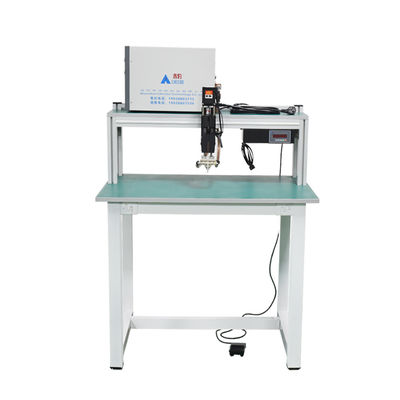

Pure Electric Semi-Automatic Desktop Precision Spot Welding Machine For Cylindrical Lithium Batteries

Pure Electric Semi-Automatic Desktop Precision Spot Welding Machine For Cylindrical Lithium Batteries

  • High Light

    Pure Electric Spot Welding Machine

    ,

    Desktop Precision Spot Welding Machine

    ,

    Cylindrical Lithium Batteries Spot Welding Machine

  • Voltage
    220v
  • Usage
    Spot Welding
  • Weight
    60KG
  • Dimensions
    900*600*1420mm
  • Max. Welding Thickness
    0.3mm
  • Product Name
    Multi-pulse Electric Lithium Battery Spot Welding Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    50 Set/Sets per Week

Pure Electric Semi-Automatic Desktop Precision Spot Welding Machine For Cylindrical Lithium Batteries

Pure Electric Semi-Automatic Desktop Precision Spot Welding Machine For Cylindrical Lithium Batteries


Equipment introduction



● The lithium battery spot welding machine adopts a pure electric design without a cylinder, resulting in low noise and stable pressure.
● It is driven by a motor and precisely controlled by a control box, offering three adjustable modes.
● The CBLD-26 multi-pulse lithium battery spot welding machine utilizes a proprietary output energy optimization algorithm, ensuring reasonable conversion between output voltage and output current. This results in strong welding capabilities, secure welds, no false welding, minimal sparks, and excellent surface quality.
● Precisely developed welding heads allow for precise pressure adjustment and control.
● Microcomputer technology is employed for control.


● Applicable battery specifications: minimum not less than 50MM, maximum not more than 130MM (can be used for height increase type).


● The welding platform adopts high quality tempered glass to protect the desktop from wear and tear during the welding process.


● Vertical spot welding method is spot welding, manual control of pressure depth.


● Digital LED display, equipment parameters adjustment is more intuitive, easy to learn and easy to operate.


● Welding machine can be pre-stored multiple procedures, can be changed and called at will.


● Compact structure, small volume, high power, large industrial circuit design, safe and reliable welding process



Function Introduction



1.Adjusting mechanism of welding head.
The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld batteries of different heights and types.

Pure Electric Semi-Automatic Desktop Precision Spot Welding Machine For Cylindrical Lithium Batteries 0



2.Cylinder drive

The air source interface is connected to the pressure regulator to regulate the air source pressure and filter water. The gas is transported to the solenoid valve, which controls the gas drive cylinder and drives the welding head.



Pure Electric Semi-Automatic Desktop Precision Spot Welding Machine For Cylindrical Lithium Batteries 1



3. Electric control

No additional air source required, low noise, fast welding speed, and stable pressure.

Pure Electric Semi-Automatic Desktop Precision Spot Welding Machine For Cylindrical Lithium Batteries 2



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



  1. Welding case



Pure Electric Semi-Automatic Desktop Precision Spot Welding Machine For Cylindrical Lithium Batteries 3 Pure Electric Semi-Automatic Desktop Precision Spot Welding Machine For Cylindrical Lithium Batteries 4 Pure Electric Semi-Automatic Desktop Precision Spot Welding Machine For Cylindrical Lithium Batteries 5



Boundary dimension

Pure Electric Semi-Automatic Desktop Precision Spot Welding Machine For Cylindrical Lithium Batteries 6
