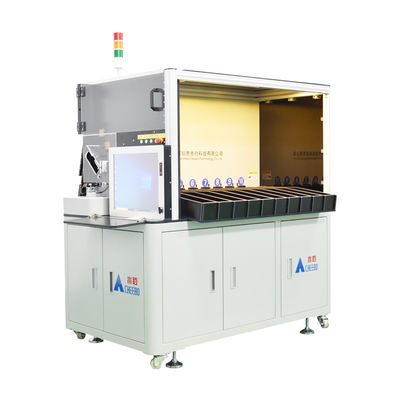

Multi Compatible Fully Automatic Lithium Battery Sorting Machine Comprehensive Ten Level

Multi Compatible Fully Automatic Lithium Battery Sorting Machine Comprehensive Ten Level

  • High Light

    Fully Automatic Lithium Battery Sorting Machine

    ,

    Multi Compatible Lithium Battery Sorting Machine

    ,

    Ten Level Lithium Battery Sorting Machine

  • Finished Product Sorting File
    10
  • Waste Sorting File
    1
  • Production Efficiency
    50-70PPM
  • Air Source Specifications
    1/CFM
  • Product Name
    10 Gear Sorting Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFXH-10
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    15 Set/Sets per Week

Multi Compatible Fully Automatic Lithium Battery Sorting Machine Comprehensive Ten Level

Multi Compatible Fully Automatic Lithium Battery Comprehensive Ten Level Sorting Machine



Equipment introduction

CBFXH-10 multifunctional cylindrical battery testing and sorting machine is an automatic sorting equipment suitable for voltage and internal resistance testing of various specifications of cylindrical cells.



Applicable battery cell models: 18650/21700/26650/26700/32650/32700, etc


Complete the sorting of more than 4000 cylindrical finished cells per hour.


Easy to operate interface with one click generation function. Simply input the starting voltage internal resistance and corresponding interval to complete parameter setting.


Equipped with manual parameter modification function, it can be fine-tuned for each gear position or adjusted with one click modification function.


Adopting a 10+1 gear design, there are a total of 11 gears. 10 good product positions, with 1 NG slot independently set at the rear end.


Adopting PLC+upper computer control mode, the upper computer records and displays sorting data in real-time, and the sorting data can be saved and exported.


Adopting Mitsubishi PLC+imported Panasonic servo control unit+4 probe design. The mechanical structure design is simple and generous, and the system performance is stable.


Adopting a 19 inch integrated industrial grade computer, real-time display of sorting data, and simple and convenient human-computer interaction.


Fault information reminder function, fault sound and light alarm, can quickly diagnose faults.


Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, and anti-static.



Technical specification
Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 10+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1390*820*1360MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting



Function Introduction



1. Operating interface

Equipped with a 19 inch touch screen integrated industrial computer and i3 processor, it can process data faster. Setting gear parameters is simple and fast. Real time display of sorting data on a 19 inch large screen, output, and accurate recording of testing parameters for each cell. Sorting data can be exported.

Multi Compatible Fully Automatic Lithium Battery Sorting Machine Comprehensive Ten Level 0



2. Baffleless design

No baffle design, smooth operation, no lag.The sorting state of the cell at the arrival position is clearly visible.
Multi Compatible Fully Automatic Lithium Battery Sorting Machine Comprehensive Ten Level 1



3. Loading mechanism

Humanized design, easy to fill the whole box. Large hopper, one time can put 400PCS18650 cells.

Multi Compatible Fully Automatic Lithium Battery Sorting Machine Comprehensive Ten Level 2

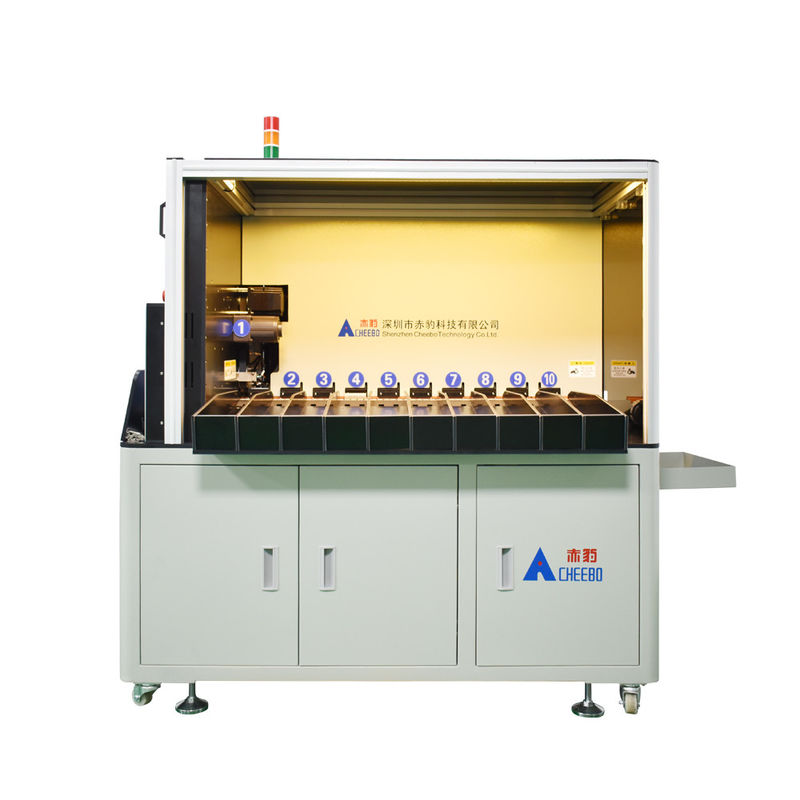

Equipment analysis diagram

Multi Compatible Fully Automatic Lithium Battery Sorting Machine Comprehensive Ten Level 3

1. Battery charging hopper 2. Battery type wave wheel replacement area
3. 4 Probe head design 4. Integrated industrial computer touch screen
5. Flexible belt transmission 6. 10+1 channel
7. Panasonic servo motor



Device action flow description



Place the battery into the reservoir - Run the test wheel to the testing position - Test cylinder action - Test needle pressed on the battery - Tester



reading Data - Transfer to computer - Computer performs gear matching - Battery turns to sorting belt - Sorting belt runs to specified gear - Gear


The cylinder action pushes the battery out



FAQ



Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
