● Controlled by a single-chip computer, it can achieve single-pulse, multi-pulse, and dual-pulse welding.

● The lithium battery welding machine adopts a proprietary output energy optimization algorithm, with reasonable output voltage and output current conversion, strong welding capacity, firm welding joints, no false welding, small sparks, and excellent surface quality.

● Independent welding pin with spring buffering design for precise adjustment of welding pressure.

● The welding head platform can be adjusted up and down, allowing welding of various sizes of batteries.

● Using imported alumina copper electrodes, pure purple copper welding cables, pure copper electrode clamps, and other high-quality accessories, the machine is durable.

● Precise control by intelligent chips, imported control chips, microsecond-level corresponding chip integration process, small size, able to work for long hours, and stable operation.

● All parameters are set digitally, providing stable, intuitive, and accurate parameter adjustment.

● The welding adopts vertical spot welding with adjustable pressure depth.

● Pneumatic precision welding heads developed by CHEEBO feature precise pressure adjustment control.

● Digital LED display for more intuitive adjustment of equipment parameters, easy to learn and operate.

● Controlled by microcomputer technology, grid voltage control, and automatic tracking compensation.

● The portable lithium battery spot welding machine adopts an all-in-one design, saving space and easy to carry.

● The welding machine can pre-store multiple programs, which can be changed and recalled as needed.

● Compact structure, small size, high power, and industrial circuit design ensure a safe and reliable welding process.

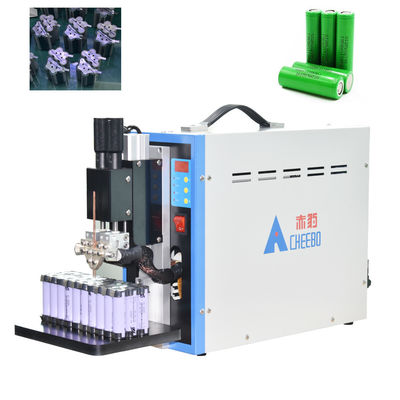

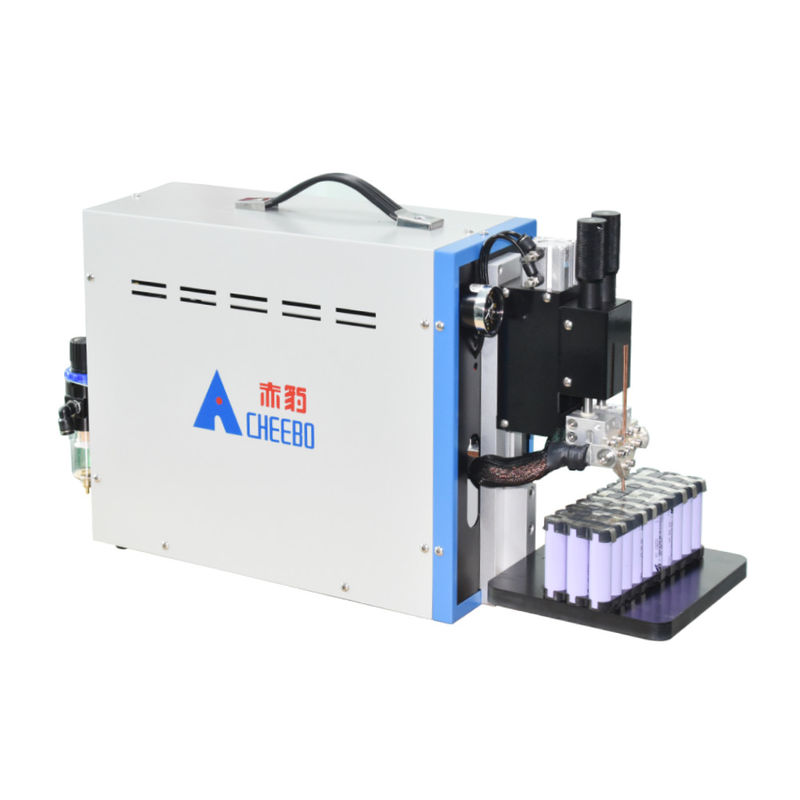

This product is currently widely popular AC pulse spot welding machine, using microcomputer single-chip microcomputer control, stable and

reliable performance. Industrial grade welding equipment. It is used for power lithium-ion battery module welding, 3C lithium-ion battery pack

welding, nickel-metal hydride battery pack welding, hardware small parts welding, electronic and electrical parts welding, wire terminal welding,

stainless steel parts welding, metal jewelry, copper products, aluminum products, etc. At the same time, it is also suitable for product maintenance

and proofing.

1. Welding case

1. Pneumatic precision welding head

Double point welding head with both left and right electrodes simultaneously pressed down, precise and adjustable. Flexible and fast pressurization, with good pressure follow-up. High machining accuracy and small electrode inertia. The built-in pressure on-site sensing device is connected to the welding controller to ensure that each welding pressure meets the requirements.

2. Pressure regulation

The welding head pressure can be adjusted between 1-10KG to ensure good welding results for different thicknesses and materials.

3. Operation panel

LED digital display. "+", "-" to adjust the data. "#" switch to adjust the data. Data adjustment is simple and convenient. One-click switch button.

1. Welding pressure: 1-5 kg/F
2. Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters
3. Air pressure regulation
4. Adjustment of needle extension length
5. Adjust the position under the table top
6. Adjust the spacing between the left and right pins

Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.

Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.

Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

Service process

After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
