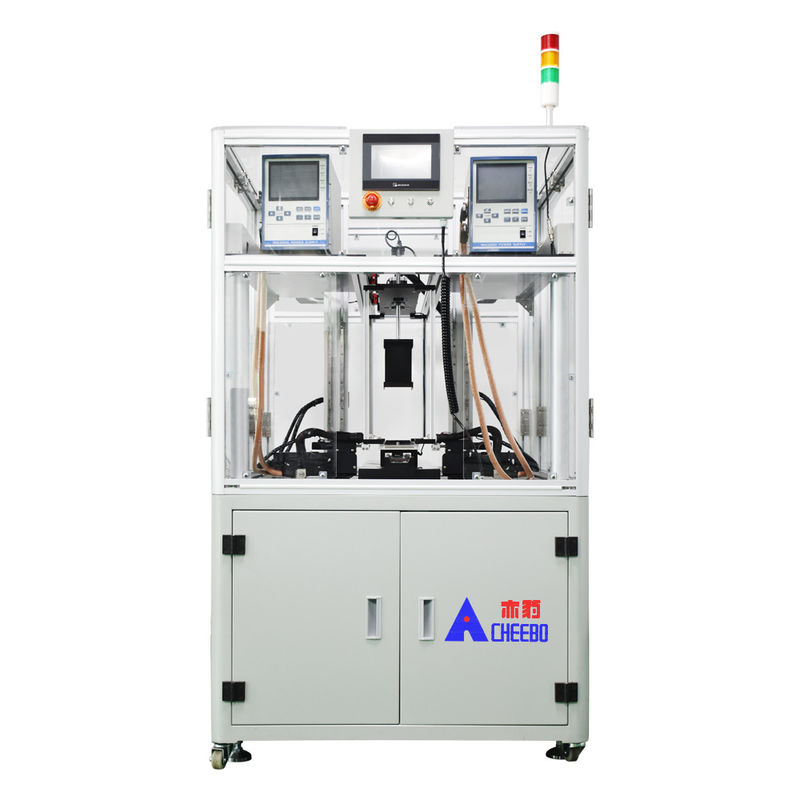

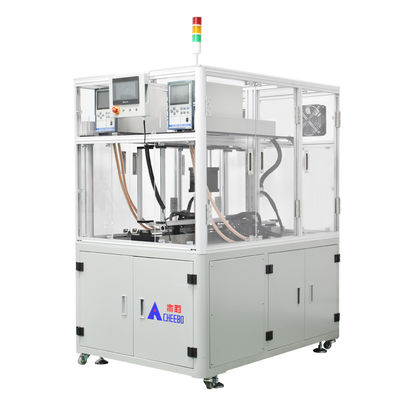

● CHEEBO CBMN5-6040 lithium battery spot welding machine adopts double-sided simultaneous spot welding, which eliminates the need for connecting gas sources for more efficient production. At the same time, it also avoids fluctuations during welding caused by unstable gas source pressure, with fast welding speed and high accuracy.
● Suitable for welding and assembling power battery packs with nickel plates below 0.3MM.
● It adopts a silver screw guide rail module from Taiwan, which features high precision, low noise, smooth sliding, and durability.
● Using a transistor welding power supply, the current rises quickly, ensuring efficient welding.
● Equipped with Panasonic servo motor control, it boasts a fast response speed, precise and efficient control, a long service life, and is not easily damaged.
● The entire machine uses imported accessories, ensuring a long service life and a low damage rate.
● The fully automatic battery pack spot welding machine is equipped with a high-definition LCD touch screen, and its interactive human-machine interface is simple and convenient to operate.
● The equipment has automatic alarm functions for explosive welding and false welding, manual adjustment for automatic zone repair welding, and single point repair welding.
● The lithium battery spot welding machine has manual programming and CAD mapping functions, allowing for the rapid import of spot welding paths to achieve programming. It is easy to learn, making it fully competent for production line workers.
● Independently developing various automated intelligent systems facilitates the setting of equipment operation status and doubles production capacity.
● It is equipped with functions such as energy switching, production counting, welding needle compensation, and manual debugging.
● With an aluminum alloy skeleton and imported acrylic protective plate, it has a beautiful and elegant appearance with a strong sense of technology. Comprehensive visual operation improves the production safety factor.
● Adopting a through design structure (both forward and backward), it is easy to connect to other assembly processes on the backend, making the assembly and production process of battery packs simpler and faster.
| Production efficiency | 3000PCS/H | Welding thickness | 0.02-0.3MM |
| Welding pressure | 5KG/F | Type of cooling | Forced water circulation cooling |
| XY shaft welding stroke | 400MM*600MM | Mode of motion | Automatic continuity |
| XY shaft welding accuracy | 0.1MM | Welding source | Transistor/multipulse (Optional) |
| Electrode material | Copper alumina | Machine Dimensions | 1400*1000*1680MM |
| Welding head rotation | NO | Machine Weight | 330KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Cylindrical battery welding |
1. Transistor welding power supply
Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.
2. Lead screw guide
WIHIN screw guide module, high precision, low noise, smooth sliding, durable.
3.Hd touch screen
Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.
1. Energy storage battery pack 2. Electric bicycle battery pack 3. Power tool battery pack
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
