● The welding power control adopts a switch switching method, enabling miniaturized, efficient, and high-output welding.
● The welding current rises quickly, making it most suitable for ultra-precision welding.
● There are three types of control: ①constant current control, ②constant voltage control, and ③a combination of constant current and constant voltage control.
● The energy stored in the capacitor is utilized for welding, suitable for conditions with low power.
● Real-time dynamic detection of current, voltage, power, and resistance waveforms.
● The automatic welding current monitoring function effectively monitors the welding output current, and when the welding current exceeds the alarm value, welding will be promptly supplemented.
● Controlled by precision microcomputer technology, it can save multiple programs and change or call them at any time.
● With a proprietary OUTPUT ENERGY optimization algorithm, the output voltage and current conversion are reasonable, resulting in strong welding capability, firm welding joints, no need for re-welding, small sparks, and good welding quality.
● The industrial circuit design ensures a safe and reliable circuit.
Power lithium-ion battery modules, 3C lithium-ion battery packs, nickel-metal hydride battery packs, hardware small parts, electronic and
electrical components, wire harness terminals, stainless steel parts, metal jewelry, copper products, aluminum products, etc. At the same
time, they are also suitable for product maintenance proofing and other work.
| Welding thickness | 0.02-0.5MM | Welding power supply | Transistor |
| Welding mode | Single side double point horizontal welding | Table top and weld head height | 250 (Maximum pitch adjustable) |
| Supply current | 5000A/8000A/10000A | Welding speed | 200P/M |
| Spot welding method | Bump welding/tip welding | Welding pressure | 5KG/F |
| Maximum voltage | 30V(Adjustable by oneself) | Equipment size | 600*900*1300MM |
| Driving mode | Pneumatic | Machine Weight | 60KG |
| Power source specification | Single-phase 220V50/60HZ | Application scenarios | Battery welding |

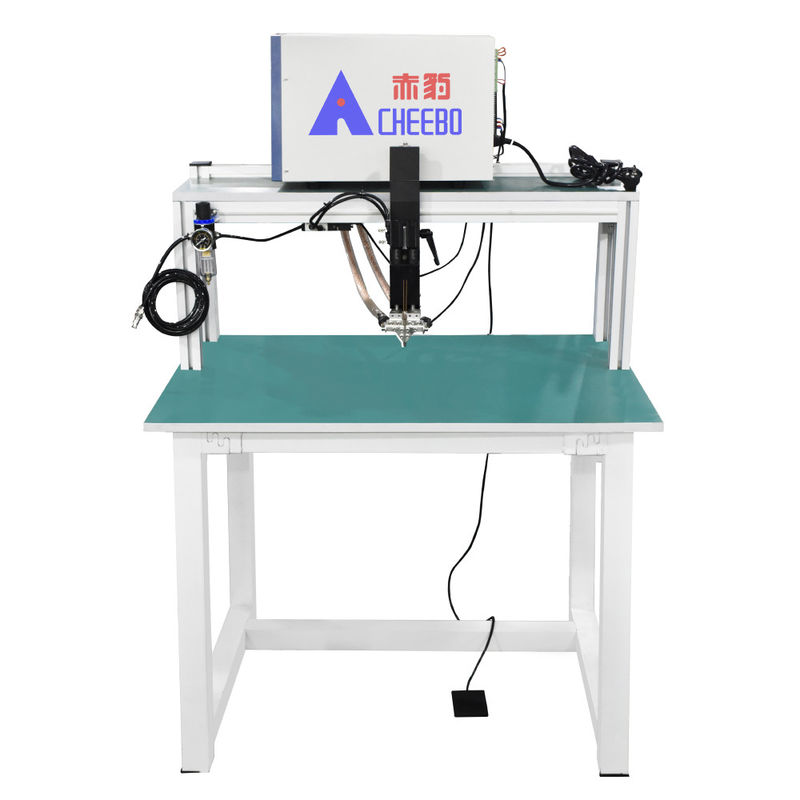

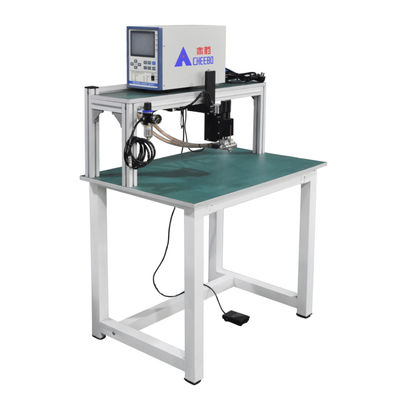

1. Cylinder drive
The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.
2.Pneumatic precision welding head
Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.
3. Thickened tempered glass
High quality explosion-proof glass is used to effectively prevent the damage caused to the desktop during welding. At the same time, it can increase the fluency of welding and increase the welding efficiency.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery model and type.
2) Welding material and welding thickness
3) Commercial industry: We have a lot of sales experience and can provide you with advice.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
Our products are sold all over the world, you can rest assured.
