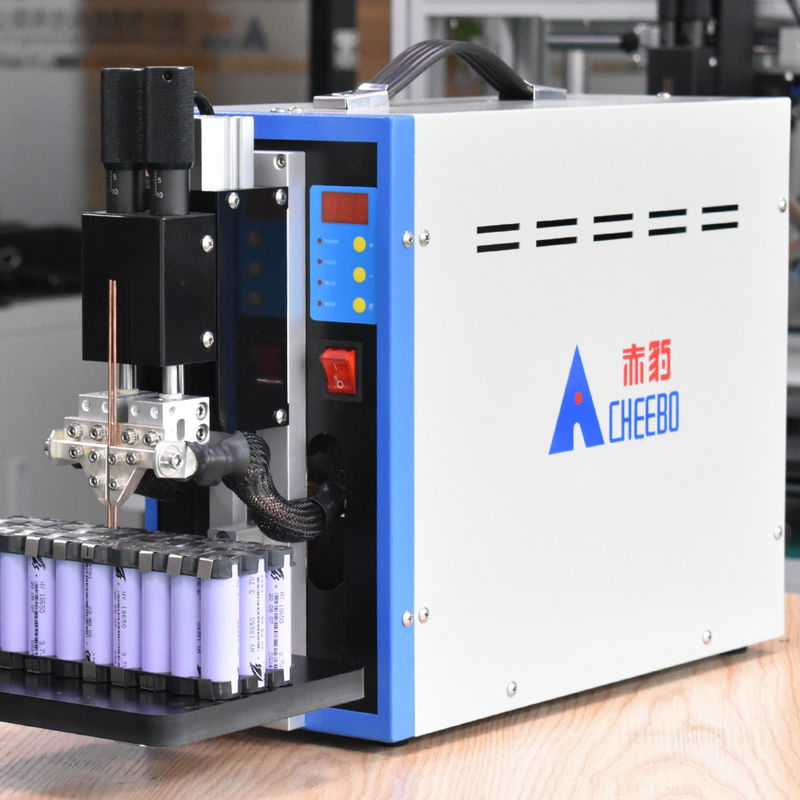

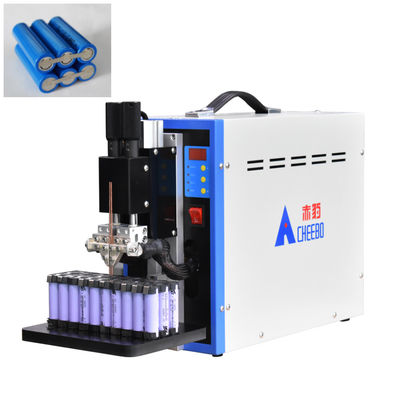

Portable Battery Spot Welder Mini Spot Welding Machine For Lithium Ion Battery

Portable Battery Spot Welder Mini Spot Welding Machine For Lithium Ion Battery

  • Highlight

    Mini Portable Battery Spot Welder

    ,

    Lithium Ion Battery Spot Welding Machine

    ,

    Spot Welding Machine For Battery

  • Usage
    Spot Welding
  • Condition
    New
  • Warranty
    1 Year
  • Weight
    60KG
  • Max. Welding Thickness
    0.3mm
  • Product Name
    Portable Lithium Battery Spot Welder
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    50 Set/Sets per Week

Portable Battery Spot Welder Mini Spot Welding Machine For Lithium Ion Battery

Portable Battery Spot Welder Mini Spot Welding Machine For Lithium Ion Battery


Equipment introduction



● Controlled by a single-chip computer, it can achieve single-pulse, multi-pulse, and dual-pulse welding.

● The lithium battery welding machine adopts a proprietary output energy optimization algorithm, with reasonable output voltage and output current conversion, strong welding capacity, firm welding joints, no false welding, small sparks, and excellent surface quality.

● Independent welding pin with spring buffering design for precise adjustment of welding pressure.

● The welding head platform can be adjusted up and down, allowing welding of various sizes of batteries.

● Using imported alumina copper electrodes, pure purple copper welding cables, pure copper electrode clamps, and other high-quality accessories, the machine is durable.

● Precise control by intelligent chips, imported control chips, microsecond-level corresponding chip integration process, small size, able to work for long hours, and stable operation.

● All parameters are set digitally, providing stable, intuitive, and accurate parameter adjustment.

● The welding adopts vertical spot welding with adjustable pressure depth.

● Pneumatic precision welding heads developed by CHEEBO feature precise pressure adjustment control.

● Digital LED display for more intuitive adjustment of equipment parameters, easy to learn and operate.

● Controlled by microcomputer technology, grid voltage control, and automatic tracking compensation.

● The portable lithium battery spot welding machine adopts an all-in-one design, saving space and easy to carry.

● The welding machine can pre-store multiple programs, which can be changed and recalled as needed.

● Compact structure, small size, high power, and industrial circuit design ensure a safe and reliable welding process.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



1. Pressure regulation

The pressure of the sonotrode is adjustable between 1-10KG to ensure good welding results of different thicknesses and materials.



Portable Battery Spot Welder Mini Spot Welding Machine For Lithium Ion Battery 0



2. Welding table

The welding workbench can be adjusted up and down, and the loose screws can be adjusted, which is simple and convenient, and is suitable for battery welding of various specifications.

Portable Battery Spot Welder Mini Spot Welding Machine For Lithium Ion Battery 1



3. Pneumatic precision welding head

The left and right electrodes of the double spot welding head are pressed down at the same time, which is accurately adjustable. Flexible and rapid pressure, good pressure follow-up. High machining precision, small electrode inertia. The built-in pressure induction device is connected with the welding controller to ensure that the welding pressure meets the requirements.

Portable Battery Spot Welder Mini Spot Welding Machine For Lithium Ion Battery 2



Matters need attention



1. Polish the welding needle regularly.


2. Regularly check whether there is loosening in each part.


3. Do not disassemble and debug the equipment at will.


4. Do not disassemble circuit components without permission.


5. Periodically clean welding dust from all parts of the device.


6. Check the lubrication degree of each moving part every month.


7. Please read the instructions carefully before operation and operate according to the specifications of the instructions.



FAQ



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.

Portable Battery Spot Welder Mini Spot Welding Machine For Lithium Ion Battery 3

Service process

After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
