Battery Pack Assembly Equipment Spot Welding Machine For Lithium Ion Battery Pedal

Battery Pack Assembly Equipment Spot Welding Machine For Lithium Ion Battery Pedal

  • High Light

    Battery Pack Assembly Equipment Battery Welder

    ,

    Spot Welding Battery Pack Assembly Equipment

    ,

    Spot Welding Machine for Lithium Battery

  • Equipment Weight
    60KG
  • Voltage
    220v
  • Welding Thickness
    0.3MM
  • Dimensions
    640mm*200mm*360mm
  • Welding Principle
    Resistance Welding
  • Product Name
    Portable Lithium Battery Spot Welder
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    100 Set/Sets per Week

Battery Pack Assembly Equipment Spot Welding Machine For Lithium Ion Battery Pedal

Battery Pack Assembly Equipment Spot Welding Machine For Lithium Ion Battery Pedal

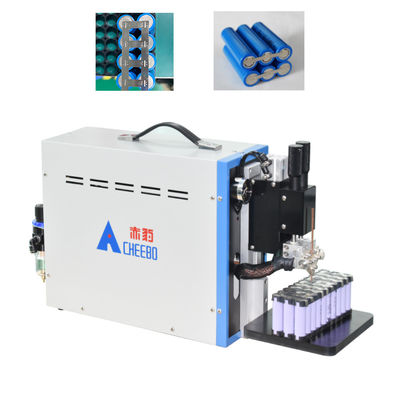

Equipment introduction



● Controlled by a single-chip computer, it can achieve single-pulse, multi-pulse, and dual-pulse welding.

● The lithium battery welding machine adopts a proprietary output energy optimization algorithm, with reasonable output voltage and output current conversion, strong welding capacity, firm welding joints, no false welding, small sparks, and excellent surface quality.

● Independent welding pin with spring buffering design for precise adjustment of welding pressure.

● The welding head platform can be adjusted up and down, allowing welding of various sizes of batteries.

● Using imported alumina copper electrodes, pure purple copper welding cables, pure copper electrode clamps, and other high-quality accessories, the machine is durable.

● Precise control by intelligent chips, imported control chips, microsecond-level corresponding chip integration process, small size, able to work for long hours, and stable operation.

● All parameters are set digitally, providing stable, intuitive, and accurate parameter adjustment.

● The welding adopts vertical spot welding with adjustable pressure depth.

● Pneumatic precision welding heads developed by CHEEBO feature precise pressure adjustment control.

● Digital LED display for more intuitive adjustment of equipment parameters, easy to learn and operate.

● Controlled by microcomputer technology, grid voltage control, and automatic tracking compensation.

● The portable lithium battery spot welding machine adopts an all-in-one design, saving space and easy to carry.

● The welding machine can pre-store multiple programs, which can be changed and recalled as needed.

● Compact structure, small size, high power, and industrial circuit design ensure a safe and reliable welding process.



Product introduction



This product is currently widely popular AC pulse spot welding machine, using microcomputer single-chip microcomputer control, stable and



reliable performance. Industrial grade welding equipment. It is used for power lithium-ion battery module welding, 3C lithium-ion battery pack



welding, nickel-metal hydride battery pack welding, hardware small parts welding, electronic and electrical parts welding, wire terminal welding,



stainless steel parts welding, metal jewelry, copper products, aluminum products, etc. At the same time, it is also suitable for product maintenance



and proofing.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 25KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



  1. Welding case



Battery Pack Assembly Equipment Spot Welding Machine For Lithium Ion Battery Pedal 0Battery Pack Assembly Equipment Spot Welding Machine For Lithium Ion Battery Pedal 1Battery Pack Assembly Equipment Spot Welding Machine For Lithium Ion Battery Pedal 2





Function Introduction



1. Pneumatic precision welding head

The left and right electrodes of the double point welding head are pressed down simultaneously, which is precise and adjustable. Flexible and rapid pressurization, with good pressure follow-up. High machining accuracy and low electrode inertia. The built-in pressure in place sensing device is connected to the welding controller to ensure that each welding pressure meets the requirements.



Battery Pack Assembly Equipment Spot Welding Machine For Lithium Ion Battery Pedal 3



2. Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.



Battery Pack Assembly Equipment Spot Welding Machine For Lithium Ion Battery Pedal 4

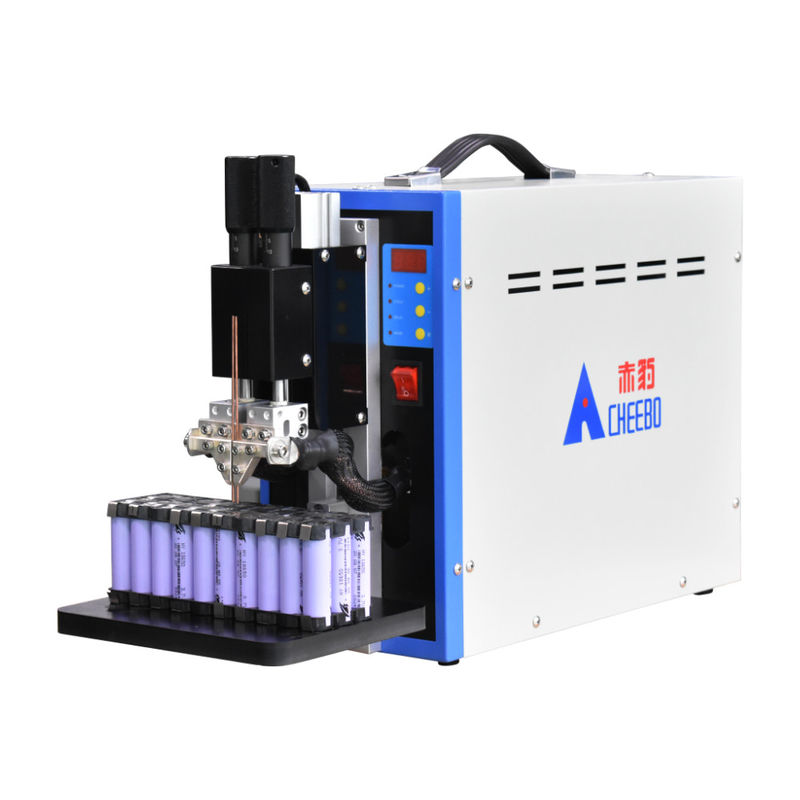

3. Operation panel

LED digital display. "+", "-" to adjust the data. "#" switch to adjust the data. Data adjustment is simple and convenient. One-click switch button.



Battery Pack Assembly Equipment Spot Welding Machine For Lithium Ion Battery Pedal 5



Debugging project
  1. Welding pressure: 1-5 kg/F
  2. Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters
  3. Air pressure regulation
  4. Adjustment of needle extension length
  5. Adjust the position under the table top
  6. Adjust the spacing between the left and right pins
