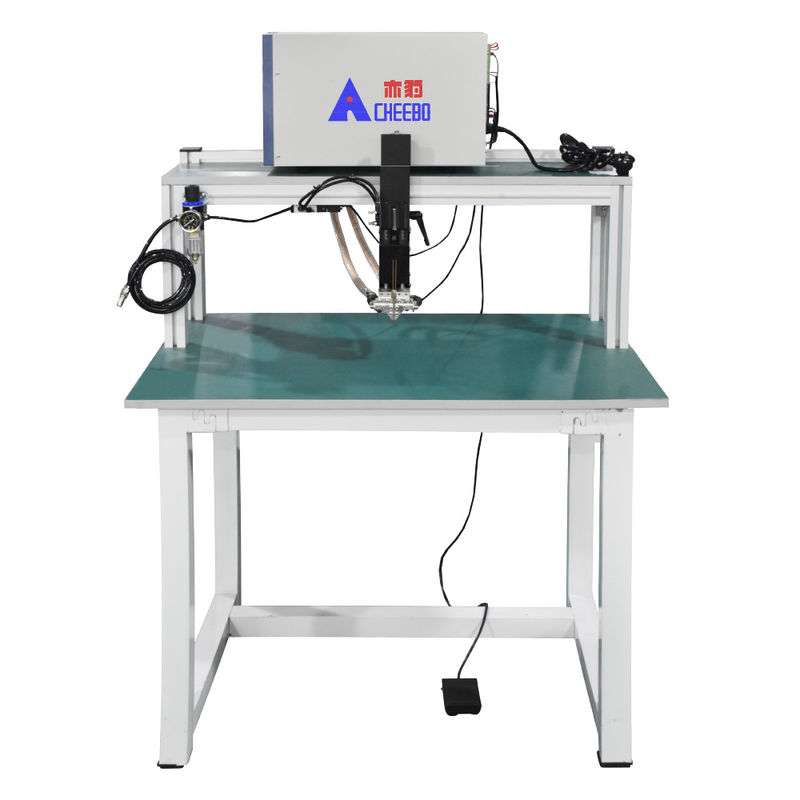

Lithium Battery Spot Welder Gantry Frame Pneumatic Precision 18650 Battery Spot Welding Machine

Lithium Battery Spot Welder Gantry Frame Pneumatic Precision 18650 Battery Spot Welding Machine

  • High Light

    18650 Battery Spot Welding Machine

    ,

    Pneumatic Precision Lithium Battery Spot Welder

    ,

    Gantry Frame Lithium Battery Spot Welder

  • Voltage
    220v
  • Usage
    Spot Welding,welding Battery,18650 Battery Pack Spot Welding
  • Condition
    NEW
  • Weight
    60kg
  • Dimensions
    600*900*1420mm
  • Max. Welding Thickness
    0.3mm
  • Product Name
    Transistor Pneumatic Lithium Battery Spot Welder
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    50 Set/Sets per Week

Lithium Battery Spot Welder Gantry Frame Pneumatic Precision 18650 Battery Spot Welding Machine

Lithium Battery Spot Welder Gantry Frame Pneumatic Precision 18650 Battery Spot Welding Machine




Equipment introduction



● The welding power control adopts a switch switching method, enabling miniaturized, efficient, and high-output welding.

● The welding current rises quickly, making it most suitable for ultra-precision welding.

● There are three types of control: ①constant current control, ②constant voltage control, and ③a combination of constant current and constant voltage control.

● The energy stored in the capacitor is utilized for welding, suitable for conditions with low power.

● Real-time dynamic detection of current, voltage, power, and resistance waveforms.

● The automatic welding current monitoring function effectively monitors the welding output current, and when the welding current exceeds the alarm value, welding will be promptly supplemented.

● Controlled by precision microcomputer technology, it can save multiple programs and change or call them at any time.

● With a proprietary OUTPUT ENERGY optimization algorithm, the output voltage and current conversion are reasonable, resulting in strong welding capability, firm welding joints, no need for re-welding, small sparks, and good welding quality.

● The industrial circuit design ensures a safe and reliable circuit.

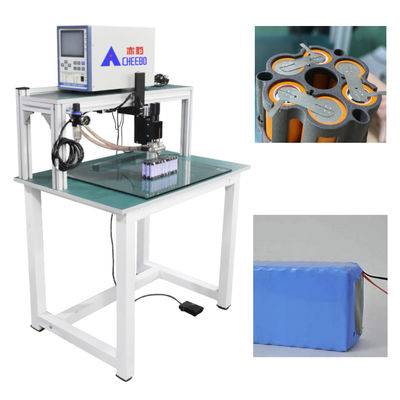

Application scope of the product



Power lithium-ion battery module, 3C lithium-ion battery pack, nickel-metal hydride battery pack, hardware small parts, electronic and electrical



parts, wire terminals, stainless steel parts, metal jewelry, copper products, aluminum products, etc. At the same time, it is also suitable for product



maintenance proofing and other work.





Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



1. Cylinder drive

The air source interface is connected to the pressure regulator to adjust the air source pressure and filter the water. The gas is sent to the solenoid valve, which controls the gas drive cylinder and drives the welding head.



Lithium Battery Spot Welder Gantry Frame Pneumatic Precision 18650 Battery Spot Welding Machine 0

2.Thickened tempered glass
High quality explosion-proof glass is used to effectively prevent the damage caused to the desktop during welding. At the same time, it can increase the fluency of welding and increase the welding efficiency.

Lithium Battery Spot Welder Gantry Frame Pneumatic Precision 18650 Battery Spot Welding Machine 1



3. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.

Lithium Battery Spot Welder Gantry Frame Pneumatic Precision 18650 Battery Spot Welding Machine 2



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
