Lithium Battery Spot Welder Single-Side High-Precision Module Spot Welder

Lithium Battery Spot Welder Single-Side High-Precision Module Spot Welder

Equipment introduction

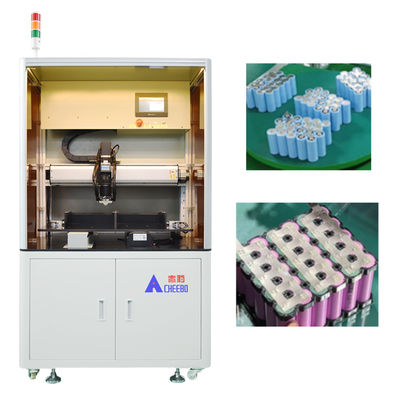

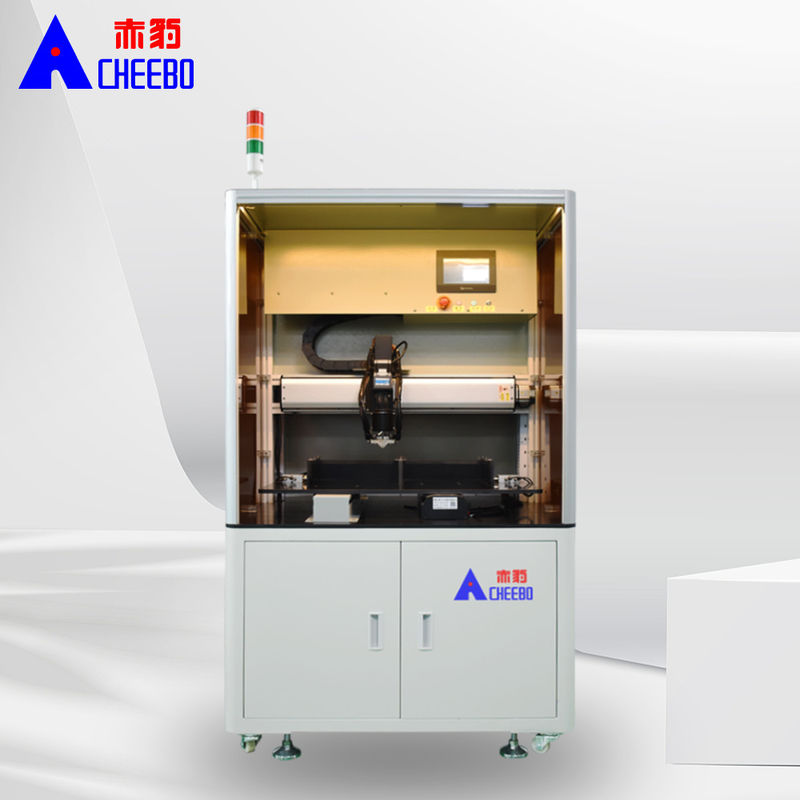

● Lithium battery spot welding machine with single-sided automatic welding, modular design, quiet, stable, and efficient.

● Enhanced design that can also be used for automatic welding of protective plates in various PACK schemes.

● The CBMO4-6040 lithium battery pack spot welding machine enables operation on both left and right platforms without interference between them, or it can operate on a single platform only.

● The equipment adopts Taiwan's silver guide rail module, which boasts high precision, low noise, smooth sliding, and durability.

● The welding direction can be adjusted according to the nickel slot position of the battery pack. The maximum rotation angle of the welding needle is 135° to avoid welding errors caused by the inability of the welding head angle to rotate.

● The lithium battery spot welding machine features an automatic alarm function, allowing for automatic zone welding and manual adjustment for single spot welding.

● Battery spot welding offers automatic and manual programming, enabling quick programming through CAD drawing and importing of spot welding paths. It is easy to learn and suitable for ordinary workers.

● High-definition LCD touch screen with a human-computer interaction interface for easy operation.

● Independently developed various automated intelligent systems facilitate device setup and operation, contributing to improved production efficiency.

● Cheebo Technology's lithium battery welding machine comes with functions such as energy switching, production counting, welding needle compensation, and manual debugging.

● Aluminum alloy structure with electrostatic powder spraying process, providing wear resistance, rust prevention, and anti-static properties.

● Imported acrylic shield plate for aesthetics and scientific visualization, enhancing production safety.


Technical specification


Production efficiency 3000PCS/H Welding source Transistor/multipulse (Optional)
Welding thickness 0.02-0.3MM Type of cooling Forced water circulation cooling
XY shaft welding stroke 400MM*600MM Mode of motion Automatic continuity
XY shaft welding accuracy 0.1MM Welding pressure 5KG/F
Electrode material Copper alumina Machine Dimensions 1680*1400*2000MM
Welding head rotation Yes Machine Weight 330KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery welding


Function Introduction


1. Hd touch screen

Real-time display of welding data, welding hole location. System parameter setting is simple and easy to learn.
Support manual programming, CCD mapping, import solder joint path to achieve fast programming.

Lithium Battery Spot Welder Single-Side High-Precision Module Spot Welder 0


2. Lead screw guide

WIHIN screw guide module, high precision, low noise, smooth sliding, durable.

Lithium Battery Spot Welder Single-Side High-Precision Module Spot Welder 1


3. Cooling system:

Water circulation heat dissipation, instantaneous large current welding, welding head always maintain constant temperature, effectively reduce the loss of welding needle, improve the welding effect.

Lithium Battery Spot Welder Single-Side High-Precision Module Spot Welder 2


Device action flow description


Cell/bracket/battery nickel piece loading fixture -- Place fixture to left platform induction position -- automatic spot welding of the device is


completed to send the fixture to the material retrieval position -- manual flip fixture -- Place the fixture to the right platform induction position --


automatic spot welding of the device is completed to send the material retrieval position -- remove the battery pack from the fixture -- for the next


production cycle (the platform can be put in when the left platform is working) The product, waiting for the platform welding to be completed, will


automatically transfer to the right platform welding. When welding the right platform, the left platform can replace the product, waiting for the right


platform to complete the welding, will automatically transfer to the left platform welding, in turn cycle)




Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.


Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.


Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.


Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.


Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
