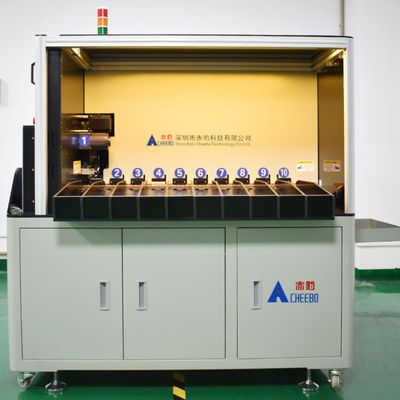

● The CBFXH-10 multifunctional cylindrical battery testing and sorting machine is an automatic sorting equipment suitable for voltage and internal resistance testing of cylindrical batteries of various specifications.
● Applicable battery models include 18650, 21700, 226650, 26700, 32650, 32700, and more.
● It can sort over 4,000 cylindrical finished batteries per hour.
● The operation interface is straightforward and equipped with a one-click generation function. Simply input the starting voltage, internal resistance, and corresponding intervals to complete the parameter settings.
● It features a manual parameter modification function, allowing fine-tuning or one-click modification of each gear.
● Adopting a 10+1 gear design with a total of 11 gears. There are 10 good product slots, and an independently set defective goods storage area is located at the backend.
● Utilizing a PLC+upper computer control mode, the upper computer records and displays sorting data in real-time, which can be saved and exported.
● Employing a Mitsubishi PLC, imported Panasonic servo control unit, and a four-probe design. The mechanical structure is designed to be simple and elegant, ensuring stable system performance.
● Incorporating a 19-inch integrated industrial-grade computer, it displays sorting data in real-time, providing simple and convenient human-computer interaction.
● Equipped with a fault information reminder function, fault sound and light alarms, enabling quick fault diagnosis.
● Constructed with an aluminum alloy structure and an electrostatic powder spraying process, it is scratch-resistant, rust-proof, and anti-static.
Place the battery into the silo - Test wheel runs to the testing position - Test cylinder action - Test needle presses onto the battery - Tester reads
data - Transfer to computer - Computer performs gear matching - Battery turns to sorting belt - Sorting belt runs to the specified gear - Gear
cylinder action pushes the battery out
1. Operating interface
Using 19 inch touch screen integrated industrial computer, i3 processor, processing data faster. Setting the gear parameters is simple and quick. 19 "large screen real-time display of sorting data, output, each cell test parameters accurate record, sorting data can be exported.
2. Loading mechanism
Humanized design, easy to fill the whole box. Large container, one time can put 400PCS18650 cells.
3.Baffleless design
No baffle design, smooth operation, no lag.The sorting state of the cell at the arrival position is clearly visible.
| 1. Battery charging spout | 2. Battery type wave wheel replacement area |
| 3. 4 Probe head design | 4. Integrated industrial computer touch screen |
| 5. Flexible belt transmission | 6. 10+1 channel |
| 7. Panasonic servo motor |
Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.
Q: What's your minimum order quantity?
A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.
Q: How does your factory do in terms of quality control?
A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
Q: How can I do if the machine goes wrong?
A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
