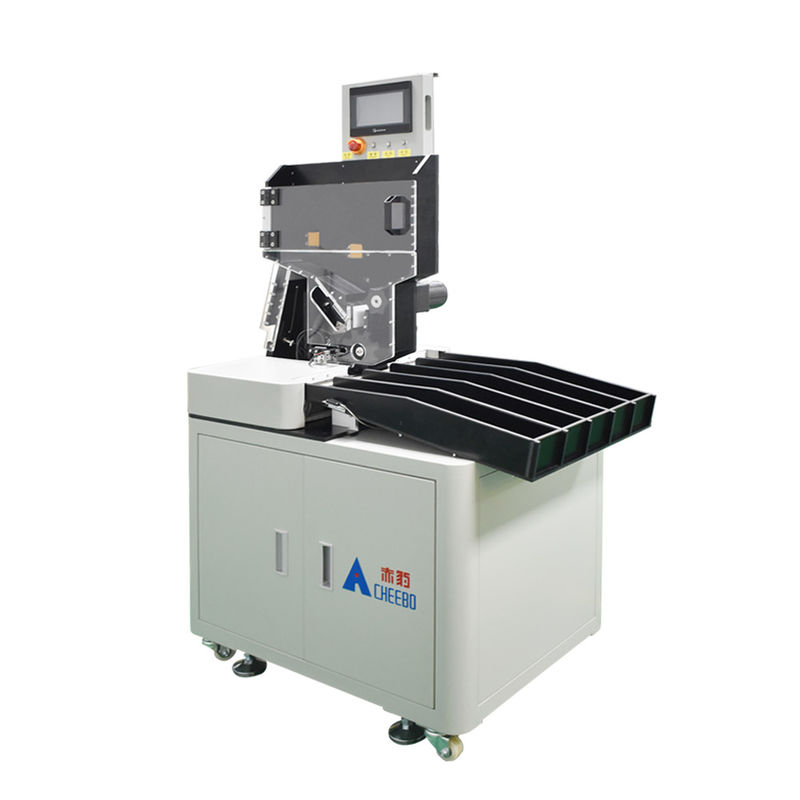

Battery Cell Sorting Machine 18650 Automatic Comprehensive Cylindrical Cell Five-Speed Sorting Machine

Battery Cell Sorting Machine 18650 Automatic Comprehensive Cylindrical Cell Five-Speed Sorting Machine

  • High Light

    Cylindrical Battery Cell Sorting Machine

    ,

    Automatic Battery Cell Sorting Machine

    ,

    Five-Speed Battery Cell Sorting Machine

  • Weight
    150KG
  • Voltage Accuracy
    0.1%
  • Product Name
    5 Gear Cell Sorting Machine
  • Size
    1000*600*1650mm
  • Internal Resistance Accuracy
    0.5%
  • Application Scenario
    Testing And Sorting Of Voltage And Internal Resistance Of A Large Number Of Cells
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFXH-05
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    30 Set/Sets per Week

Battery Cell Sorting Machine 18650 Automatic Comprehensive Cylindrical Cell Five-Speed Sorting Machine

Battery Cell Sorting Machine 18650 Automatic Comprehensive Cylindrical Cell Five-Speed Sorting Machine


Equipment introduction



● Mitsubishi PLC + imported Panasonic servo control unit + four-probe design, high-end configuration, stable performance, long service life, and low failure rate.

● With a high-definition touch screen computer, human-computer interaction is simple and convenient.

● Reserved interface for connecting to the paper machine, which allows direct connection to the paper machine, saving labor costs.

● PLC + host computer control mode, with the host computer displaying and recording battery sorting data in real time.

● Fault information reminder function, including audible and visual alarms for quick fault diagnosis.

● Features manual parameter modification, allowing fine-tuning of each gear or adjustment using the one-key modification function.

● The slanted design of the sorting gear and the material opening facilitate material collection and improve production efficiency.

● Aluminum alloy structure with electrostatic spraying process, making it scratch-resistant, rust-proof, and anti-static.

● This battery sorting machine is suitable for automatic sorting equipment used for testing the voltage and internal resistance of cylindrical batteries of various specifications.

● A variety of battery types are available: 18650, 21700, 26650, 26700, 326700, 32700.

● Can sort more than 4,000 cylindrical batteries per hour.

● The operation interface is simple, with a one-key generation function, only requiring the initial voltage resistance and the corresponding interval to complete the parameter setting.



Internal resistance tester optional



Tester Specifications and models
Brand Model Sorting accuracy/Resolution
HLOK 3561

Voltage:±3 dgt

Internal resistance:±5 dgt

HOPETECH HP3561

Voltage:±0.3% rdg

Internal resistance:±0.05% rdg

HK3561

Voltage:±0.3% rdg

Internal resistance:±0.05% rdg



Technical specification



Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 4+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1600*600*1650MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting



Function Introduction



1.Operating interface

Using 7 inch touch screen, the gear parameter setting is simple and quick.Display sorting data in real time.



Battery Cell Sorting Machine 18650 Automatic Comprehensive Cylindrical Cell Five-Speed Sorting Machine 0

2. Inspection and testing organization

4 Probe design, positive and negative electrode detection at the same time, with brand internal resistance meter, more accurate test data.
According to the test parameters, the upper computer analyzes the data and sorts the cells to the designated channel.

Battery Cell Sorting Machine 18650 Automatic Comprehensive Cylindrical Cell Five-Speed Sorting Machine 1

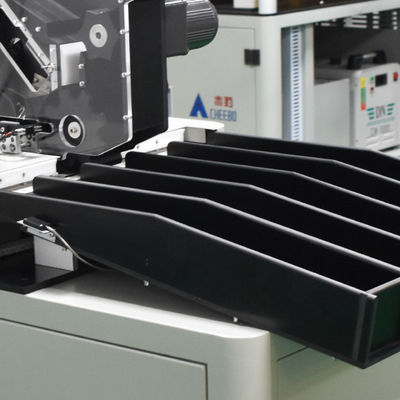

3. Baffleless design

With no baffle design, smooth operation without lag. The sorting state of the cell at the arrival position is clearly visible. Flexible belt design



Battery Cell Sorting Machine 18650 Automatic Comprehensive Cylindrical Cell Five-Speed Sorting Machine 2



Device action flow description



The battery cell is put into the bin -- the test wheel runs to the test position -- the test cylinder moves -- the test needle presses to the battery cell --



the tester reads the data -- transfers to the computer -- the computer matches the gear -- the battery cell is transferred to the sorting belt --



the sorting belt runs to the specified gear -- the gear cylinder moves to push the battery cell out
