Portable Battery Spot Welder Pneumatic Precision Welding Cell

Portable Battery Spot Welder Pneumatic Precision Welding Cell

  • High Light

    Welding Cell Portable Battery Spot Welder

    ,

    Precision Portable Battery Spot Welder

    ,

    Pneumatic Portable Battery Spot Welder

  • Voltage
    220v
  • Condition
    New
  • Type Of Drive
    Pneumatic
  • Dimensions
    640mm*200mm*360mm
  • Power Types
    Multipulse
  • Product Name
    Portable Lithium Battery Spot Welder
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram,
  • Supply Ability
    100 Set/Sets per Week

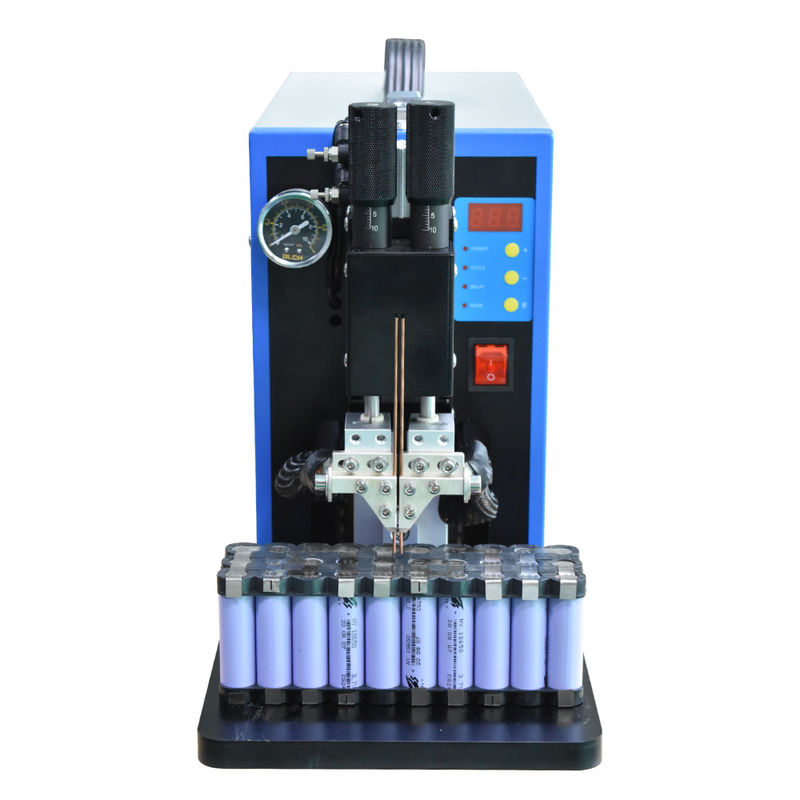

Portable Battery Spot Welder Pneumatic Precision Welding Cell

Portable Battery Spot Welder Pneumatic Precision Welding Cell


Equipment introduction



● Integrated design, space-saving, easy to carry.
●Independently developed a precision sonotrode with precise pressure regulation control.
●Independent soldering pin, spring buffer design, precise adjustment of welding pressure
●Intelligent chip precision control, imported control chip, microsecond level corresponding chip integration process, small size, can work for a long time, stable operation.
●Controlled by microcomputer, it can realize single-pulse, multi-pulse and double-pulse welding methods.
●Precision sonotroder: double spot sonotrod, the left and right electrodes are pressed at the same time, precise and adjustable.
●Compression is flexible and rapid, and the effect of pressure follow-up is good.The machining accuracy is high and the electrode inertia is low.
●The built-in in-place pressure sensing device is connected with the welding controller to ensure that the welding pressure meets the requirements.
●Proprietary output energy optimization algorithm, reasonable conversion of output voltage and output current, strong welding ability, firm weld, no false welding, small cremation scale, good surface quality.
●Imported alumina copper electrode, pure brazing cable, pure copper electrode clamp and other high-quality accessories make the machine durable.
●The sonotrode platform can be adjusted up and down, and various specifications of batteries can be welded.
●Microcomputer technology control, grid voltage control, automatic tracking and compensation.
●All parameters are set digitally, and the parameter adjustment is stable, intuitive and accurate.
●The vertical spot welding method is spot welding, and the pressure depth is manually controlled.
● Digital LED display, equipment parameter adjustment is more intuitive, easy to learn and operate.
● The welding machine can pre-store multiple programs, which can be changed and recalled freely.
●Compact structure, small size, high power, large-scale industrial circuit design, safe and reliable welding process.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



1. Pressure regulation

The pressure of the sonotrode is adjustable between 1-10KG to ensure good welding results of different thicknesses and materials.



Portable Battery Spot Welder Pneumatic Precision Welding Cell 0



2. Welding table

The welding workbench can be adjusted up and down, and the loose screws can be adjusted, which is simple and convenient, and is suitable for battery welding of various specifications.

Portable Battery Spot Welder Pneumatic Precision Welding Cell 1

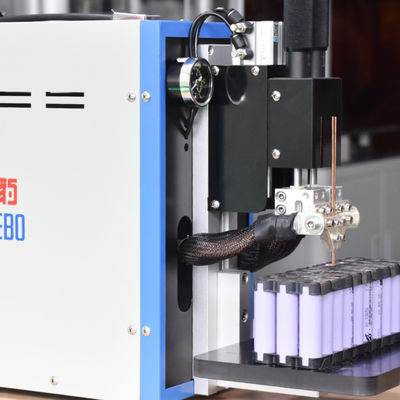

3. Pneumatic precision welding head

The left and right electrodes of the double spot welding head are pressed down at the same time, which is accurately adjustable. Flexible and rapid pressure, good pressure follow-up. High machining precision, small electrode inertia. The built-in pressure induction device is connected with the welding controller to ensure that the welding pressure meets the requirements.

Portable Battery Spot Welder Pneumatic Precision Welding Cell 2



Matters need attention



1. Polish the welding needle regularly.


2. Regularly check whether there is loosening in each part.


3. Do not disassemble and debug the equipment at will.


4. Do not disassemble circuit components without permission.


5. Periodically clean welding dust from all parts of the device.


6. Check the lubrication degree of each moving part every month.


7. Please read the instructions carefully before operation and operate according to the specifications of the instructions.



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
