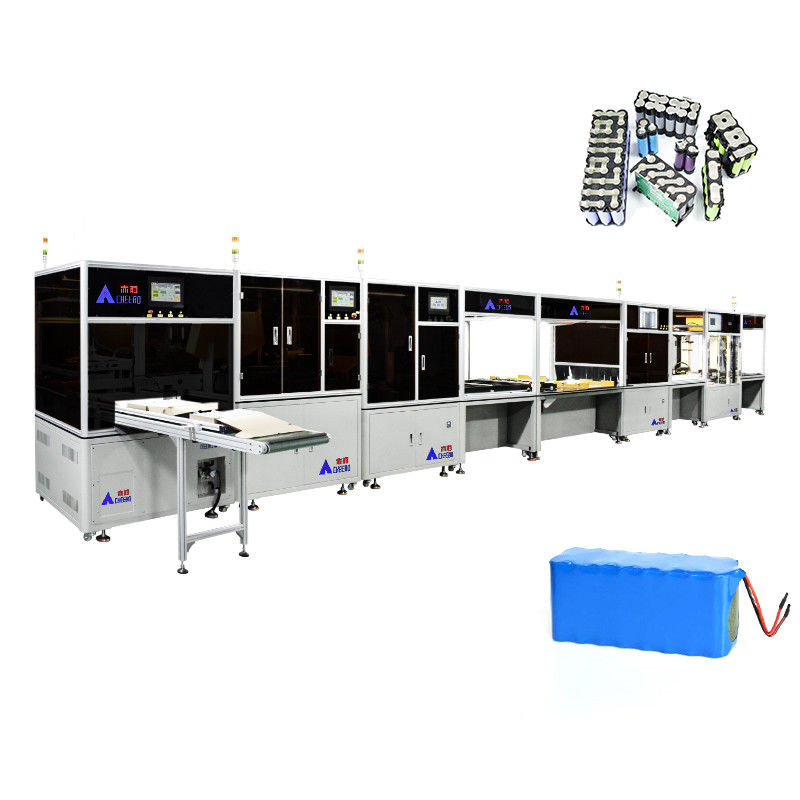

1, suitable for the battery: the whole line is suitable for 18650 21650 21700 26650 32650 32700 cylindrical steel shell battery (CCD and double-sided 8-axis automatic spot welding machine part can be used for 33140 resistance welding battery).
2, battery whole box feeding saves labor and time.
3, the production line body integral design, battery charging mechanism forward design, easy operation, overall beautiful appearance.
4, the sorting cell discharge directly to the installation and release of the cell operator station to save manpower and time.
5, human tooling core workbench and wire body fusion design is convenient to operate.
6, CCD before and after the automatic induction in and out of work, normal work automatic intervention, found the product abnormal manual processing.
7, eight-axis double-sided automatic spot welding machine spot welding different directions slotted battery can spot welding.
8, spot welding machine placed on the production line belt line head, so that the head of the production line, so that the production line line into one.
9, fluent fixture reflux mechanism design, easy to operate and use, does not take up space. 10, can be customized production according to demand
| Compatible cell models | 18650/21700/32700/26650/32650, etc Cylindrical cell |
| Dimensions | Dimensions |
| Line color | Ivory white(Customizable) |
| Total power | 220V 50/60Hz 6KW |
| Use air pressure | 0.5-0.8Mpa |
| Production efficiency | 3000PCS/H(Automatic part) |
| CCD lens pixel | 2000W |
| CCD detection field | 380*500MM(Max) |
| Spot welder welding stroke | 500*360MM(Max) |
| Cell sorting channels | 6+1 |
| Nickel sheet welding thickness | 0.02-0.3MM |
| Number of stickers (Each time) | 4PCS(Depends on cell type) |
| User interface | Touch screen |
| Manpower required | 3-5 people |
Power tool battery pack, energy storage battery pack, electric vehicle battery pack (including but not limited to)
Q: I don't know which one is right for me?
A: Please tell us the following information
1) What type of cell do you want to assemble? What is its model number? 2) Capacity and volume of battery pack? 3) How many battery packs should be produced per day
Q: How do I install and run the machine?
A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed
training videos and user manuals randomly. 95% of customers can teach themselves.
Our products are sold all over the world, you can rest assured.
