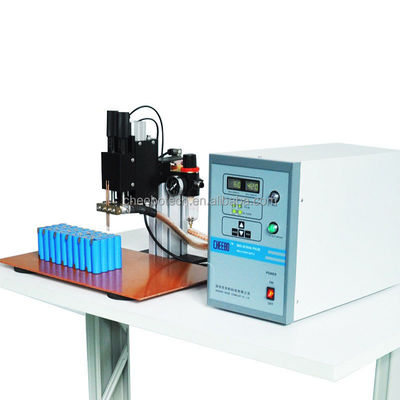

Double Point Welding Battery Tab Spot Welding Machine Manual Spot Weld

Double Point Welding Battery Tab Spot Welding Machine Manual Spot Weld

  • High Light

    Welding Power Supply With Pedal

    ,

    Double Point Spot Welding Head

    ,

    Spot Welding Head Battery Use

  • Applicable Industries
    Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Welding Equipment, New Energy
  • Showroom Location
    China
  • Usage
    Spot Welding
  • Voltage
    220v
  • Warranty
    1 Year
  • Weight (KG)
    30 KG
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQT-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram

Double Point Welding Battery Tab Spot Welding Machine Manual Spot Weld

Double Point Welding Battery Tab Spot Welding Machine Manual Spot Weld



Equipment introduction

● This product is a widely popular AC pulse spot welder with microcomputer single-chip computer control and stable and reliable performance. Industrial grade welding equipment. It is used for power lithium-ion battery module welding, 3C lithium-ion battery pack welding, nickel metal hydride battery pack welding, hardware welding, electrical and electronic parts welding, wire terminal welding, stainless steel welding, metal jewelry welding, copper products welding, aluminum products welding. Also, it is suitable for product maintenance proofing and other work.



● Adopting single-chip computer control, it can realize single pulse, multi-pulse and double-pulse welding.



● The lithium battery welder adopts proprietary output energy optimization algorithm, with reasonable output voltage and output current conversion, strong welding capacity, firm welding joints, no miswelding, low ignition and excellent surface quality.



● Independent welding pin, spring buffer design, precise adjustment of welding pressure.



● The welding head platform can be adjusted up and down, which can weld various sizes of batteries.



● Adopt CHEEBO self-developed pneumatic precision welding head with precise pressure adjustment control.



● Digital LED display, the equipment parameters adjustment is more intuitive and easy to learn and operate.



● Microcomputer technology control, grid voltage control, automatic tracking compensation.



● Portable lithium battery spot welder adopts integrated design, space-saving and easy to carry.



● The welder can pre-store several programs, which can be changed and called freely.



● Imported high-quality alumina copper electrode, pure copper welding cable, pure copper electrode clamp and other accessories make the machine durable.



● Intelligent chip precision control, imported control chip, microsecond corresponding chip integration process, small size, can work for a long time, and stable operation.



● All parameters are digitally set, and the parameter adjustment is stable, intuitive and accurate.



● Adopt the vertical spot welding method for welding, and the pressure depth can be adjusted.



● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding

  1. Welding case



Double Point Welding Battery Tab Spot Welding Machine Manual Spot Weld 0 Double Point Welding Battery Tab Spot Welding Machine Manual Spot Weld 1 Double Point Welding Battery Tab Spot Welding Machine Manual Spot Weld 2



Debugging project
  1.  Welding pressure: 1-5 kg/F
  2.  Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters
  3.  Air pressure regulation
  4.  Adjustment of needle extension length
  5.  Adjust the position under the table top
  6.  Adjust the spacing between the left and right pins
Announcements
  1.  Polish the welding needle regularly.
  2.  Regularly check whether there is loosening in each part. 3. Do not disassemble and debug the equipment at will.
  3.  Do not disassemble circuit components without permission.
  4.  Periodically clean welding dust from all parts of the device.
  5.  Check the lubrication degree of each moving part every month
  6.  Please read the instructions carefully before operation and operate according to the specifications of the instructions.
