Battery Cell Sorting Machine 0.6CFM

Battery Cell Sorting Machine 0.6CFM

  • High Light

    Battery Cell Sorting Machine 0.6CFM

    ,

    Belt Transfer Battery Cell Sorting Machine

    ,

    Automatic Labeling Machine 0.6CFM

  • Number Of Gears
    5
  • Applicable Specifications
    65-70 (length)
  • Air Source Specification
    0.6CFM
  • Transmission Mode
    Belt Transfer
  • Dimension(L*W*H)
    1000*600*1650(mm)
  • Product Name
    5 Gear Cell Sorting Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFXH-05
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Internal sealing mold, external wooden box
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

Battery Cell Sorting Machine 0.6CFM

5 Channel Voltage Internal Resistance Test Battery Sorter Battery Equipment



Equipment introduction

● This type of cell sorting machine is suitable for automatic sorting equipment of voltage and internal resistance test of cylindrical cell of various specifications.


● The suitable batteries model: 18650/21700/26650/26700/32650/32700 models.


● The number of finished cylindrical cells is more than 4000 units per hour.


● Easy to operate interface, with one-key generation function, only need the initial voltage resistance, input the corresponding interval, you can complete the parameter setting.


● Using PLC+ host computer control mode, host computer records and displays sorting data in real time.


● Fault information reminder function, fault sound and light alarm, can quickly diagnose faults.


● It comes with manual parameter modification function, which can be fine-tuned for each gear, or adjusted using the one-click modification function.


● Mitsubishi PLC+ imported Panasonic servo control unit +4 probe design, high-end configuration, stable performance, long service life and low failure rate.


● Using HD touch screen computer, human-computer interaction is simple and convenient.


Reserve the interface to connect to the paper machine, which can be used to connect to the paper machine, saving labor costs.


● Sorting gear slope design, open gate, easy to receive materials, improve production efficiency.


● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, anti-static.



Technical specification
Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 4+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1600*600*1650MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting



Function Introduction

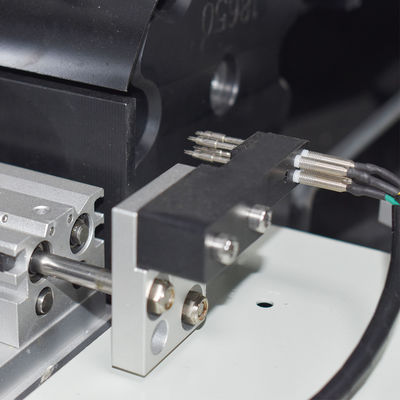

 1. Inspection and testing organization

4 Probe design, positive and negative electrode detection at the same time, with brand internal resistance meter, more accurate test data.
According to the test parameters, the upper computer analyzes the data and sorts the cells to the designated channel.

Battery Cell Sorting Machine 0.6CFM 0



 2. Italic design

The ten grades all adopt italic design, open gate, simple and convenient material receiving, saving time and labor, and effectively improving production efficiency.

Battery Cell Sorting Machine 0.6CFM 1



 3. Loading mechanism

Humanized design, easy to fill the whole box. Large container ,  one time can put 200PCS18650 battery cells.

Battery Cell Sorting Machine 0.6CFM 2



Device action flow description



The battery cell is put into the bin -- the test wheel runs to the test position -- the test cylinder moves -- the test needle presses to the battery cell --



the tester reads the data -- transfers to the computer -- the computer matches the gear -- the battery cell is transferred to the sorting belt -- the



sorting belt runs to the specified gear -- the gear cylinder moves to push the battery cell out



Debugging project
  1.  Sorting data Settings
  2.  The sorting template is generated
  3.  Idle times setting
  4.  Compensation value setting
  5.  Monitor voltage internal resistance
  6.  Test pin change
FAQ



Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
