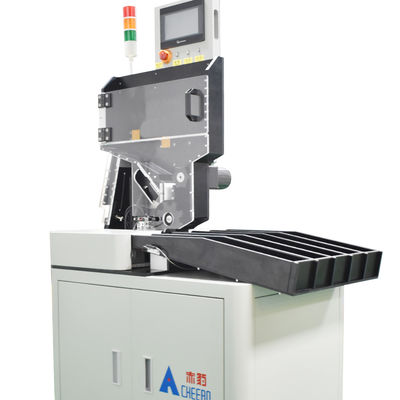

18650 High Efficiency Lithium Battery Cell Sorting Machine High Precision

18650 High Efficiency Lithium Battery Cell Sorting Machine High Precision

  • High Light

    High Precision Lithium Cell Sorting Machine

    ,

    High Precision Battery Sorting Machine

    ,

    High Efficiency Battery Sorting Machine

  • Voltage Accuracy
    0.1%
  • Internal Resistance Accuracy
    0.5%
  • Size
    L100CM*W60CM*H165CM
  • Weight
    150KG
  • Product Name
    5 Gear Cell Sorting Machine
  • Application Scenario
    Testing And Sorting Of Voltage And Internal Resistance Of A Large Number Of Cells
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFXH-05
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

18650 High Efficiency Lithium Battery Cell Sorting Machine High Precision

18650 High Efficiency Lithium Battery Cell Sorting Machine High Precision


Equipment introduction



● Mitsubishi PLC + imported Panasonic servo control unit + 4 probe design, high-end configuration, stable performance, long service life and low failure rate.


● Using high-definition touch screen computer, human-computer interaction is simple and convenient.


● Reserve the interface to connect to the paper machine, which can be directly connected to the paper machine, saving labor costs.


● PLC+host computer control mode, the host computer displays and records cell sorting data in real time.


● Fault information reminder function, fault sound and light alarm, fast fault diagnosis.


● It has the function of manual parameter modification, which can fine-tune each gear or use the one-key modification function to adjust.


● The slope design of the sorting gear and the material opening facilitate material collection and improve production efficiency.


● Aluminum alloy structure, electrostatic spraying process, anti-scratch, anti-rust, anti-static.


● This battery sorting machine is suitable for automatic sorting equipment for testing the voltage internal resistance of cylindrical batteries of various specifications.


● A variety of battery types are available: 18650,  21700, 26650, 26650, 26700, 326700, 32700.


● Can sorting more than 4,000 cylindrical batteries per hour.


● The operation interface is simple, with a one-key generation function, only the initial voltage resistance is required, and the corresponding interval is input to complete the parameter setting.



Internal resistance tester optional



Tester Specifications and models
Brand Model Sorting accuracy/Resolution
HLOK 3561

Voltage:±3 dgt

Internal resistance:±5 dgt

HOPETECH HP3561

Voltage:±0.3% rdg

Internal resistance:±0.05% rdg

HK3561

Voltage:±0.3% rdg

Internal resistance:±0.05% rdg



Technical specification



Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 4+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1600*600*1650MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting



Function Introduction



 1. Inspection and testing organization

4 Probe design, positive and negative electrode detection at the same time, with brand internal resistance meter, more accurate test data.
According to the test parameters, the upper computer analyzes the data and sorts the cells to the designated channel.





18650 High Efficiency Lithium Battery Cell Sorting Machine High Precision 0



 2. Operating interface

Using 7 inch touch screen, the gear parameter setting is simple and quick.Display sorting data in real time.



18650 High Efficiency Lithium Battery Cell Sorting Machine High Precision 1

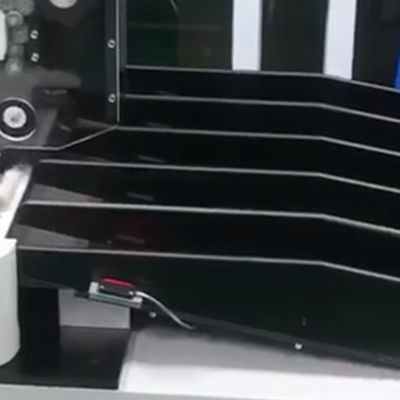

 2. Baffleless design

With no baffle design, smooth operation without lag. The sorting state of the cell at the arrival position is clearly visible. Flexible belt design



18650 High Efficiency Lithium Battery Cell Sorting Machine High Precision 2



Device action flow description



The battery cell is put into the bin -- the test wheel runs to the test position -- the test cylinder moves -- the test needle presses to the battery cell --



the tester reads the data -- transfers to the computer -- the computer matches the gear -- the battery cell is transferred to the sorting belt --



the sorting belt runs to the specified gear -- the gear cylinder moves to push the battery cell out
