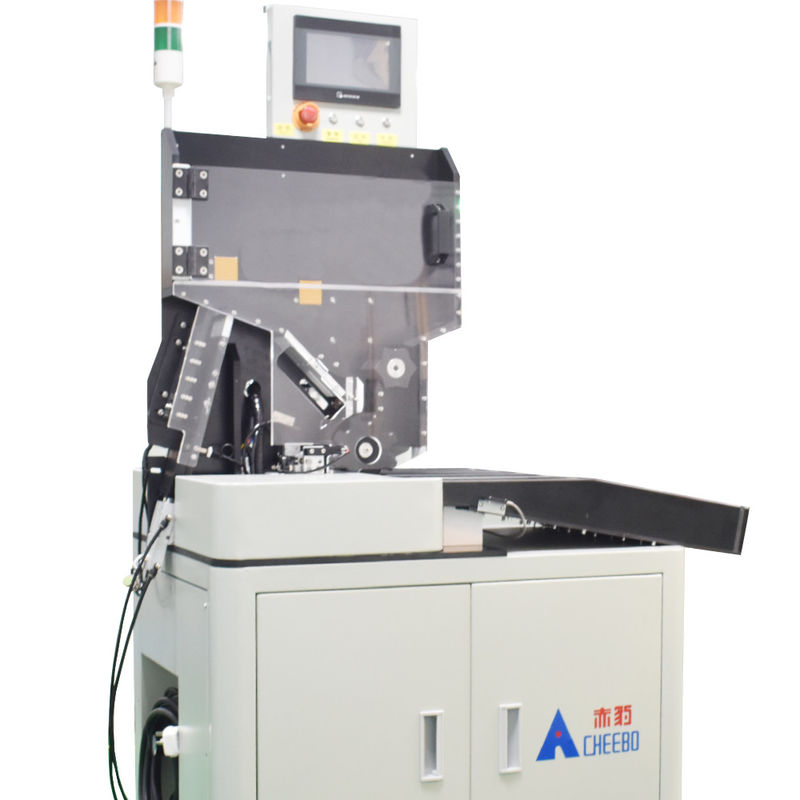

Automatic Lithium Battery Cell Sorting Machine 21700 Cylindrical Universal Type

Automatic Lithium Battery Cell Sorting Machine 21700 Cylindrical Universal Type

  • High Light

    Universal Type Battery Cell Sorting Machine

    ,

    21700 Battery Cell Sorting Machine

    ,

    21700 Lithium Cell Sorting Machine

  • Size
    100cm*60cm*165cm
  • Driving Mode
    Pneumatic
  • Sorting Gear
    5
  • Connection System
    Adhesive Insulated Paper Machine Can Be Connected
  • Control System
    PLC
  • Product Name
    5 Gear Cell Sorting Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFXH-05
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

Automatic Lithium Battery Cell Sorting Machine 21700 Cylindrical Universal Type

Automatic Battery Cell Sorting Machine 18650 26650 Cylindrical Universal type


Equipment introduction



● This battery sorter is suitable for automatic sorting equipment for testing the voltage internal resistance of cylindrical batteries of various specifications.


● Various battery types can be used: 18650/21700/26650/26700/32650/32700 model.


● CBFXH-05 lithium battery separator can separate more than 4,000 cylindrical formed batteries per hour.


● Easy-to-operate interface, with one-key generation function, only need the initial voltage resistance, input the corresponding interval, and the parameter setting can be completed.


● Mitsubishi PLC+ imported Panasonic servo control unit +4 probes design, high-end configuration, stable performance, long service life and low failure rate.


● Using high-definition touch screen computer, the human-computer interaction is simple and convenient.


● The interface connected with the paper machine is reserved, which can be directly connected with the paper machine, saving labor costs.



● PLC+ PC control mode, real-time display by PC, recording cell sorting data.


● Fault information reminding function, fault sound and light alarm, which can quickly diagnose faults.


● It has the function of manual parameter modification, which can fine-tune each gear, and can also be adjusted by one-button modification function.


● Slope design of sorting gear, material opening, convenient material collection and improved production efficiency.


● Aluminum alloy structure, electrostatic spraying process, scratch resistance, rust prevention and antistatic.



Technical specification



Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 4+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1600*600*1650MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting



Equipment debugging project
  1.  Sorting data Settings
  2.  The sorting template is generated
  3.  Idle times setting
  4.  Compensation value setting
  5.  Monitor voltage internal resistance
  6.  Test pin change
Device action flow description



The battery cell is put into the bin -- the test wheel runs to the test position -- the test cylinder moves -- the test needle presses to the battery cell --



the tester reads the data -- transfers to the computer -- the computer matches the gear -- the battery cell is transferred to the sorting belt --



the sorting belt runs to the specified gear -- the gear cylinder moves to push the battery cell out



Function Introduction



1.On-line mechanism

The positive pole highland barley paper machine can be connected and pasted according to the production process needs. Save costs and meet diversified production.



Automatic Lithium Battery Cell Sorting Machine 21700 Cylindrical Universal Type 0



2.Inspection and testing organization

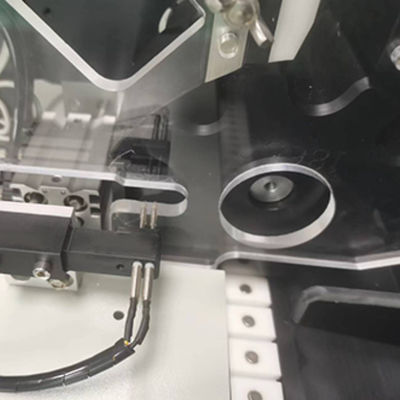

4 Probe design, positive and negative electrode detection at the same time, with brand internal resistance meter, more accurate test data.
According to the test parameters, the upper computer analyzes the data and sorts the cells to the designated channel.



Automatic Lithium Battery Cell Sorting Machine 21700 Cylindrical Universal Type 1



3.Gear italic design
5 speed italic design, open gate receiving is simple and convenient, saving time and labor, effectively improve production efficiency.



Automatic Lithium Battery Cell Sorting Machine 21700 Cylindrical Universal Type 2


Internal resistance tester optional



Tester Specifications and models
Brand Model Sorting accuracy/Resolution
HLOK 3561

Voltage:±3 dgt

Internal resistance:±5 dgt

HOPETECH HP3561

Voltage:±0.3% rdg

Internal resistance:±0.05% rdg

HK3561

Voltage:±0.3% rdg

Internal resistance:±0.05% rdg



FAQ



Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
