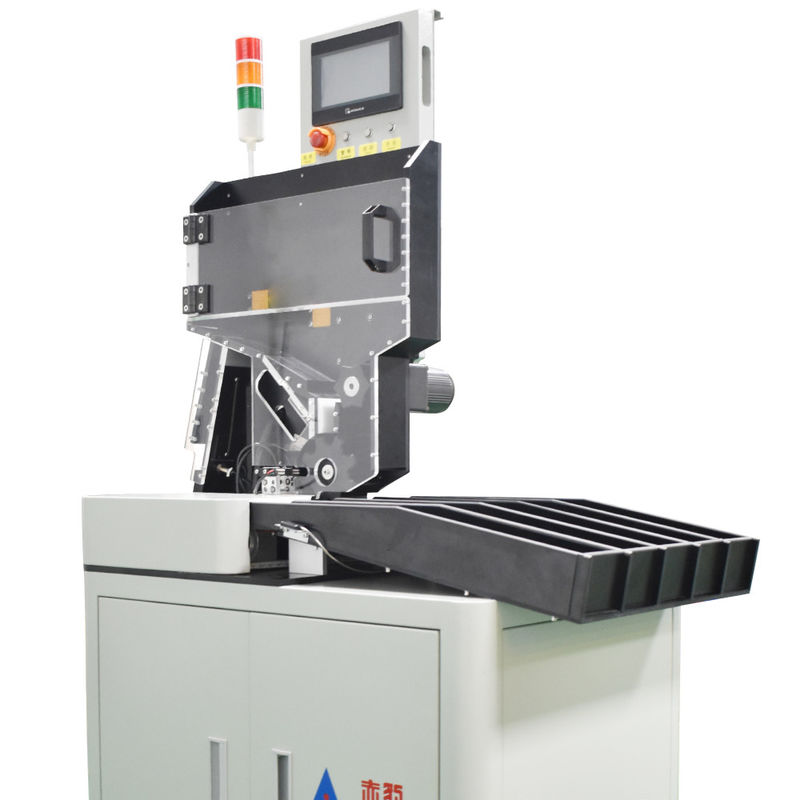

Battery Cell Sorting Machine Single Cell Internal Resistance Test Sorting

Battery Cell Sorting Machine Single Cell Internal Resistance Test Sorting

  • High Light

    Cell Sorting Battery Pack Testing Machine

    ,

    Lithium Battery Testing Machine 1.5KW

    ,

    Cell Sorting Lithium Battery Testing Machine

  • Power
    1.5KW
  • Test Position
    Positive And Negative
  • Air Source Pressure
    0.5-0.8MPa
  • Display System
    Touch Screen
  • Operation Mode
    Automatic
  • Product Name
    Battery Cell Sorting Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFXH-05
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

Battery Cell Sorting Machine Single Cell Internal Resistance Test Sorting

Battery Cell Sorting Machine Single Cell Internal Resistance Test Sorting


Equipment introduction



● This battery sorting machine is suitable for the automatic sorting equipment of the cylindrical battery voltage internal resistance test of various

specifications.



● A variety of battery types can be used: 18650 / 21700 / 26650 / 26700 / 32650 / 32700 models.



● The CBFXH-05 lithium battery separator can complete the separation of more than 4,000 cylindrical finished batteries per hour.



● Easy to operate the interface, with a one-key generation function, only need the initial voltage resistance, input the corresponding interval,

to complete the parameter setting.



● Mitsubishi PLC + imported Panasonic servo control unit + 4 probe design, high-end configuration, stable performance, long service life,

low failure rate.



● Using hd touch screen computer, human-computer interaction is simple and convenient.



● Reserved interface connected with the paper machine, can be directly connected with the paper machine, saving labor costs.



● PLC + upper computer control mode, upper computer real-time display, recording the cell sorting data.



● Fault information reminder function, fault sound and light alarm, can quickly diagnose the fault.



● Has the function of manual modification of parameters, which can fine-tune each gear, or adjust with the one-click modification function.



● Classification gear slope design, material opening, convenient material collection, improve production efficiency.



● Aluminum alloy structure, electrostatic spraying process, scratch resistance, rust prevention, anti-static electricity.



Internal resistance tester optional



Tester Specifications and models
Brand Model Sorting accuracy/Resolution
HLOK 3561

Voltage:±3 dgt

Internal resistance:±5 dgt

HOPETECH HP3561

Voltage:±0.3% rdg

Internal resistance:±0.05% rdg

HK3561

Voltage:±0.3% rdg

Internal resistance:±0.05% rdg



Technical specification



Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 4+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1600*600*1650MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting




Function Introduction



1.Operating interface

Using 7 inch touch screen, the gear parameter setting is simple and quick.Display sorting data in real time.



Battery Cell Sorting Machine Single Cell Internal Resistance Test Sorting 0

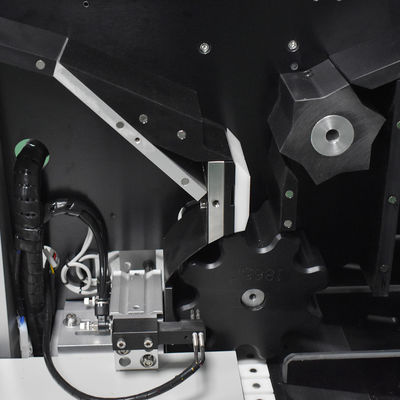

2.Baffleless design

With no baffle design, smooth operation without lag. The sorting state of the cell at the arrival position is clearly visible. Flexible belt design



Battery Cell Sorting Machine Single Cell Internal Resistance Test Sorting 1



3.On-line mechanism

The positive pole highland barley paper machine can be connected and pasted according to the production process needs. Save costs and meet diversified production.



Battery Cell Sorting Machine Single Cell Internal Resistance Test Sorting 2
