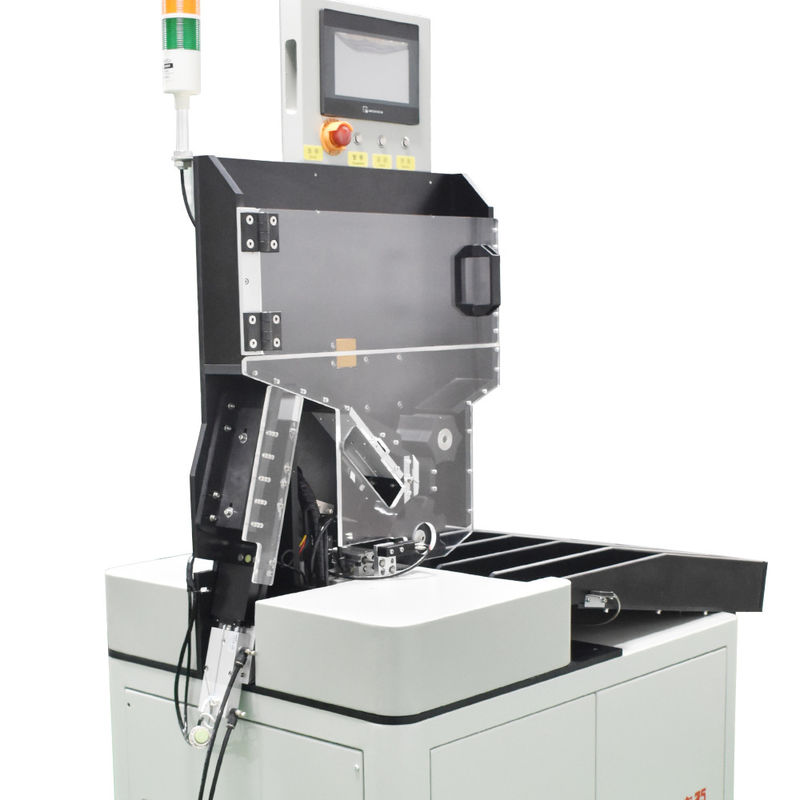

Equipment introduction


● This battery sorting machine is suitable for automatic sorting equipment for cylindrical battery voltage internal resistance test of various specifications.

● Multiple battery types can be used: 18650/21700/26650/26700/32650/32700 models.

● CBFXH-05 lithium battery separator can complete the separation of more than 4,000 cylindrical products batteries per hour.

● Easy-to-operate interface, with one-key generation function, only need the initial voltage resistance, input the corresponding interval, you can complete the parameter setting.

● Mitsubishi PLC + imported Panasonic servo control unit + 4 probe design, high-end configuration, stable performance, long service life, low failure rate.

● Using high-definition touch screen computer, human-computer interaction is simple and convenient.

● Reserved interface with the paper machine, can be directly connected with the paper machine, saving labor costs.


●PLC+ host computer control mode, real-time display of upper computer, record cell sorting data.

● Fault information reminder function, fault sound and light alarm, can quickly diagnose the fault.

● With manual parameter modification function, you can fine-tune each gear, or you can use the one-key modification function to adjust.

● Sorting gear ramp design, cutting port, convenient to receive materials, improve production efficiency.

● Aluminum alloy structure, electrostatic spraying process, scratch resistance, rust prevention, anti-static.


Equipment debugging project
  1.  Sorting data Settings
  2.  The sorting template is generated
  3.  Idle times setting
  4.  Compensation value setting
  5.  Monitor voltage internal resistance
  6.  Test pin change
Technical specification
Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 4+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1600*600*1650MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting


Device action flow description


The battery cell is put into the bin -- the test wheel runs to the test position -- the test cylinder moves -- the test needle presses to the battery cell --


the tester reads the data -- transfers to the computer -- the computer matches the gear -- the battery cell is transferred to the sorting belt --


the sorting belt runs to the specified gear -- the gear cylinder moves to push the battery cell out


Function Introduction

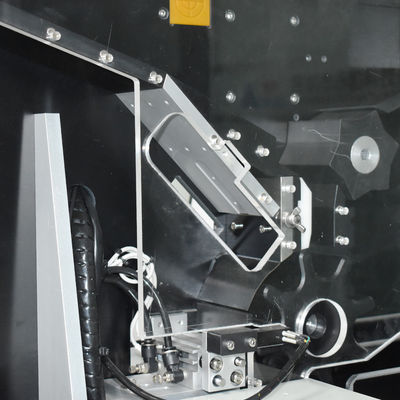

 1.Inspection and testing organization

4 Probe design, positive and negative electrode detection at the same time, with brand internal resistance meter, more accurate test data.
According to the test parameters, the upper computer analyzes the data and sorts the cells to the designated channel.

Battery Cell Sorting Machine Cylindrical Cell Sorting Strong Compatibility 0


 2.Loading mechanism

Humanized design, easy to fill the whole box. Large hopper, one time can put 200PCS18650 battery cells.


Battery Cell Sorting Machine Cylindrical Cell Sorting Strong Compatibility 1


 3.Operating interface

Using 7 inch touch screen, the gear parameter setting is simple and quick.Display sorting data in real time.


Battery Cell Sorting Machine Cylindrical Cell Sorting Strong Compatibility 2
