Cylindrical Battery Testing Equipment Fast Speed Single Cell Sorter For Battery

Cylindrical Battery Testing Equipment Fast Speed Single Cell Sorter For Battery

  • High Light

    Single Cell Sorter For Battery

    ,

    Cylindrical Single Cell Sorter

    ,

    Cylindrical CCD Equipment

  • Number Of Gears
    11
  • Power(KW)
    1.5KW
  • Product Name
    5 Gear Cell Sorting Machine
  • Computer Type
    Computer Touch All In One
  • Test Location
    Anode And Cathode
  • Code Scanning Function
    Yes
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFXH-10
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    10 Set/Sets per Week

Cylindrical Battery Testing Equipment Fast Speed Single Cell Sorter For Battery

Cylindrical Battery Testing Equipment Fast Speed Single Cell Sorter For Battery


Equipment introduction

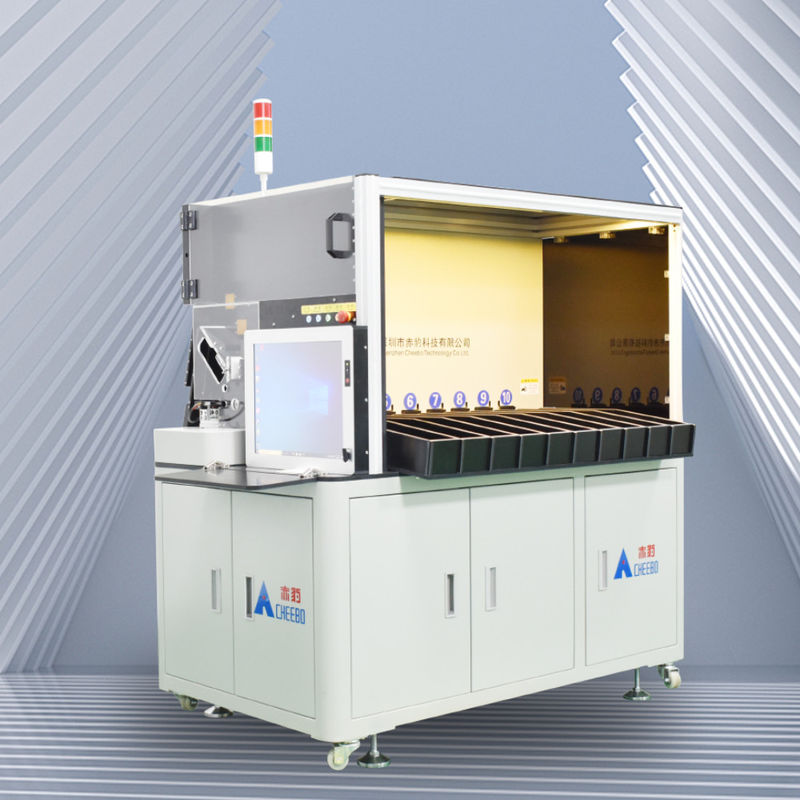

● CBFXH-10 multifunctional cylindrical battery testing and sorting machine is an automatic sorting equipment suitable for voltage and internal resistance testing of cylindrical cells of various specifications.


● Applicable battery models: 18650/21700/226650/26700/32650/32700, etc.


● More than 4000 cylindrical finished cells can be sorted per hour.


● The operation interface is simple and has one click generation function. Simply input the starting voltage internal resistance and corresponding interval to complete parameter settings.


● It has a manual parameter modification function, which can be adjusted by fine tuning or one click modification function for each gear.


● Adopting a 10+1 gear design, there are a total of 11 gears. 10 good product slots, with 1 Defective Goods Storage Area independently set on the backend.


● Adopting PLC+upper computer control mode, the upper computer records and displays sorting data in real-time, and sorting data can be saved and exported.


● Adopting Mitsubishi PLC+imported Panasonic servo control unit+4 probe design. The mechanical structure design is simple and generous, and the system performance is stable.


● Adopting a 19 inch integrated industrial grade computer, sorting data is displayed in real-time, and human-computer interaction is simple and convenient.


● Fault information reminder function, fault sound and light alarm, can quickly diagnose faults.


●Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, and anti-static.



Device action flow description



Place the battery into the silo - Test wheel runs to the testing position - Test cylinder action - Test needle presses onto the battery - Tester reads



data - Transfer to computer - Computer performs gear matching - Battery turns to sorting belt - Sorting belt runs to the specified gear - Gear



cylinder action pushes the battery out



Function Introduction



 1. Operating interface

Using 19 inch touch screen integrated industrial computer, i3 processor, processing data faster. Setting the gear parameters is simple and quick. 19 "large screen real-time display of sorting data, output, each cell test parameters accurate record, sorting data can be exported.

Cylindrical Battery Testing Equipment Fast Speed Single Cell Sorter For Battery 0

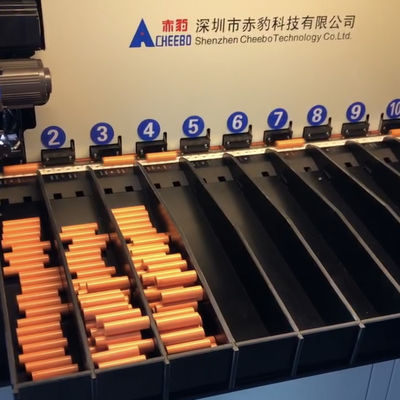

 2. Baffleless design

No baffle design, smooth operation, no lag.The sorting state of the cell at the arrival position is clearly visible.
Cylindrical Battery Testing Equipment Fast Speed Single Cell Sorter For Battery 1



 3. Loading mechanism

Humanized design, easy to fill the whole box. Large container, one time can put 400PCS18650 cells.

Cylindrical Battery Testing Equipment Fast Speed Single Cell Sorter For Battery 2



Equipment analysis diagram

Cylindrical Battery Testing Equipment Fast Speed Single Cell Sorter For Battery 3

1. Battery charging spout 2. Battery type wave wheel replacement area
3. 4 Probe head design 4. Integrated industrial computer touch screen
5. Flexible belt transmission 6. 10+1 channel
7. Panasonic servo motor



FAQ



Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
