Battery Pack Assembly Equipment Lithium Cell Sorting Machine Touch Screen

Battery Pack Assembly Equipment Lithium Cell Sorting Machine Touch Screen

  • High Light

    Battery Pack Assembly Equipment 26650

    ,

    Lithium Cell Sorting Machine 26650

    ,

    Touch Screen Lithium Cell Sorting Machine

  • Product Name
    10 Gear Sorting Machine
  • Transmission Mode
    Belt Transmission
  • Dimensions
    1275*860*1524MM
  • Sorting Gear
    10+1
  • Equipment Weight
    250KG
  • Operation Mode
    HD Touch Screen
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFX-10
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

Battery Pack Assembly Equipment Lithium Cell Sorting Machine Touch Screen

Battery Pack Assembly Equipment Lithium Cell Sorting Machine Touch Screen


Equipment introduction

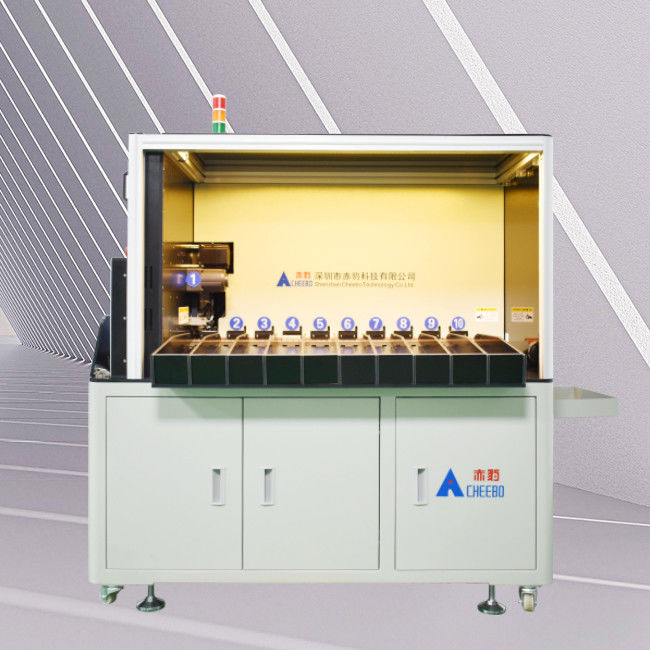

● CBFXH-10 multi-function cylindrical battery test sorter is an automatic sorting equipment suitable for cylindrical battery voltage

internal resistance test of various specifications.



● Applicable cell specifications: 18650 / 21700 / 226650 / 26700 / 32650 / 32700, etc.



● More than 4000 pieces of cylindrical finished cells can be completed per hour.



● The operation interface is simple, with a one-key generation function. Only input the starting voltage internal resistance and the

corresponding interval to complete the parameter setting.



● Has the manual parameter modification function, each gear can be adjusted by fine-tuning or one-click modification function.



● Adopt 10 + 1 file design, a total of 11 files. 10 good product slot, the back end independently set up 1 bad product storage area.



● Using PLC + upper computer control mode, the upper computer can record and display the sorting data in real time, and can save

and export the sorting data.



● Using Mitsubishi PLC + imported Panasonic servo control unit + 4 probe design. Mechanical structure design is simple and generous,

and the system performance is stable.



● Using a 19-inch integrated industrial-grade computer, sorting data real-time display, human-computer interaction is simple and

convenient.



● Fault information reminder function, fault sound and light alarm, can quickly diagnose the fault.



● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, rust prevention, static resistance.



Device action flow description



Place the battery into the silo - Test wheel runs to the testing position - Test cylinder action - Test needle presses onto the battery - Tester reads



data - Transfer to computer - Computer performs gear matching - Battery turns to sorting belt - Sorting belt runs to the specified gear - Gear



cylinder action pushes the battery out



Function Introduction



 1. Loading mechanism

Humanized design, easy to fill the whole box. Large container, one time can put 400PCS18650 cells.



Battery Pack Assembly Equipment Lithium Cell Sorting Machine Touch Screen 0



 2. Operating interface

Using 19 inch touch screen integrated industrial computer, i3 processor, processing data faster. Setting the gear parameters is simple and quick. 19 "large screen real-time display of sorting data, output, each cell test parameters accurate record, sorting data can be exported.



Battery Pack Assembly Equipment Lithium Cell Sorting Machine Touch Screen 1



 3. Baffleless design

No baffle design, smooth operation, no lag.The sorting state of the cell at the arrival position is clearly visible.
Battery Pack Assembly Equipment Lithium Cell Sorting Machine Touch Screen 2



Equipment dimensional drawing

Battery Pack Assembly Equipment Lithium Cell Sorting Machine Touch Screen 3

FAQ



Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
