Universal Type Cylindrical Assembly Battery Cell Sorting Machine

Universal Type Cylindrical Assembly Battery Cell Sorting Machine

  • High Light

    Universal Type Cell Sorting Equipment

    ,

    Universal Type Battery Cell Sorting Machine

    ,

    Clindrical Cell Sorting Equipment

  • Air Pressure
    0.2-0.8MPa
  • Capacity
    3000-4000pcs/h
  • Cell Size
    18650-32700
  • Control System
    PLC
  • Material
    Aluminium Alloy
  • Product Name
    Battery Cell Sorting Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFX-10
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

Universal Type Cylindrical Assembly Battery Cell Sorting Machine

Universal Type Cylindrical Assembly Battery Cell Sorting Machine


Equipment introduction



● CBFXH-10 multi-functional cylindrical battery test and sorting machine is an automatic sorting equipment suitable for various specifications of cylindrical battery voltage internal resistance test.


● Applicable cell specifications: 18650/21700/226650/26700/32650/32700, etc.


● The number of cylindrical finished battery cells sorted by each hour is more than 4,000.


● The operation interface is simple and has a one-click generation function. Simply enter the start-up voltage, internal resistance and the corresponding interval to complete the parameter setting.


● With manual parameter modification function, each gear can be adjusted by fine adjustment or one-key modification function.


● Adopt 10+1 gear design, a total of 11 gears. 10 good product slots, and 1 defective product storage area is independently set at the back end.


● Using PLC+ host computer control mode, the upper computer records and displays sorting data in real time, and can save and export sorting data.


● Mitsubishi PLC + imported Panasonic servo control unit + 4 probe design. The mechanical structure design is simple and generous, and the system performance is stable.


● Using 19-inch integrated industrial-grade computer, real-time display of sorting data, simple and convenient human-computer interaction.


● Fault information reminder function, fault sound and light alarm, can quickly diagnose the fault.


● Aluminum alloy structure, electrostatic powder spraying process, scratch resistance, anti-rust, anti-static.



Technical specification
Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 10+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1390*820*1360MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting




Equipment analysis diagram

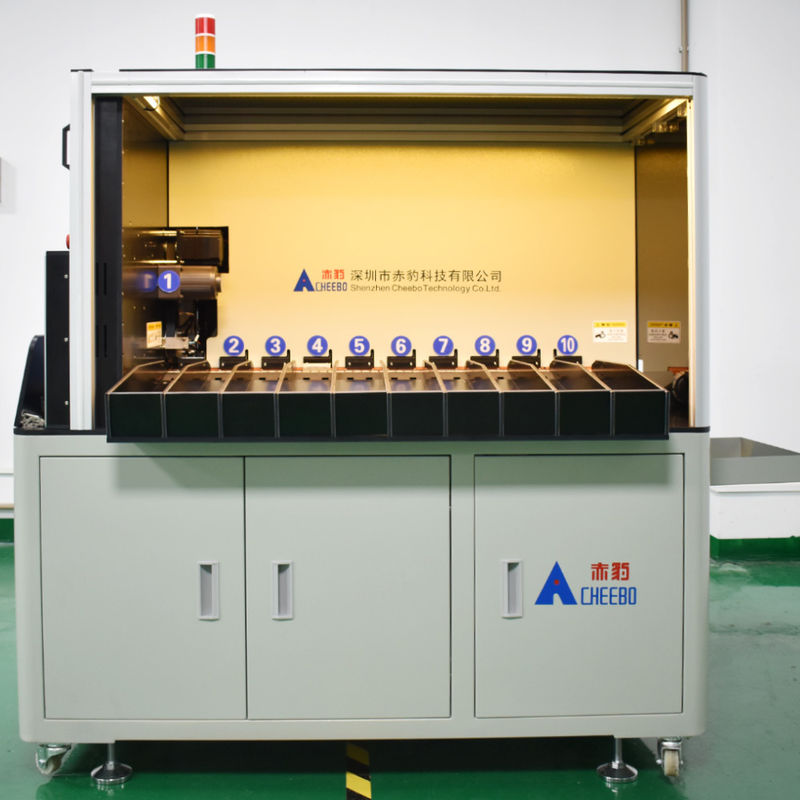

Universal Type Cylindrical Assembly Battery Cell Sorting Machine 0

1. Battery charging hopper 2. Battery type wave wheel replacement area
3. 4 Probe head design 4. Integrated industrial computer touch screen
5. Flexible belt transmission 6. 10+1 channel
7. Panasonic servo motor



Function Introduction

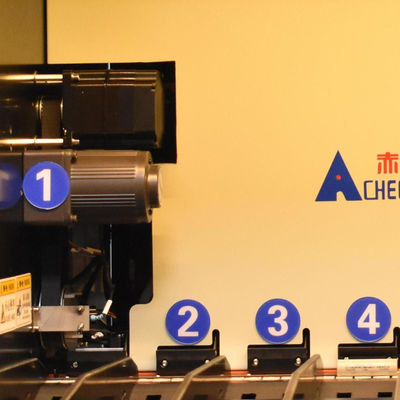

 1. Baffleless design

No baffle design, smooth operation, no lag.The sorting state of the cell at the arrival position is clearly visible.
Universal Type Cylindrical Assembly Battery Cell Sorting Machine 1



 2. Operating interface

Using 19 inch touch screen integrated industrial computer, i3 processor, processing data faster. Setting the gear parameters is simple and quick. 19 "large screen real-time display of sorting data, output, each cell test parameters accurate record, sorting data can be exported.



Universal Type Cylindrical Assembly Battery Cell Sorting Machine 2



 3. Loading mechanism

Humanized design, easy to fill the whole box. Large hopper, one time can put 400PCS18650 cells.



Universal Type Cylindrical Assembly Battery Cell Sorting Machine 3



Equipment dimensional drawing

Universal Type Cylindrical Assembly Battery Cell Sorting Machine 4

FAQ



Q: I don't know which one is right for me?
A: Please tell us the following information
1) Battery type?
2) Which battery models do you want to be compatible with?
3) How many gears do you need?



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q:What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q :How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
