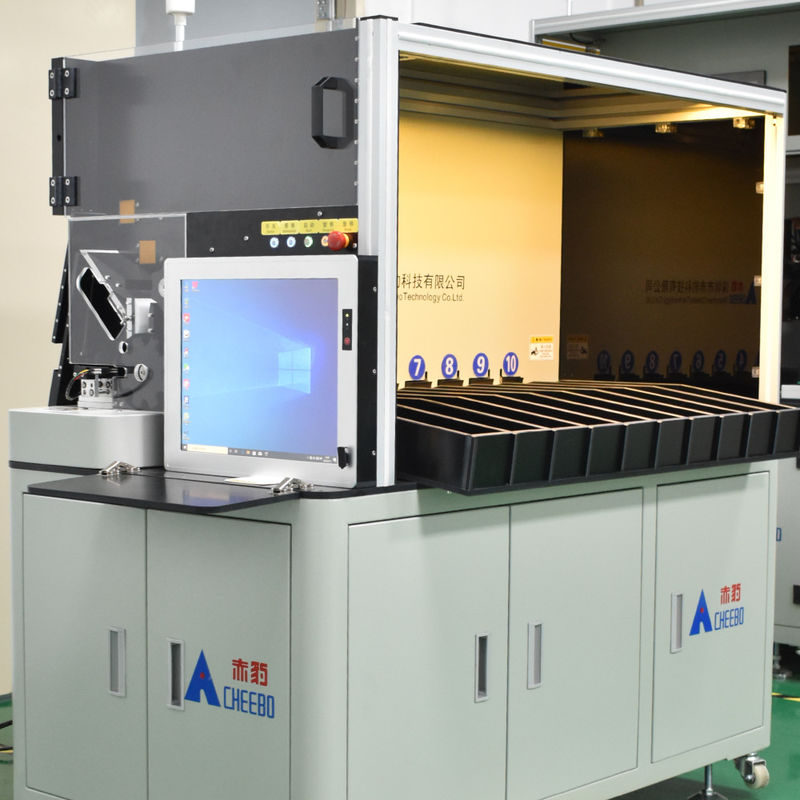

Industrial Customization Battery Cell Sorting Machine 18650 Test Sorting

Industrial Customization Battery Cell Sorting Machine 18650 Test Sorting

  • High Light

    Cell Sorting Equipment 18650

    ,

    Industrial Cell Sorting Equipment

    ,

    Cell Sorting Machine 18650

  • Product Name
    Battery Cell Sorting Machine
  • Internal Resistance Tester Optional
    HIOKI3561/HOPE3561
  • Voltage Accuracy
    0.1% (depending On Internal Resistance Meter)
  • Internal Resistance Accuracy
    0.5% (according To The Internal Resistance Meter)
  • Air Source Specification
    1/CFM
  • Monitor
    19 Inch Industrial Computer
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFX-10
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

Industrial Customization Battery Cell Sorting Machine 18650 Test Sorting

Industrial Customization Battery Cell Sorting Machine 18650 Test Sorting


Equipment introduction


● CBFXH-10 multi-functional cylindrical battery testing and sorting machine is a kind of automatic sorting equipment which is suitable for voltage and internal resistance testing of various specifications of cylindrical batteries.


● It can be used for 18650/21700/226650/26700/32650/32700 etc.


● The number of finished cylindrical cells sorted per hour is over 4000.


● Simple operation interface with one-key generation function. Only need to input the starting voltage internal resistance and the corresponding interval to complete the parameter setting.


● With manual parameter modification function, each gear can be adjusted by fine-tuning or one-key modification function.


● Adopts 10+1 steps design, 11 steps in total. 10 slots for good products and 1 independent storage area for defective products at the back end.


● Adopts PLC + upper computer control method. The upper computer records and displays sorting data in real time, and can save and export sorting data.


● Adopts Mitsubishi PLC + imported Panasonic servo control unit + 4 probes design. The mechanical structure design is simple and generous, and the system performance is stable.


● Using 19" all-in-one industrial grade computer, the sorting data is displayed in real time and the human-machine interaction is simple and convenient.


● Failure information reminding function, sound and light alarm of failure, can diagnose failure quickly.


● Aluminium alloy structure, electrostatic powder coating process, scratch-resistant, rust-proof and anti-static.


Technical specification



Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 10+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1390*820*1360MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting




Function Introduction



 1. Operating interface

Using 19 inch touch screen integrated industrial computer, i3 processor, processing data faster. Setting the gear parameters is simple and quick. 19 "large screen real-time display of sorting data, output, each cell test parameters accurate record, sorting data can be exported.
Industrial Customization Battery Cell Sorting Machine 18650 Test Sorting 0


 2. On-line mechanism
The paper machine can be connected and pasted according to the production process. Save costs and meet diversified production.
Industrial Customization Battery Cell Sorting Machine 18650 Test Sorting 1

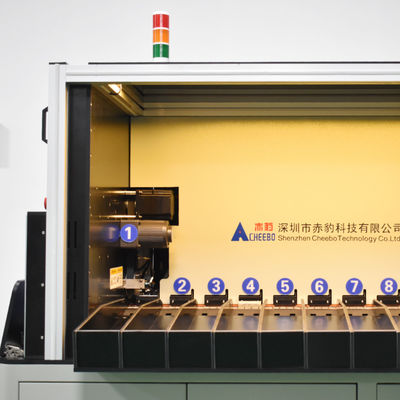

 3. Italic design

The ten grades all adopt italic design, open gate, simple and convenient material receiving, saving time and labor, and effectively improving production efficiency.
Industrial Customization Battery Cell Sorting Machine 18650 Test Sorting 2


Device action flow description



Place the battery into the silo - Test wheel runs to the testing position - Test cylinder action - Test needle presses onto the battery -



Tester reads data - Transfer to computer - Computer performs gear matching - Battery turns to sorting belt - Sorting belt runs to



the specified gear - Gear cylinder action pushes the battery out


Equipment analysis diagram

Industrial Customization Battery Cell Sorting Machine 18650 Test Sorting 3

1. Battery charging hopper 2. Battery type wave wheel replacement area
3. 4 Probe head design 4. Integrated industrial computer touch screen
5. Flexible belt transmission 6. 10+1 channel
7. Panasonic servo motor
