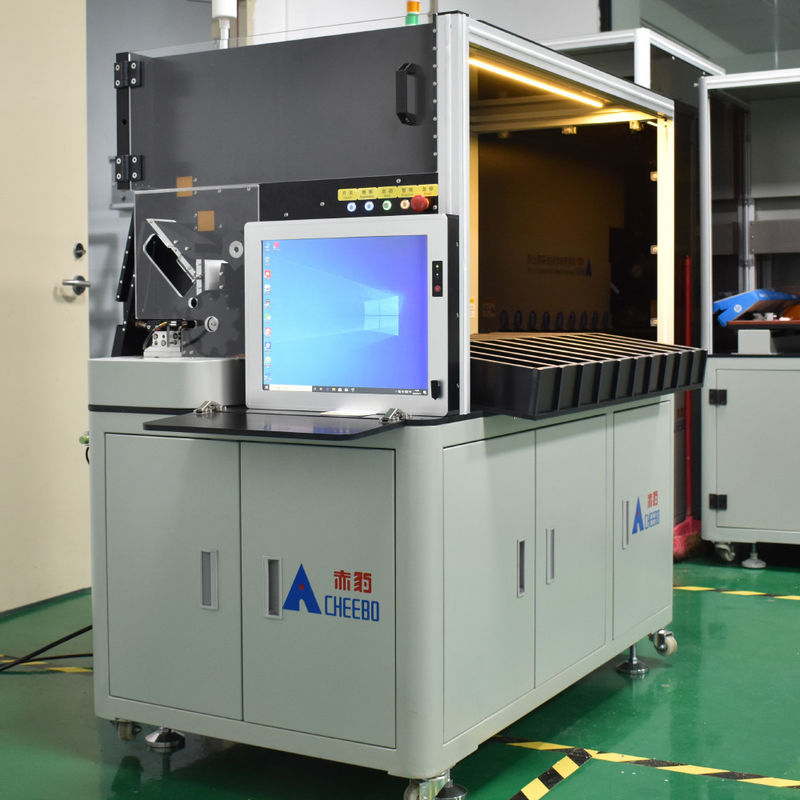

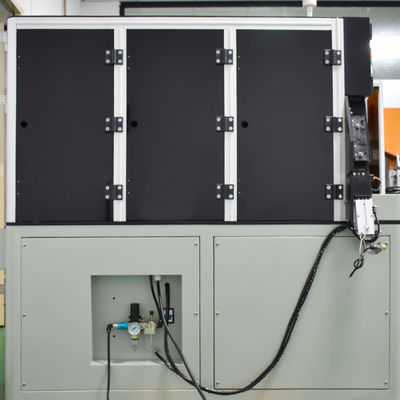

18650/21700 Battery Cell Sorting Machine Cylindrical Cell Universal Type

18650/21700 Battery Cell Sorting Machine Cylindrical Cell Universal Type

  • High Light

    Automatic Lithium Cell Testing Machine

    ,

    Cylindrical Lithium Cell Testing Machine

    ,

    Cylindrical BMS Tester

  • Type
    Automatic
  • Warranty
    1 Year
  • Color
    Silver White
  • Test Needle
    4 Probe
  • Product Name
    10 Gear Sorting Machine
  • Sorting Channels
    10+1
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBFX-10
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    30 Set/Sets per Month

18650/21700 Battery Cell Sorting Machine Cylindrical Cell Universal Type

18650/21700 Battery Cell Sorting Machine Cylindrical Cell Universal Type


Equipment introduction



● Adopts 10+1 steps design, 11 steps in total. 10 slots for good products and 1 independent storage area for defective products at the back end.


● Adopts PLC + upper computer control method. The upper computer records and displays sorting data in real time, and can save and export sorting data.


● Adopts Mitsubishi PLC + imported Panasonic servo control unit + 4 probes design. The mechanical structure design is simple and generous, and the system performance is stable.


● Using 19" all-in-one industrial grade computer, the sorting data is displayed in real time and the human-machine interaction is simple and convenient.


● Failure information reminding function, sound and light alarm of failure, can diagnose failure quickly.


● Aluminium alloy structure, electrostatic powder coating process, scratch-resistant, rust-proof and anti-static.



● CBFXH-10 multi-functional cylindrical battery testing and sorting machine is a kind of automatic sorting equipment which is suitable for voltage and internal resistance testing of various specifications of cylindrical batteries.


● It can be used for 18650/21700/226650/26700/32650/32700 etc.


● The number of finished cylindrical cells sorted per hour is over 4000.


● Simple operation interface with one-key generation function. Only need to input the starting voltage internal resistance and the corresponding interval to complete the parameter setting.


● With manual parameter modification function, each gear can be adjusted by fine-tuning or one-key modification function.



Equipment analysis diagram

18650/21700 Battery Cell Sorting Machine Cylindrical Cell Universal Type 0

 1.  Battery charging hopper     2.  Battery type wave wheel replacement area
 3.  4 Probe head design     4.  Integrated industrial computer touch screen
 5.  Flexible belt transmission     6.  10+1 channel
 7.  Panasonic servo motor



Technical specification
Production efficiency 50-70PPM Air source specification 1/CFM
Applicable battery specifications Diameter: 18-32; Length: 65-70 Transmission mode belt transmission
Sort the gears 10+1 Product loss rate 0
SBM Series HIOKI3561/HOPE350 Frame material Aluminium alloy
Voltage accuracy 0.1% (according to the internal resistance meter) Machine Dimensions 1390*820*1360MM
Internal resistance accuracy 0.5%(depending on internal resistance meter) Machine Weight 220KG
Power source specification Single-phase 220V50/60HZ Application scenarios Cylindrical battery sorting



Equipment dimensional drawing

18650/21700 Battery Cell Sorting Machine Cylindrical Cell Universal Type 1

Function Introduction


 1. Italic design

The ten grades all adopt italic design, open gate, simple and convenient material receiving, saving time and labor, and effectively improving production efficiency.
18650/21700 Battery Cell Sorting Machine Cylindrical Cell Universal Type 2

 2. Baffleless design

No baffle design, smooth operation, no lag.The sorting state of the cell at the arrival position is clearly visible.
18650/21700 Battery Cell Sorting Machine Cylindrical Cell Universal Type 3

 3. Loading mechanism

Humanized design, easy to fill the whole box. Large hopper, one time can put 400PCS18650 cells.
18650/21700 Battery Cell Sorting Machine Cylindrical Cell Universal Type 4


Matters needing attention
  1.  Sorting belt is kept clean
  2.  The test needle should be replaced regularly
  3.  The oil-water filter should be drained regularly
  4.  Clean the foreign bodies in the equipment in time
Operation and maintenance
  1.  Only use the machine when the machine is in good condition, the ground protection is good, and all the functions of the machine are normal
  2.  Distance from walls and other facilities ≥1000mm
  3.  Ground requirements: ground level, four foot cup adjustment level
  4.  Height space: ≥2500mm
  5.  Workshop working environment requirements: 10℃ -32 ℃
  6.  Clean welding dust from all parts of the equipment every day
  7.  Check every week that all parts are in good condition
  8.  Monthly check the lubrication status of each moving part timely lubrication (using 0# grease)
  9.  Operation must be in accordance with the specifications of the operation​
