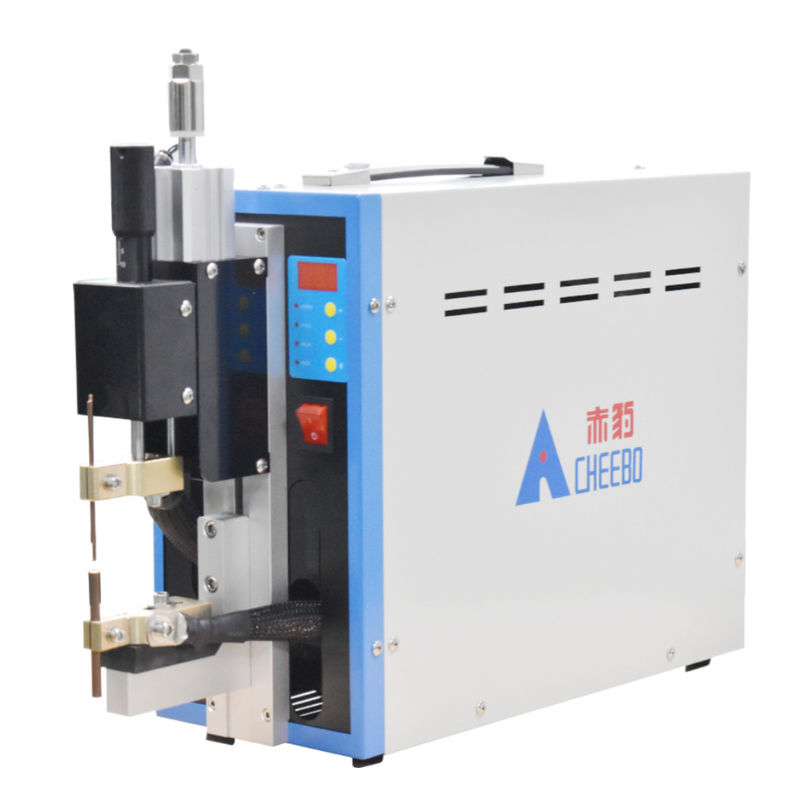

Pneumatic Portable Battery Spot Welder Multi Pulse Power Metallic Welding Material

Pneumatic Portable Battery Spot Welder Multi Pulse Power Metallic Welding Material

  • High Light

    Metallic Portable Battery Spot Welder

    ,

    Multi Pulse Portable Battery Spot Welder

    ,

    Metallic Pneumatic Spot Welder

  • Welding Power Supply
    Multi-pulse
  • Welding Thickness
    ±2MM
  • Size
    560MM*170MM*330MM
  • Equipment Weight
    25KG
  • Driving Mode
    Pneumatic
  • Product Name
    Portable Resistance Welding Machine
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXDH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Pneumatic Portable Battery Spot Welder Multi Pulse Power Metallic Welding Material

High Quality Portable Battery Spot Welder Metal Pneumatic Foot


Equipment introduction



● Single-pulse, multi-pulse and double-pulse welding can be realized by single-chip microcomputer control.


● Using proprietary output energy optimization algorithm, reasonable conversion of output voltage and output current, strong welding ability, firm welding joint, error-free welding, low ignition, excellent surface quality.


● Independent welding needle, spring buffer design, accurate adjustment of welding pressure.


● Welding joint platform can be adjusted up and down, can weld various specifications of batteries.


● Imported high-quality alumina copper electrodes, pure copper welding cables, pure copper electrode clips and other accessories to make the machine durable.


● Intelligent chip precision control, import control chip, microsecond corresponding chip integration process, small size, can work for a long time, and stable operation.


● All parameters are set digitally, and the parameter adjustment is stable, intuitive and accurate.


● The vertical spot welding is adopted and the pressure depth can be adjusted.


● It adopts pneumatic precision welding head independently developed by chebo, which has accurate pressure adjustment control.


● Digital LED shows that the adjustment of equipment parameters is more intuitive and easy to learn and operate.


● Microcomputer technology control, grid voltage control, automatic tracking compensation.


● The portable spot welding machine adopts integrated design, which saves space and is easy to carry.


● The welding machine can store multiple programs and can be changed and called freely.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding material metallic Welding needle Optional as required
Supply current 3600A Welding speed 200P/M
Spot welding method butt welding Welding pressure 5KG/F
Equipment power 3KW/7KW/12KW Equipment size 560MM*170MM*330MM
Driving mode Pneumatic Machine Weight 20KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction

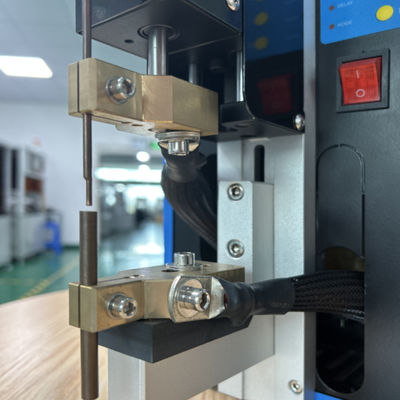

 1. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



Pneumatic Portable Battery Spot Welder Multi Pulse Power Metallic Welding Material 0



 2. Pressure regulation

The pressure of the welding head can be adjusted from 1 to 1-10KG to ensure good welding effect with different thicknesses and materials.



Pneumatic Portable Battery Spot Welder Multi Pulse Power Metallic Welding Material 1



 3. High quality cable
Pure copper cable, with low conductor resistance, large current-carrying capacity and thick enough, does not generate heat when welding.



Pneumatic Portable Battery Spot Welder Multi Pulse Power Metallic Welding Material 2



Scope of application



1. Wire terminal             2. Metal sheet welding            3. Hardware welding          4. Metal jewelry welding



 Pneumatic Portable Battery Spot Welder Multi Pulse Power Metallic Welding Material 3               Pneumatic Portable Battery Spot Welder Multi Pulse Power Metallic Welding Material 4                       Pneumatic Portable Battery Spot Welder Multi Pulse Power Metallic Welding Material 5                    Pneumatic Portable Battery Spot Welder Multi Pulse Power Metallic Welding Material 6



Announcements
  1.  Polish the welding needle regularly.
  2.  Regularly check whether there is loosening in each part.
  3.  Do not disassemble circuit components without permission.
  4.  Periodically clean welding dust from all parts of the device.
  5.  Check the lubrication degree of each moving part every month
  6.  Please read the instructions carefully before operation and operate according to the specifications of the instructions.
Debugging project
  1.  Welding pressure: 1-10 kg
  2.  Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters
  3.  Air pressure regulation
  4.  Adjustment of needle extension length
  5.  Adjust the lower position of the welding head
  6.  Adjust the spacing between the left and right pins
