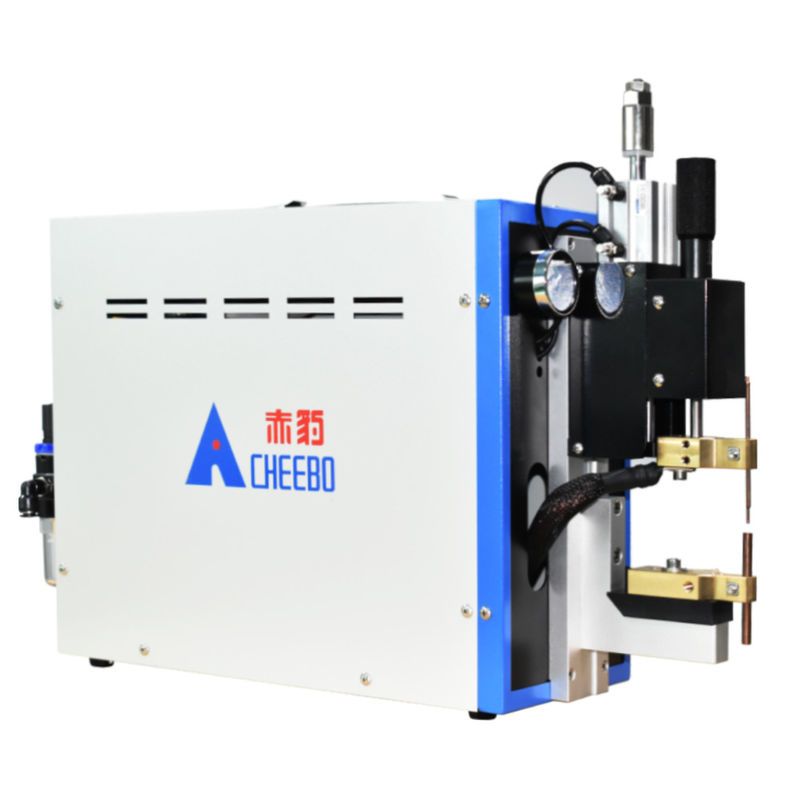

Multi Pulse Power Portable Battery Spot Welder Professional  3600A Power

Multi Pulse Power Portable Battery Spot Welder Professional 3600A Power

  • High Light

    Portable Battery Spot Welder 3600A

    ,

    Multi Pulse Professional Battery Spot Welder

    ,

    Professional Battery Spot Welder 3600A

  • Product Name
    Portable Resistance Welding Machine
  • Warranty
    1 Year
  • Key Selling Points
    Portable Welding
  • Power (kW)
    7
  • Weight (KG)
    30 KG
  • After Sale Service
    Available Online
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXDH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Multi Pulse Power Portable Battery Spot Welder Professional 3600A Power

Industrial Grade Portable AC Resistance Welding Multi - Pulse Metal Spot Welder


Equipment introduction


● Suitable for welding small hardware parts, electronic and electrical parts, wire terminals, stainless steel parts, metal jewelry, copper products, aluminum products, etc. At the same time, it is also suitable for product maintenance and proofing.



● Single-pulse, multi-pulse and double-pulse welding can be realized by single-chip microcomputer control.



● Proprietary output energy optimization algorithm is adopted, with reasonable conversion between output voltage and output current, strong welding ability, firm welding joint, no welding error, low ignition and excellent surface quality.



● The pneumatic precision welding head independently developed by CHEEBO ensures the accurate adjustment and control of pressure.



● Independent capillary and spring buffer design to accurately adjust welding pressure.



● The welding joint platform can be adjusted up and down to weld various batteries.



● Import high-quality aluminum oxide copper electrode, pure copper welding cable, pure copper electrode clip and other accessories to make the machine durable.



● Precise control of intelligent chip, imported control chip, microsecond corresponding chip integration process, small size, long working time and stable operation.



● All parameters are set by numbers, and the parameter adjustment is stable, intuitive and accurate.



● Vertical spot welding is adopted, and the pressure depth can be adjusted.



● Digital LED display makes the adjustment of equipment parameters more intuitive and easy to learn and operate.



● Microcomputer technology control, grid voltage control, automatic tracking compensation.



● Portable spot welding machine adopts integrated design, which saves space and is convenient to carry.



● The welder can store multiple programs, which can be changed and called freely.



● Compact structure, small volume, high power, large industrial circuit design, safe and reliable welding process.


Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding material Metallic Welding needle Optional as required
Supply current 3600A Welding speed 200P/M
Spot welding method Dutt welding Welding pressure 5KG/F
Equipment power 3KW/7KW/12KW Equipment size 560MM*170MM*330MM
Driving mode Pneumatic Machine Weight 20KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction


1. Quality accessories
Imported aluminum oxide copper electrode, pure copper welding cable, pure copper electrode clamp, etc., the machine is durable.
Multi Pulse Power Portable Battery Spot Welder Professional  3600A Power 0


2. Operation panel

LED digital display. "+", "-" to adjust the data. "#" switch to adjust the data. Data adjustment is simple and convenient. One-click switch button.


Multi Pulse Power Portable Battery Spot Welder Professional  3600A Power 1

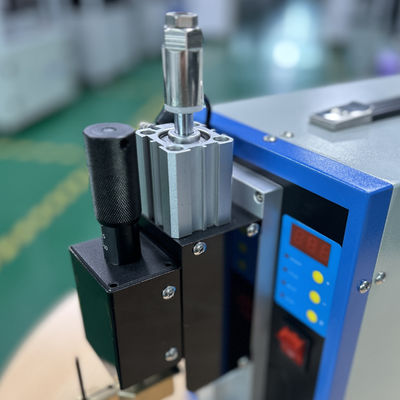

3. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.

Multi Pulse Power Portable Battery Spot Welder Professional  3600A Power 2



Scope of application



1. Wire terminal 2. Metal sheet welding 3. Hardware welding 4. Metal jewelry welding



Multi Pulse Power Portable Battery Spot Welder Professional  3600A Power 3                    Multi Pulse Power Portable Battery Spot Welder Professional  3600A Power 4                    Multi Pulse Power Portable Battery Spot Welder Professional  3600A Power 5                  Multi Pulse Power Portable Battery Spot Welder Professional  3600A Power 6



Announcements
  1. Polish the welding needle regularly.
  2. Regularly check whether there is loosening in each part.
  3. Do not disassemble circuit components without permission.
  4. Periodically clean welding dust from all parts of the device.
  5. Check the lubrication degree of each moving part every month Please read the instructions carefully before operation and operate according to the specifications of the instructions.
