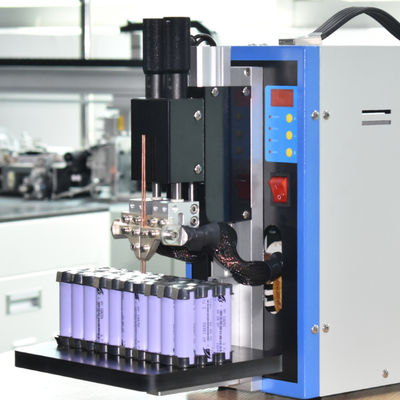

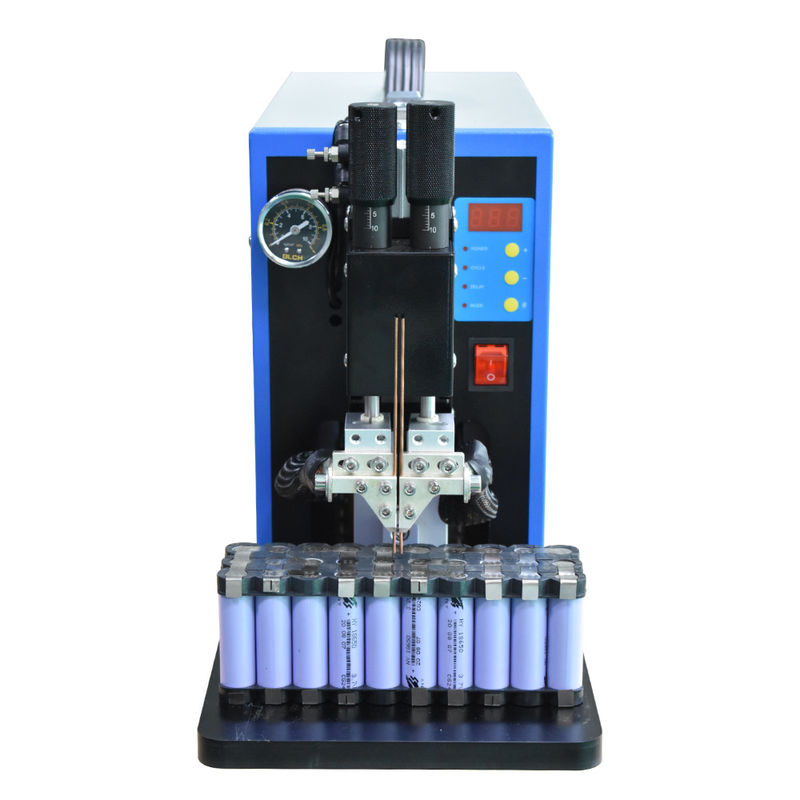

Lithium  Portable Battery Welder ,  Pneumatic Spot Welder 12KW  Power

Lithium Portable Battery Welder , Pneumatic Spot Welder 12KW Power

  • High Light

    Lithium Portable Battery Welder

    ,

    Pneumatic Spot Welder 12KW

    ,

    Portable Battery Welder 12KW

  • Voltage
    220V
  • Max. Welding Thickness
    0.2MM
  • Product Name
    Portable Lithium Battery Spot Welder
  • Welding Thickness
    Pure Nickel/nickel Plated Steel
  • Power(KW)
    3KW/7KW/12KW
  • Voltage Upper And Lower Limits Set
    0.00-9.99V
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH300
  • Minimum Order Quantity
    1 set
  • Price
    GOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Week

Lithium Portable Battery Welder , Pneumatic Spot Welder 12KW Power

Industrial Grade Small Portable Pneumatic Battery Pack Welding


Equipment introduction



Integrated design, space saving, easy to carry.


Self-developed precision welding head, precise pressure adjustment control.


Proprietary output energy optimization algorithm, output voltage and output current transformation is reasonable, strong welding ability, solid solder joint, no virtual welding, small cremation, excellent surface quality.


Imported alumina copper electrode, pure copper welding cable, pure copper electrode clamp and other high-quality accessories, the machine is durable.


The welding head platform can be adjusted up and down to weld a variety of specifications of cells.


Microcomputer technology control, control voltage grid, automatic tracking compensation.


All parameters are set digitally, and the adjustment of parameters is stable, intuitive and accurate.


Vertical spot welding method for spot welding, manual control of the depth of pressure.


Digital LED display, the parameter adjustment of the device is more intuitive and easy to learn and easy to operate.


The welder can prestore multiple programs, which can be changed and called at will.


Compact structure, small volume, large power, large industrial circuit design, safe and reliable welding process.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.

Lithium  Portable Battery Welder ,  Pneumatic Spot Welder 12KW  Power 0



 2. Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.

Lithium  Portable Battery Welder ,  Pneumatic Spot Welder 12KW  Power 1



 3. Welding table

Welding table can be adjusted up and down, loose the screw can be adjusted, simple and convenient, suitable for a variety of specifications of battery welding.

Lithium  Portable Battery Welder ,  Pneumatic Spot Welder 12KW  Power 2



Equipment workflow



Power on -- Adjust parameters -- Place the installed battery pack on the workbench -- step on the pedal -- the welding head starts to move -- spot



welding is completed -- the welding head returns



  1. Welding case



Lithium  Portable Battery Welder ,  Pneumatic Spot Welder 12KW  Power 3 Lithium  Portable Battery Welder ,  Pneumatic Spot Welder 12KW  Power 4 Lithium  Portable Battery Welder ,  Pneumatic Spot Welder 12KW  Power 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
