Double Point Handheld Portable Battery Spot Welder Pneumatic Multipulse

Double Point Handheld Portable Battery Spot Welder Pneumatic Multipulse


Equipment introduction

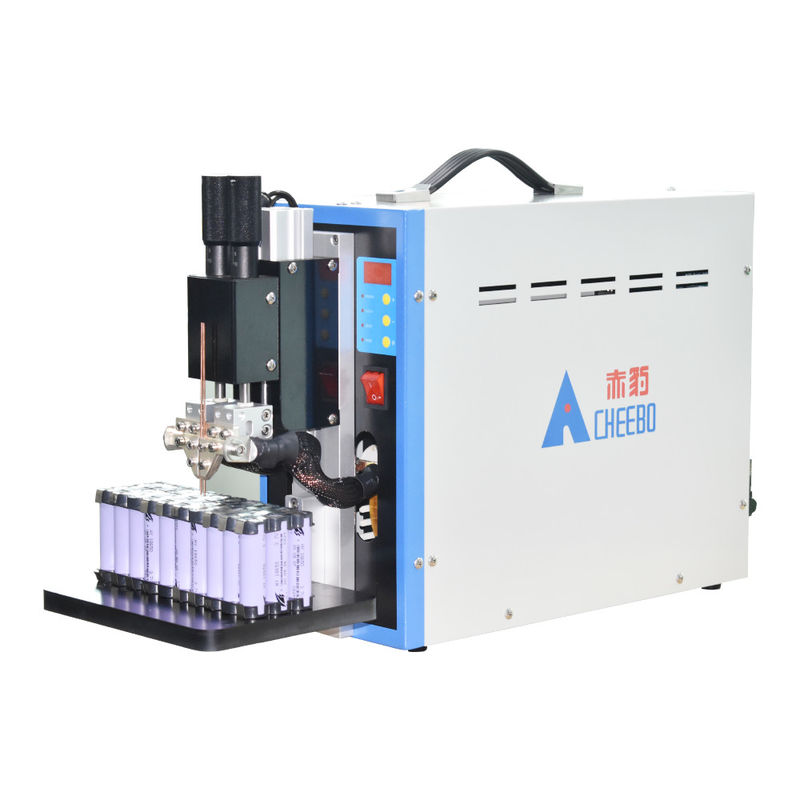

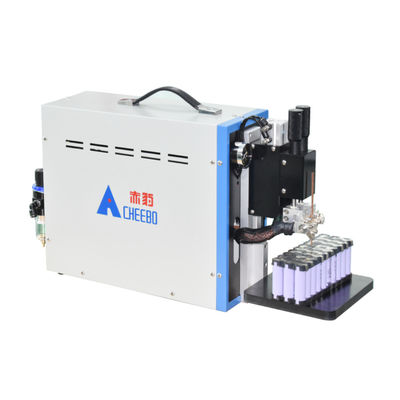

Portable lithium battery spot welding machine adopts an integrated design, which saves space and is convenient to carry.


The battery mini welding machine adopts Cheebo's independently developed pneumatic precision welding head, with precise pressure regulation control.


The lithium battery welding machine adopts a proprietary output energy optimization algorithm, with reasonable conversion of output voltage and output current, strong welding ability, firm solder joints, no false soldering, small cremation, and excellent surface quality.


Imported high-quality accessories such as aluminum oxide copper electrodes, pure copper welding cables, and pure copper electrode clamps make the machine durable and durable.


The welding head platform can be adjusted up and down, and can weld various specifications of batteries.


Microcomputer technology control, control of power grid voltage, automatic tracking and compensation.


All parameters are set digitally, and parameter adjustments are stable, intuitive, and accurate.


The vertical spot welding method is spot welding, with manual control of pressure depth.


Digital LED display, device parameter adjustment is more intuitive, easy to learn and operate.


The welding machine can pre store multiple programs, which can be freely changed and called.


Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Applicable scope



Power lithium-ion battery module assembly and welding, 3C lithium-ion battery pack welding and assembly, nickel-metal hydride battery pack spot



welding, hardware welding, electrical and electronic parts welding, wire terminal welding, stainless steel welding, metal jewelry welding, copper



products welding, aluminum products welding.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.

Double Point Handheld Portable Battery Spot Welder Pneumatic Multipulse 0



 2. Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.

Double Point Handheld Portable Battery Spot Welder Pneumatic Multipulse 1



 3. High quality cable

Pure copper cable, low resistance wire, high current carrying capacity, thick enough, and non heating during welding.

Double Point Handheld Portable Battery Spot Welder Pneumatic Multipulse 2



Equipment workflow



Power on -- Adjust parameters -- Place the installed battery pack on the workbench -- step on the pedal -- the welding head starts to move -- spot



welding is completed -- the welding head returns



  1. Welding case



Double Point Handheld Portable Battery Spot Welder Pneumatic Multipulse 3       Double Point Handheld Portable Battery Spot Welder Pneumatic Multipulse 4        Double Point Handheld Portable Battery Spot Welder Pneumatic Multipulse 5





  • Maintenance mode
  •

1. The welding machine in the parameter setting state do not turn off the power, the wrong turn off the power may cause the setting parameters can not be saved or the parameter error.


2. The power supply should be turned off when the welding machine stops working. If you do not work for a long time, unplug the power plug and compressed air plug.


3. Try to ensure that the electrode is clean and smooth. When the oxide layer appears on the electrode working surface, the surface oxide layer should be removed by sandpaper and other tools.


4. Keep enough lubricating oil in the oil mist. When there is little lubricating oil, lubricating oil can be added from the refueling hole. ISO VG32 or equivalent lubricants are recommended.
