Foot Switch Portable Spot Welder For Batteries 18650 Minin Battery Welder

Foot Switch Portable Spot Welder For Batteries 18650 Minin Battery Welder

  • High Light

    Foot Switch Lithium Ion Welder

    ,

    Lithium Ion Welder 18650

    ,

    Portable Spot Welder For Batteries 18650

  • Product Name
    Portable Lithium Battery Spot Welder
  • Power Types
    Multipulse
  • Machine Dimensions
    640mm*200mm*360mm
  • Welding Speed
    200P/M
  • Supply Current
    3200A
  • Type Of Drive
    Pneumatic
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Week

Foot Switch Portable Spot Welder For Batteries 18650 Minin Battery Welder

Foot Switch Portable Spot Welder For Batteries 18650 Minin Battery Welder

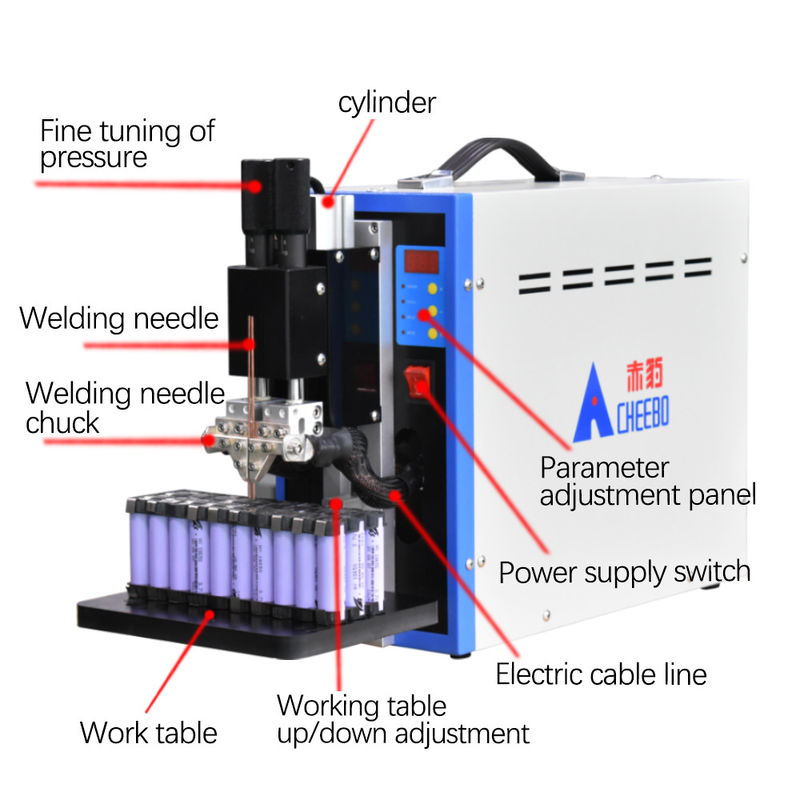

Equipment introduction



Integrated design, saving space and easy to carry.


Independently developed precision welding heads with precise pressure regulation control.


Independent welding needle, spring buffering design, precise adjustment of welding pressure


Intelligent chip precision control, imported control chip, microsecond level corresponding chip integration process, small size, can work for a long time, and runs stably.


Controlled by a microcomputer microcontroller, single pulse, multi pulse, and dual pulse welding methods can be achieved.


Precision welding head: Double point welding head with both left and right electrodes pressed down simultaneously, precise and adjustable.



Flexible and rapid pressurization, with good pressure follow-up. High machining accuracy and low electrode inertia.


The built-in pressure in place sensing device is connected to the welding controller to ensure that each welding pressure meets the requirements.


Proprietary output energy optimization algorithm, reasonable conversion of output voltage and output current, strong welding ability, firm solder joints, no false soldering, small cremation, and excellent surface quality.


Imported high-quality accessories such as aluminum oxide copper electrodes, pure copper welding cables, and pure copper electrode clamps make the machine durable and durable.


The welding head platform can be adjusted up and down, and can weld various specifications of batteries.


Microcomputer technology control, control of power grid voltage, automatic tracking and compensation.


All parameters are set digitally, and parameter adjustments are stable, intuitive, and accurate.


The vertical spot welding method is spot welding, with manual control of pressure depth.


Digital LED display, device parameter adjustment is more intuitive, easy to learn and operate.


The welding machine can pre store multiple programs, which can be freely changed and called.


Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction

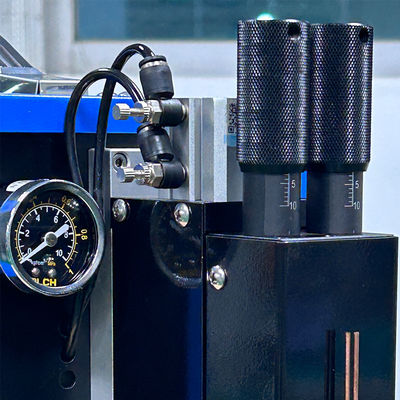

 1. Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.



Foot Switch Portable Spot Welder For Batteries 18650 Minin Battery Welder 0



 2. Welding table

Welding table can be adjusted up and down, loose the screw can be adjusted, simple and convenient, suitable for a variety of specifications of battery welding.

Foot Switch Portable Spot Welder For Batteries 18650 Minin Battery Welder 1



 3. Pneumatic precision welding head

The left and right electrodes of the double spot welding head are pressed down at the same time, which is accurately adjustable. Flexible and rapid pressure, good pressure follow-up. High machining precision, small electrode inertia. The built-in pressure induction device is connected with the welding controller to ensure that the welding pressure meets the requirements.

Foot Switch Portable Spot Welder For Batteries 18650 Minin Battery Welder 2



Matters need attention



1. Polish the welding needle regularly.


2. Regularly check whether there is loosening in each part.


3. Do not disassemble and debug the equipment at will.


4. Do not disassemble circuit components without permission.


5. Periodically clean welding dust from all parts of the device.


6. Check the lubrication degree of each moving part every month.


7. Please read the instructions carefully before operation and operate according to the specifications of the instructions.
