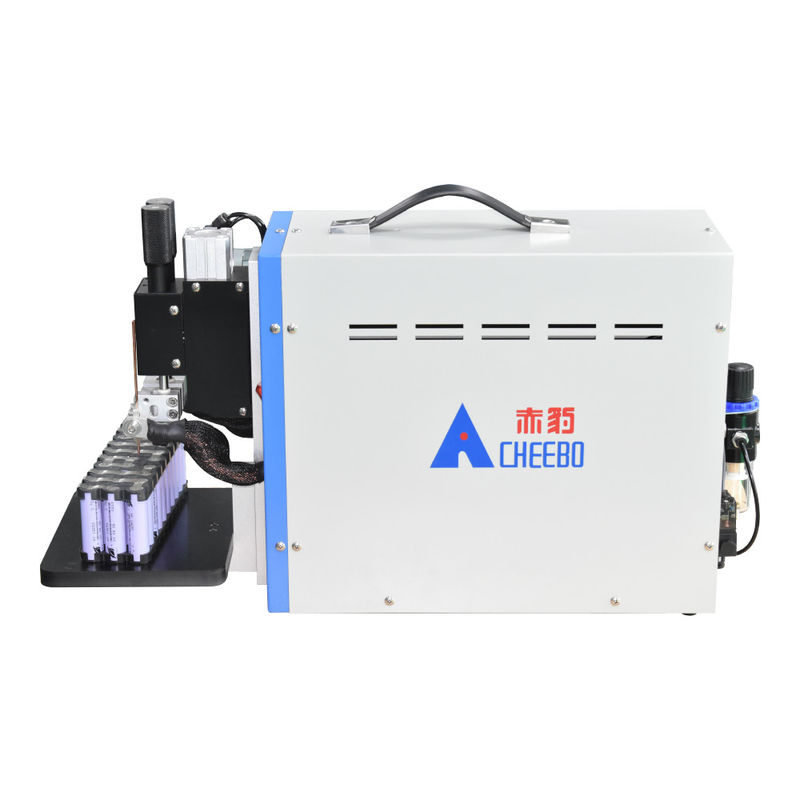

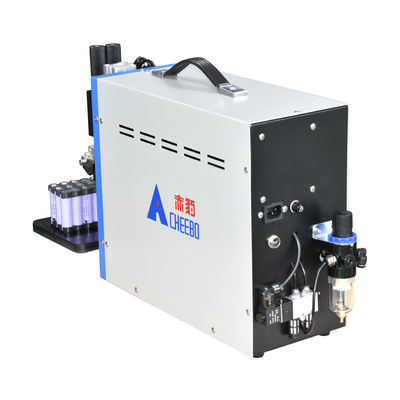

Portable Battery Spot Welding 7KW Power Pneumatic Multi-Pulse Power Supply

Portable Battery Spot Welding 7KW Power Pneumatic Multi-Pulse Power Supply

  • High Light

    Spot Welding For Lithium Ion Battery

    ,

    Portable Welding For Lithium Ion Battery

    ,

    Lithium Battery Welder 12KW

  • Product Feature
    Portable
  • Product Name
    Portable Lithium Battery Spot Welder
  • Weight
    20KG
  • Frequency
    50HZ/60HZ
  • Type
    Welding Equipment
  • Name
    Portable Portable Lithium Battery Spot Welder
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Custom wooden frame packing
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    100 Set/Sets per Week

Portable Battery Spot Welding 7KW Power Pneumatic Multi-Pulse Power Supply

Portable Battery Spot Welding 7KW Power Pneumatic Multi-Pulse Power Supply


Equipment introduction

●  Portable lithium battery spot welding machine adopts integrated design, saving space and easy to carry.


● The battery pack micro welding machine adopts the pneumatic precision welding head independently developed by Qibo, with accurate pressure regulation control.


● Digital LED display, equipment parameter adjustment is more intuitive, easy to learn and operate.


● Microcomputer technology control, control grid voltage, automatic tracking compensation.


● All parameters are set digitally, and parameter adjustment is stable, intuitive and accurate.


● The vertical spot welding method is spot welding, and the pressure depth is controlled manually.


● The welder can prestore multiple programs, which can be freely changed and called.


● Lithium battery welder adopts proprietary output energy optimization algorithm, reasonable output voltage and output current conversion, strong welding ability, solid solder joint, no false welding, small cremation, excellent surface quality.


● Imported high-quality aluminum oxide copper electrode, pure copper welding cable, pure copper electrode clamp and other accessories, make the machine durable.


● The welding head platform can be adjusted up and down, and can be welded with various specifications of batteries.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.



Portable Battery Spot Welding 7KW Power Pneumatic Multi-Pulse Power Supply 0



 2. Pneumatic precision welding head

The left and right electrodes of the double point welding head are pressed down simultaneously, which is precise and adjustable. Flexible and rapid pressurization, with good pressure follow-up. High machining accuracy and low electrode inertia. The built-in pressure in place sensing device is connected to the welding controller to ensure that each welding pressure meets the requirements.

Portable Battery Spot Welding 7KW Power Pneumatic Multi-Pulse Power Supply 1



 3. Welding table

Welding table can be adjusted up and down, loose the screw can be adjusted, simple and convenient, suitable for a variety of specifications of battery welding.

Portable Battery Spot Welding 7KW Power Pneumatic Multi-Pulse Power Supply 2



Equipment workflow



Power on - Adjust parameters - Place the installed battery pack on the workbench - Step on the pedal - Welding head starts to move - Spot



welding is completed - Welding head returns to its original position



  1. Welding case



Portable Battery Spot Welding 7KW Power Pneumatic Multi-Pulse Power Supply 3      Portable Battery Spot Welding 7KW Power Pneumatic Multi-Pulse Power Supply 4      Portable Battery Spot Welding 7KW Power Pneumatic Multi-Pulse Power Supply 5



FAQ



Q: How do I install and run the machine?



A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
