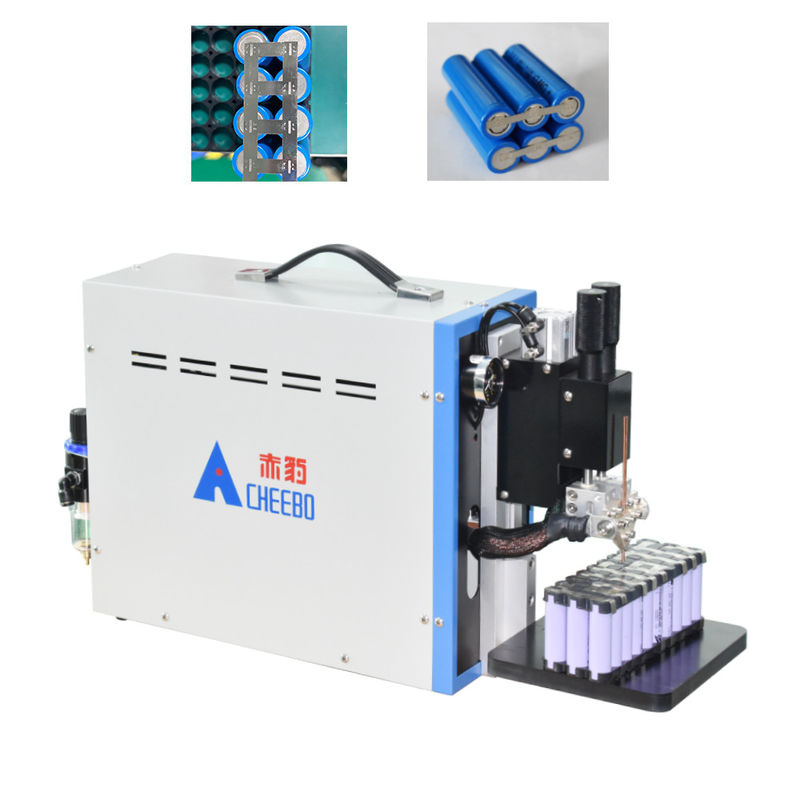

Battery Spot Welding Machine Solder Beautiful Solder Joint Solidly welded

Battery Spot Welding Machine Solder Beautiful Solder Joint Solidly welded

  • High Light

    CE Lithium Spot Welding Machine

    ,

    CE Pneumatic Spot Welder

    ,

    Pneumatic Spot Welder 5KGF

  • Portability
    Portable
  • Welding Pressure
    1-5KGF
  • Welding Thickness
    0.04-0.2mm
  • Warranty Period
    1 Year
  • Welding Method
    Manual
  • Product Name
    Portable 18650 Battery Spot Welder
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Battery Spot Welding Machine Solder Beautiful Solder Joint Solidly welded

Battery Spot Welding Machine Solder Beautiful Solder Joint Solidly Welded


Equipment introduction



● This product is a widely popular AC pulse spot welder with microcomputer microcontroller control, stable and reliable performance. Industrial grade welding equipment. Suitable for power lithium-ion battery module welding, 3C lithium-ion battery pack welding, nickel-metal hydride battery pack welding, hardware small parts welding, electronic and electrical parts welding, wire terminal welding, stainless steel parts welding, metal jewellery, copper products, aluminium products and so on. It is also suitable for product maintenance and proofing.


● Adopting single-chip control, it can realise single-pulse, multi-pulse and double-pulse welding.


● Lithium battery welding machine adopts proprietary output energy optimisation algorithm, reasonable output voltage and output current conversion, strong welding capacity, firm welding joints, correct welding, less ignition and excellent surface quality.


● Independent welding needles and spring cushion design, precise adjustment of welding pressure.


● Welding head platform can be adjusted up and down, can weld various specifications of batteries.


● Imported aluminium oxide copper electrode, pure copper welding cable, pure copper electrode clamp and other high-quality accessories, the machine is durable.


● Intelligent chip precision control, imported control chip, microsecond corresponding chip integration process, small size, can work for a long time, and stable operation.


● All parameters are set digitally, parameter adjustment is stable, intuitive and accurate.


● Welding adopts vertical spot welding with adjustable pressure depth.


● Qibao self-developed pneumatic precision welding head, with accurate pressure adjustment control.


● Digital LED display, equipment parameters adjustment is more intuitive, easy to learn and operate.


● Microcomputer technology control, grid voltage control, automatic tracking compensation.


● Portable lithium battery spot welder adopts integrated design, space-saving and easy to carry.


● Welding machine can store multiple programmes in advance, which can be changed and recalled at will.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



  1. Welding case



Battery Spot Welding Machine Solder Beautiful Solder Joint Solidly welded 0 Battery Spot Welding Machine Solder Beautiful Solder Joint Solidly welded 1 Battery Spot Welding Machine Solder Beautiful Solder Joint Solidly welded 2



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Equipment workflow



Power on -- Adjust parameters -- Place the installed battery pack on the workbench -- step on the pedal -- the welding head starts to move -- spot



welding is completed -- the welding head returns



Function Introduction

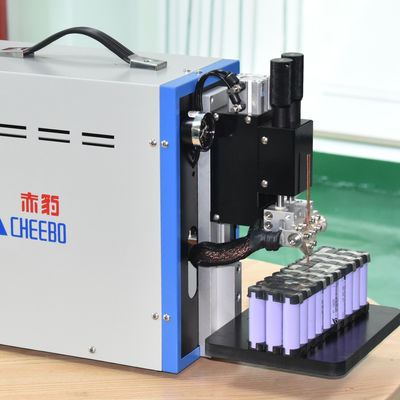

 1. Pneumatic precision welding head

The left and right electrodes of double spot welding head are pressed down at the same time, with high precision and adjustable. Flexible and fast pressurization, good pressure follow-up. High machining accuracy and small electrode inertia. The built-in local pressure sensing device is connected to the welding controller to ensure that the welding pressure meets the requirements every time.



Battery Spot Welding Machine Solder Beautiful Solder Joint Solidly welded 3

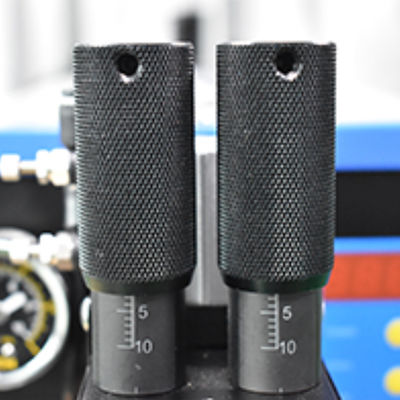

 2. Pressure regulation

The pressure of the welding head is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.



Battery Spot Welding Machine Solder Beautiful Solder Joint Solidly welded 4



 3. Operation panel

LED digital display. "+", "-" to adjust the data. "#" switch to adjust the data. Data adjustment is simple and convenient. One-click switch button.



Battery Spot Welding Machine Solder Beautiful Solder Joint Solidly welded 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
