Handheld Pneumatic Welding Portable Battery Spot Welder For 18650 Batteries

Handheld Pneumatic Welding Portable Battery Spot Welder For 18650 Batteries

  • High Light

    Handheld Welding Power Supply

    ,

    Handheld Spot Welder For 18650 Batteries

    ,

    Spot Welder For 18650 Batteries 360mm

  • L
    640MM
  • W
    200MM
  • H
    360MM
  • Product Name
    Portable Lithium Battery Spot Welder
  • Appearance Material
    Metal
  • Equipment Weight
    25KG
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Handheld Pneumatic Welding Portable Battery Spot Welder For 18650 Batteries

Handheld Pneumatic Welding Portable Battery Spot Welder For 18650 Batteries


Equipment introduction



● This product is a widely popular AC pulse spot welding machine, controlled by a microcomputer microcontroller, with stable and reliable performance. Industrial grade welding equipment. Used for power lithium-ion battery module welding, 3C lithium-ion battery pack welding, nickel metal hydride battery pack welding, hardware welding, electrical and electronic parts welding, wire terminal welding, stainless steel welding, metal jewelry welding, copper products welding, aluminum products welding. At the same time, it is also suitable for product maintenance, sampling, and other work.


● Adopting microcontroller control, it can achieve single pulse, multi pulse, and double pulse welding.


● The lithium battery welding machine adopts a proprietary output energy optimization algorithm, with reasonable conversion of output voltage and output current, strong welding ability, firm solder joints, no miswelding, low ignition, and excellent surface quality.


● Independent welding needle, spring buffering design, precise adjustment of welding pressure.


● The welding head platform can be adjusted up and down, and can weld various specifications of batteries.


● Imported high-quality aluminum oxide copper electrodes, pure copper welding cables, pure copper electrode clamps and other accessories make the machine durable and durable.


● Intelligent chip precision control, imported control chip, microsecond level corresponding chip integration process, small size, can work for a long time, and runs stably.


● All parameters are set digitally, and parameter adjustments are stable, intuitive, and accurate.


● Vertical spot welding is used for welding, and the pressure depth can be adjusted.


● Adopting CHEEBO's independently developed pneumatic precision welding head, with precise pressure regulation control.


● Digital LED display screen, device parameter adjustment is more intuitive, easy to learn and operate.


● Microcomputer technology control, power grid voltage control, automatic tracking compensation.


● Portable lithium battery spot welding machine adopts an integrated design, which saves space and is convenient to carry.


● The welding machine can store multiple programs in advance and can be freely changed and called.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Function Introduction



 1. Operation panel

LED digital display. "+", "-" to adjust the data. "#" switch to adjust the data. Data adjustment is simple and convenient. One-click switch button.

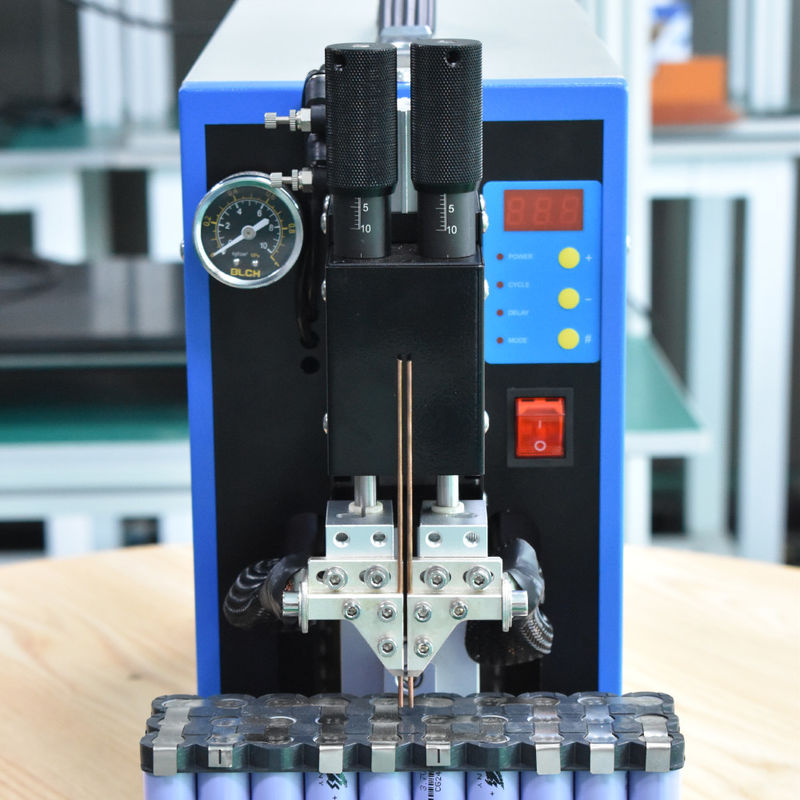

Handheld Pneumatic Welding Portable Battery Spot Welder For 18650 Batteries 0



 2. Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.



Handheld Pneumatic Welding Portable Battery Spot Welder For 18650 Batteries 1



 3. Welding table

Welding table can be adjusted up and down, loose the screw can be adjusted, simple and convenient, suitable for a variety of specifications of battery welding.



Handheld Pneumatic Welding Portable Battery Spot Welder For 18650 Batteries 2



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Debugging project
  1.  Welding pressure: 1-5 kg/F
  2.  Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters

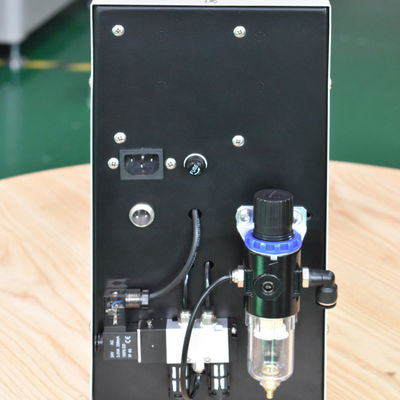

  3.  Air pressure regulation
  4.  Adjustment of needle extension length
  5.  Adjust the position under the table top
  6.  Adjust the spacing between the left and right pins
  1. Welding case



Handheld Pneumatic Welding Portable Battery Spot Welder For 18650 Batteries 3 Handheld Pneumatic Welding Portable Battery Spot Welder For 18650 Batteries 4 Handheld Pneumatic Welding Portable Battery Spot Welder For 18650 Batteries 5



Announcements
  1.  Polish the welding needle regularly.
  2.  Regularly check whether there is loosening in each part. 3. Do not disassemble and debug the equipment at will.
  3.  Do not disassemble circuit components without permission.
  4.  Periodically clean welding dust from all parts of the device.
  5.  Check the lubrication degree of each moving part every month
  6.  Please read the instructions carefully before operation and operate according to the specifications of the instructions.
