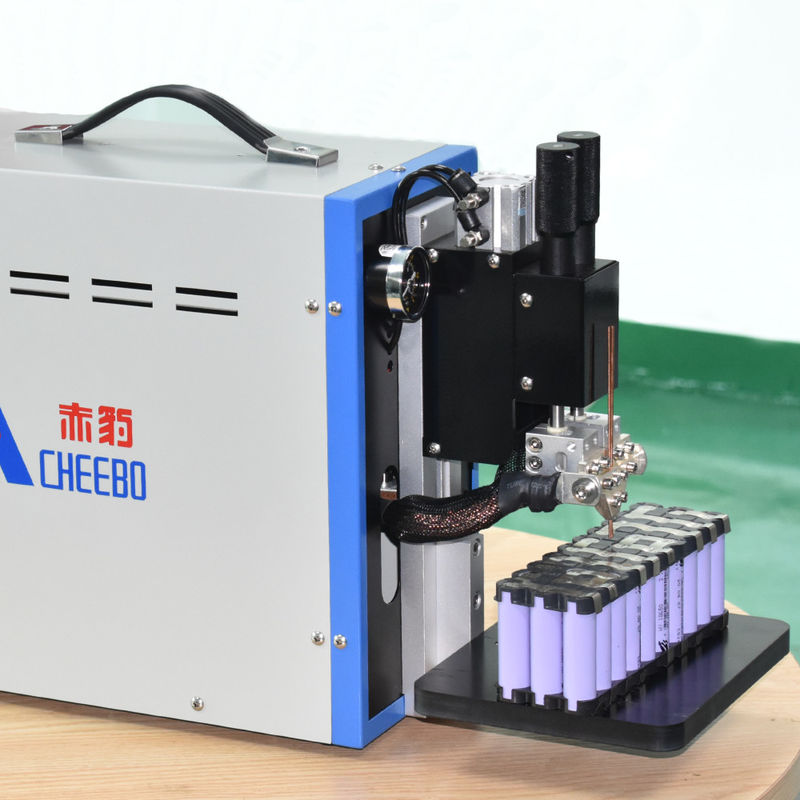

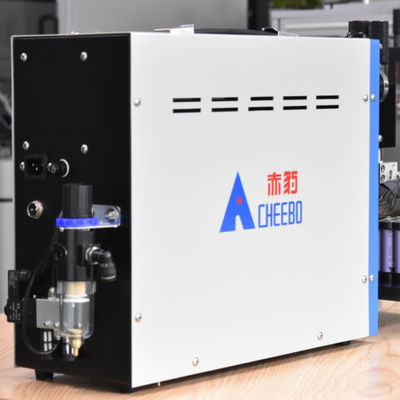

Handheld Welding Lithium Battery Equipment AC Power Pneumatic

Handheld Welding Lithium Battery Equipment AC Power Pneumatic

  • High Light

    Welding Lithium Battery Equipment

    ,

    AC Handheld Battery Spot Welder

    ,

    Pneumatic Handheld Battery Spot Welder

  • Operation Type
    Manual
  • Drive Type
    Pneumatic Pressure Drive
  • Product Name
    Portable Lithium Battery Spot Welder
  • Cable Material
    Pure Copper
  • Drive Mode
    Foot Pedal
  • Voltage
    220V/110V
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Handheld Welding Lithium Battery Equipment AC Power Pneumatic

Handheld Welding Lithium Battery Equipment AC Power Pneumatic


Product introduction



This product is a widely popular AC pulse spot welder with microcomputer single-chip control, stable and reliable performance. Industrial grade



welding equipment. It is used for power lithium-ion battery module welding, 3C lithium-ion battery pack Han Eugi, NiMH battery pack welding,



hardware small parts welding, electronic and electrical parts welding, wire terminal welding, stainless steel parts welding, metal jewelry welding,



copper products welding, aluminum products welding. It is also applicable to the work of product maintenance and proofing.



Equipment introduction



● Using single-chip microcomputer control, it can realize single-pulse, multi-pulse and double-pulse welding.


● Lithium battery welder adopts proprietary output energy optimization algorithm, reasonable output voltage and output current conversion, strong welding ability, firm solder joint, no miswelding, low ignition and excellent surface quality.


● Independent welding pin, spring cushioning design, precise adjustment of welding pressure.


● The welding head platform can be adjusted up and down, and batteries of various specifications can be welded.


● Imported high-quality alumina copper electrode, pure copper welding cable, pure copper electrode clamp and other accessories, so that the machine is durable.


● Intelligent chip precision control, imported control chip, microsecond level corresponding chip integration process, small size, can work for a long time, and stable operation.


● All parameters are set digitally, and the parameter adjustment is stable, intuitive and accurate.


● Vertical spot welding is used for welding, and the pressure depth can be adjusted.


● It adopts the pneumatic precision welding head independently developed by Cheebo, which has precise pressure adjustment control.


● Digital LED display, equipment parameter adjustment is more intuitive, easy to learn and operate.


● Microcomputer technology control, grid voltage control, automatic tracking compensation.


● Portable lithium battery spot welding machine adopts integrated design, which saves space and is easy to carry.


● The welding machine can store multiple programs in advance, which can be changed and recalled freely.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



  1. Welding case



Handheld Welding Lithium Battery Equipment AC Power Pneumatic 0 Handheld Welding Lithium Battery Equipment AC Power Pneumatic 1 Handheld Welding Lithium Battery Equipment AC Power Pneumatic 2



Function Introduction



 1. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



Handheld Welding Lithium Battery Equipment AC Power Pneumatic 3



 2. High quality cable

Pure copper cable, low resistance wire, high current carrying capacity, thick enough, and non heating during welding.



Handheld Welding Lithium Battery Equipment AC Power Pneumatic 4



 3. Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.



Handheld Welding Lithium Battery Equipment AC Power Pneumatic 5



Debugging project
  1.  Welding pressure: 1-5 kg/F
  2.  Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters
  3.  Air pressure regulation
  4.  Adjustment of needle extension length
  5.  Adjust the position under the table top
  6.  Adjust the spacing between the left and right pins
Announcements
  1.  Polish the welding needle regularly.
  2.  Regularly check whether there is loosening in each part. 3. Do not disassemble and debug the equipment at will.
  3.  Do not disassemble circuit components without permission.
  4.  Periodically clean welding dust from all parts of the device.
  5.  Check the lubrication degree of each moving part every month
  6.  Please read the instructions carefully before operation and operate according to the specifications of the instructions.
