Low Noise Lithium Ion Battery Production Equipment Cylindrical Battery Welder 7kW

Low Noise Lithium Ion Battery Production Equipment Cylindrical Battery Welder 7kW

  • High Light

    Lithium Ion Battery Production Equipment 7kW

    ,

    Low Noise Lithium Battery Production Equipment

    ,

    Cylindrical Battery Welder 7kW

  • Rated Duty Cycle
    20%
  • Product Name
    Portable Lithium Battery Spot Welder
  • Dimensions
    64CM*36CM*20CM
  • Usage
    Spot Welding
  • Power (kW)
    7
  • Weight (KG)
    30
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Low Noise Lithium Ion Battery Production Equipment Cylindrical Battery Welder 7kW

Low Noise Lithium Ion Battery Production Equipment Cylindrical Battery Welder 7kW


Equipment introduction



● Adopting single-chip control, it can realize single-pulse, multi-pulse and double-pulse welding.


● The lithium battery welder adopts proprietary output energy optimization algorithm, with reasonable output voltage and output current conversion, strong welding capacity, firm welding joints, no miswelding, low ignition and excellent surface quality.


● Independent welding pin, spring buffer design, precise adjustment of welding pressure.


● The welding head platform can be adjusted up and down, which can weld various specifications of batteries.


● Imported high-quality alumina copper electrode, pure copper welding cable, pure copper electrode clip and other accessories make the machine durable.


● Intelligent chip precision control, imported control chip, microsecond corresponding chip integration process, small size, can work for a long time, and stable operation.


● All parameters are digitally set, and the parameter adjustment is stable, intuitive and accurate.


● Adopt the vertical spot welding method for welding, and the pressure depth can be adjusted.


● Adopt CHEEBO self-developed pneumatic precision welding head with precise pressure adjustment control.


● Digital LED display, the equipment parameter adjustment is more intuitive and easy to learn and operate.


● Microcomputer technology control, grid voltage control, automatic tracking compensation.


● Portable lithium battery spot welder adopts integrated design, space-saving and easy to carry.


● The welder can pre-store several programs, which can be changed and called freely.


● Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Product introduction



This product is a widely popular AC pulse spot welder with microcomputer single-chip control, stable and reliable performance. Industrial grade



welding equipment. It is used for power lithium-ion battery module welding, 3C lithium-ion battery pack Han Eugi, NiMH battery pack welding,



hardware small parts welding, electronic and electrical parts welding, wire terminal welding, stainless steel parts welding, metal jewelry welding,



copper products welding, aluminum products welding. It is also applicable to the work of product maintenance and proofing.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 25KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.

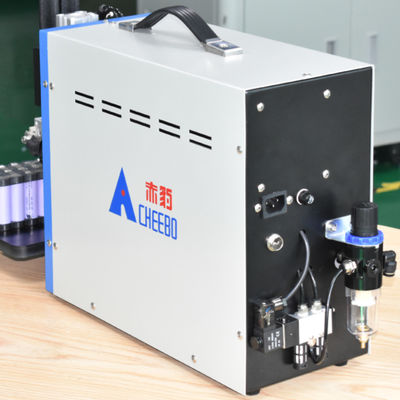

Low Noise Lithium Ion Battery Production Equipment Cylindrical Battery Welder 7kW 0



 2. High quality cable

Pure copper cable, low resistance wire, high current carrying capacity, thick enough, and non heating during welding.



Low Noise Lithium Ion Battery Production Equipment Cylindrical Battery Welder 7kW 1

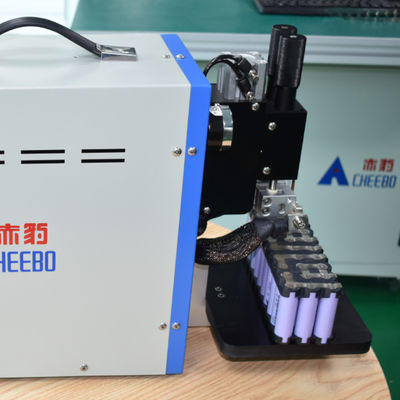

 3. Pneumatic precision welding head

The left and right electrodes of the double point welding head are pressed down simultaneously, which is precise and adjustable. Flexible and rapid pressurization, with good pressure follow-up. High machining accuracy and low electrode inertia. The built-in pressure in place sensing device is connected to the welding controller to ensure that each welding pressure meets the requirements.



Low Noise Lithium Ion Battery Production Equipment Cylindrical Battery Welder 7kW 2



Debugging project
  1.  Welding pressure: 1-5 kg/F
  2.  Welding energy adjustment: "+" to increase energy, "-" to reduce energy, "#" to switch parameters
  3.  Air pressure regulation
  4.  Adjustment of needle extension length
  5.  Adjust the position under the table top
  6.  Adjust the spacing between the left and right pins
  1. Welding case



Low Noise Lithium Ion Battery Production Equipment Cylindrical Battery Welder 7kW 3 Low Noise Lithium Ion Battery Production Equipment Cylindrical Battery Welder 7kW 4 Low Noise Lithium Ion Battery Production Equipment Cylindrical Battery Welder 7kW 5
