18650 Lithium Ion Mini Portable Battery Spot Welder Multipulse Power Supply

18650 Lithium Ion Mini Portable Battery Spot Welder Multipulse Power Supply

  • High Light

    Mini Portable Battery Spot Welder

    ,

    18650 Portable Battery Spot Welder

    ,

    Lithium Ion Battery Welder 18650

  • Welding Type
    Spot Welding
  • Product Name
    Portable Lithium Battery Spot Welder
  • Needle Type
    Conve /pointed
  • Application Scenarios
    Battery Pack Welding
  • Welding Manner
    Single Side Horizontal Spot Welding
  • Effect
    Spot Welding
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Custom wooden frame packing
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

18650 Lithium Ion Mini Portable Battery Spot Welder Multipulse Power Supply

18650 Lithium Ion Mini Portable Battery Spot Welder Multipulse Power Supply


Equipment introduction



● Using single-chip microcomputer control, can realize single pulse, multi-pulse, double pulse welding.



● Using the proprietary output energy optimization algorithm, reasonable output voltage and output current conversion, strong welding

ability, firm solder joints, no miswelding, low ignition, excellent surface quality.



● Independent welding needle, spring buffer design, welding pressure precise adjustment.



● The welding head platform can be adjusted up and down, and can weld various specifications of batteries.



● The pneumatic precision welding head independently developed by CHEEBO, with accurate pressure regulation control.



● Digital LED display screen, equipment parameters adjustment is more intuitive, easy to learn and operate.



● Microcomputer technology control, power grid voltage control, automatic tracking and compensation.



● Portable lithium battery spot welding machine adopts integrated design to save space and is easy to carry.



● The welder can store multiple programs and can change and call freely.



● Imported high-quality alumina copper electrode, pure copper welded cable, pure copper electrode clip and other accessories, make

the machine durable.



● Intelligent chip precision control, imported control chip, microsecond level corresponding chip integration process, small volume,

can work for a long time, and stable operation.



● All the parameters are set digitally, and the parameter adjustment is stable, intuitive and accurate.



● Compact structure, small size, high power, large industrial circuit design, the welding process is safe and reliable.



● This product is currently widely popular AC pulse spot welding machine, using microcomputer microcontroller control, stable anreliable performance. Industrial-grade welding equipment. Used for power lithium ion battery module welding, 3C lithium ion battery

pack welding, nickel metal hydride battery pack welding, hardware welding, electrical and electronic parts welding, wire terminal

welding, stainless steel welding, metal jewelry welding, copper products welding, aluminum products welding.



Function Introduction

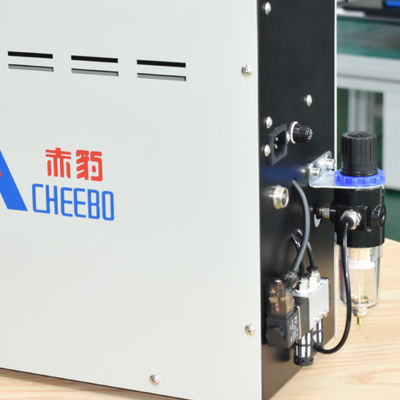

 1.  Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.

18650 Lithium Ion Mini Portable Battery Spot Welder Multipulse Power Supply 0

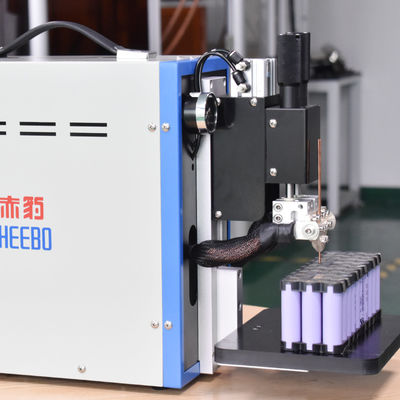

2. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.

18650 Lithium Ion Mini Portable Battery Spot Welder Multipulse Power Supply 1



 3.  High quality cable

Pure copper cable, low resistance wire, high current carrying capacity, thick enough, and non heating during welding.



18650 Lithium Ion Mini Portable Battery Spot Welder Multipulse Power Supply 2



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



  1. Welding case



18650 Lithium Ion Mini Portable Battery Spot Welder Multipulse Power Supply 3 18650 Lithium Ion Mini Portable Battery Spot Welder Multipulse Power Supply 4 18650 Lithium Ion Mini Portable Battery Spot Welder Multipulse Power Supply 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
