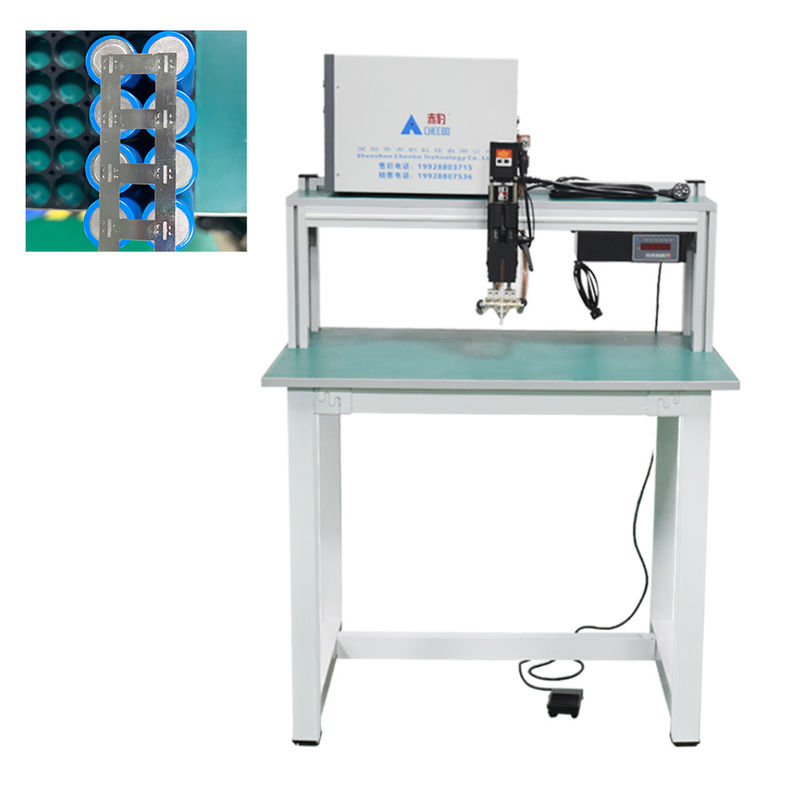

21700 Battery Tab Spot Welder Automatic High Precision Resistance Type

21700 Battery Tab Spot Welder Automatic High Precision Resistance Type

  • High Light

    Battery Tab Spot Welder 21700

    ,

    High Precision Battery Tab Spot Welder

    ,

    21700 Battery Automatic Spot Welder

  • Showroom Location
    China
  • Video Outgoing-inspection
    Provided
  • Marketing Type
    New Product 2020
  • Dimensions
    640mm*360mm*200mm
  • Usage
    Spot Welding
  • Warranty
    1 Year
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-26
  • Price
    $1,000.00/sets 1-2 sets
  • Packaging Details
    Custom wooden frame packing
  • Supply Ability
    20 Set/Sets per Week

21700 Battery Tab Spot Welder Automatic High Precision Resistance Type

18650 21700 Battery Tab Spot Welding Machine Resistance Welding


Equipment introduction



● The spot welding machine for lithium battery adopts pure electric cylinder-less design, with low noise and stable pressure.


● Motor drive, precise control of control box, adjustable in three modes.


● CBLD-26 multi-pulse spot welding machine for lithium battery adopts a proprietary output energy optimization algorithm, with reasonable conversion of output voltage and output current, strong welding ability, firm solder joint, no virtual welding, small cremation and excellent surface quality.


● Independent research and development of precision welding head, precise pressure adjustment and control.


● Microcomputer technology control, power grid voltage control, automatic tracking compensation.


● Applicable battery specifications: minimum not less than 50MM and maximum not more than 130 mm.. (Can be used for augmentation type)


● The welding platform adopts high-quality tempered glass to protect the desktop from abrasion during welding.


● The vertical spot welding method is spot welding, and the pressure depth is controlled manually.


● Digital LED display makes the adjustment of equipment parameters more intuitive and easy to learn and operate.


● The welder can pre-store multiple programs, which can be changed and called at will.


● Compact structure, small volume, high power, large industrial circuit design and safe and reliable welding process.



  1. Welding case

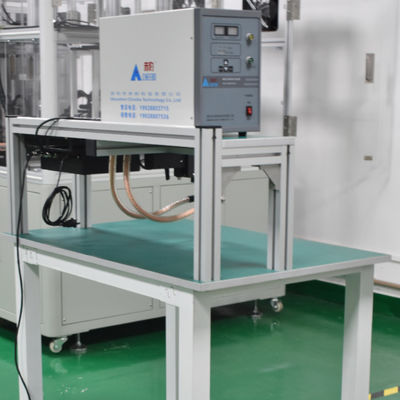

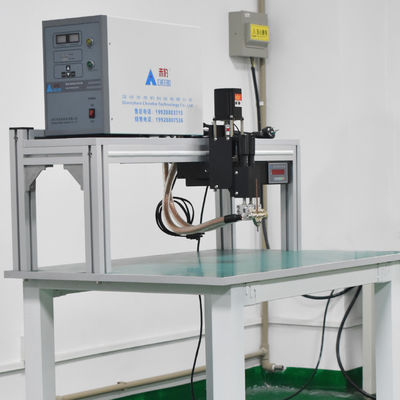

21700 Battery Tab Spot Welder Automatic High Precision Resistance Type 0      21700 Battery Tab Spot Welder Automatic High Precision Resistance Type 1         21700 Battery Tab Spot Welder Automatic High Precision Resistance Type 2



Boundary dimension

21700 Battery Tab Spot Welder Automatic High Precision Resistance Type 3



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Multi-pulse welding power supply

Proprietary output energy optimization algorithm, output voltage and output current transformation is reasonable, strong welding ability, solid solder joint, no virtual welding, small cremation, excellent surface quality.

21700 Battery Tab Spot Welder Automatic High Precision Resistance Type 4



 2.  Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.

21700 Battery Tab Spot Welder Automatic High Precision Resistance Type 5



 3.  Electric control

No additional air source, low noise, fast welding speed, stable pressure.

21700 Battery Tab Spot Welder Automatic High Precision Resistance Type 6



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
