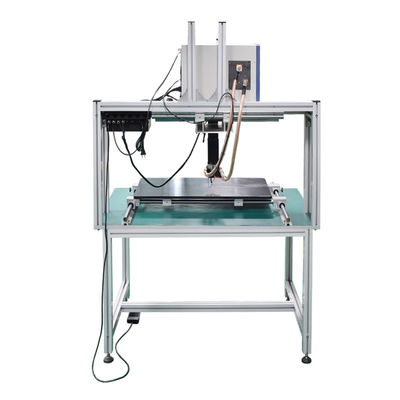

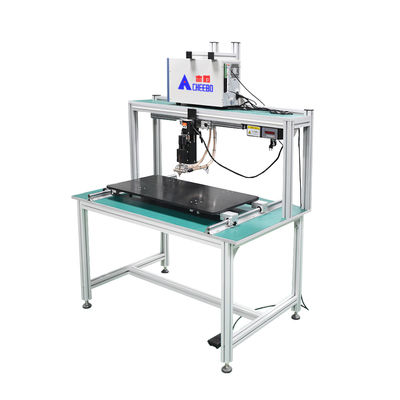

Electric Bench Resistance Welder Battery Tab Spot Welding Machine

Electric Bench Resistance Welder Battery Tab Spot Welding Machine

  • High Light

    Gantry Frame Bench Spot Welder


    Double Point Bench Spot Welder


    Gantry Frame Battery Cell Welding Machine

  • Product Name
    Guide Rail Lithium Battery Spot Welding Machine
  • XY Axis Travel
    750*350MM (Manual Slide)
  • Welding Power Supply
  • Welding Speed
  • Welding Pressure
  • Driving Mode
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
  • Minimum Order Quantity
    1 set
  • Price
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Electric Bench Resistance Welder Battery Tab Spot Welding Machine

Electric Bench Resistance Welder Battery Tab Spot Welding Machine

Equipment introduction

​​● Pure electric without cylinder, low noise, fast speed, and stable pressure

​​● Double guide rails are thickened and thickened, ensuring a stable and firm chassis that is not easily deformed. The welding head can move left and right up and down, and can be moved according to the size of the battery pack, making it convenient for welding.

​​● Independently developed precision welding machine head, with precise pressure regulation and control.

​​● The desktop guide rail can be pushed and pulled back and forth, with a stroke of 750 * 350mm.

​​● The guide rail is easy to move, time-saving and labor-saving, greatly reducing welding time and improving manual welding speed.

​​● The spot welding process does not require pushing the battery pack, which is labor-saving and fast. The platform can carry a load of 50KG, making it particularly suitable for welding large battery packs.

​​● Transistor welding power supply with fast current rise speed, achieving high-quality welding in a short period of time.

​​● There are three welding modes: constant voltage, constant current, and constant voltage current.

​​● Compact structure, small size, high power, no need for welding transformers.

​​● Controlled by microcomputer technology, real-time monitoring of welding voltage, current, and resistance waveforms.

​​● 5.7 inch high-definition LED display, device parameter adjustment is convenient and intuitive, and multiple programs can be pre stored.

​​● Energy saving and environmental protection, stable and efficient, and low equipment power consumption.

Technical specification

Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Welding thickness 0.02-0.5MM Welding power supply Transistor
Supply current 5000A*8000A*10000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
XY axis travel 750*350MM (Manual slide) Welding pressure 700*1200*1450MM
Driving mode Electric Machine Weight 70KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding
  1. Welding case

Electric Bench Resistance Welder Battery Tab Spot Welding Machine 0      Electric Bench Resistance Welder Battery Tab Spot Welding Machine 1      Electric Bench Resistance Welder Battery Tab Spot Welding Machine 2

Function Introduction

 1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Electric Bench Resistance Welder Battery Tab Spot Welding Machine 3


 2. Electric control

No additional air source, low noise, fast welding speed, stable pressure.Electric Bench Resistance Welder Battery Tab Spot Welding Machine 4


 3. Guide rail design

Double guide rail thickening design, the chassis is stable and firm, not easy to deformation. The guide rail can move left and right, and the welding head part is also equipped with a guide rail design, which is suitable for large battery assembly and welding, saving time and effort.


Electric Bench Resistance Welder Battery Tab Spot Welding Machine 5


Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.


Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.


Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.


Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.


Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

Service process
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
