Semi Automatic Spot Welder Cylindrical 18650 Resistance Spot Welding Machine

Semi Automatic Spot Welder Cylindrical 18650 Resistance Spot Welding Machine

  • High Light

    Lithium Semi Automatic Spot Welder

    ,

    Bench Type Semi Automatic Spot Welder

    ,

    Cylindrical 18650 Tab Welder

  • Product Name
    Transistor Electric Lithium Battery Spot Welder
  • Max. Welding Thickness
    0.5MM(More Than 0.2mm Should Be Slotted)
  • Usage
    Lithium Battery Pack Welding
  • Welding Thickness
    Pure Nickel/nickel Plated Steel
  • Power(w)
    300W
  • Voltage Upper And Lower Limits Set
    0.00-9.99V
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

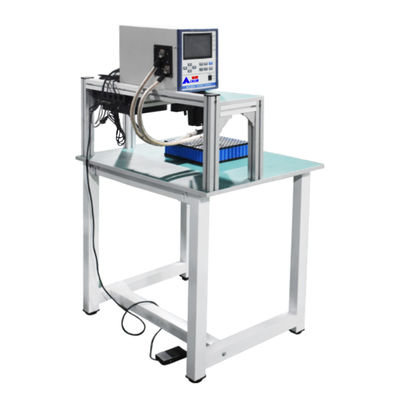

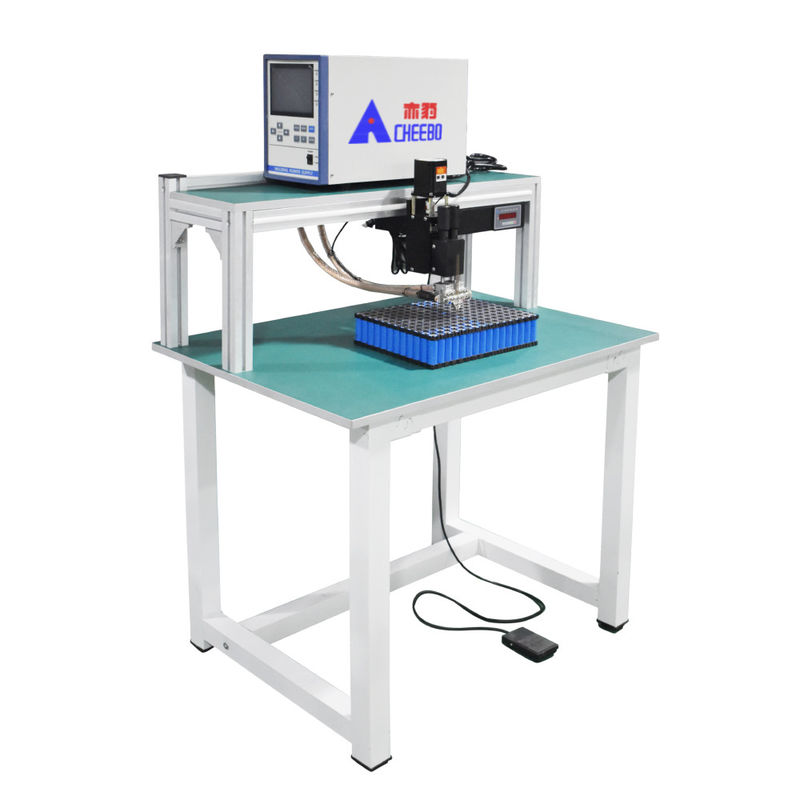

Semi Automatic Spot Welder Cylindrical 18650 Resistance Spot Welding Machine

Lithium Semi Automatic Spot Welder Cylindrical 18650 Resistance Spot Welding Machine


Applicable scope



Power lithium-ion battery module assembly and welding, 3C lithium-ion battery pack welding and assembly, nickel-metal hydride battery pack spot



welding, hardware welding, electrical and electronic parts welding, wire terminal welding, stainless steel welding, metal jewelry welding, copper



products welding, aluminum products welding.



Equipment introduction

The lithium battery spot welding machine independently developed by cheebo is pure electric without cylinder, low noise and stable pressure.


The battery spot wlder is powered by a motor, accurately controlled by a control box and adjustable in three modes.


Lithium battery spot welding machine using transistor power supply, power supply built-in pre-check function, before welding power can be used to determine whether the work workpiece.


Transistor power supply lithium battery spot welder, welding current can be efficiently and quickly switched through the transistor control, no transformer required.


Self-developed precision welding head, precise pressure adjustment control.


5.7 inch HD LED display, device parameter adjustment is convenient and intuitive, multiple programs can be pre-stored.


There are three welding modes: constant voltage, constant current and constant voltage current combination.


The welding power supply is controlled by switching mode, which can realize small and efficient welding with high output.


The welding current of the power supply rises quickly, and high quality welding is achieved in a short time.


The waveform of welding current, voltage, power and resistance is dynamically and real-time monitored.


There are three control modes: fixed current, fixed voltage, fixed current and fixed voltage combination mode.


Add connect point function, effectively improve production efficiency.


Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform.



Technical specification
Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Electric precision welding head

Motor driven welding, without the need for external solenoid valves and cylinders, with low noise. Horizontal welding structure, double linear guide rail design, left and right pressure can be adjusted separately. Built in pressure sensor for precise control and stable pressure application.

Semi Automatic Spot Welder Cylindrical 18650 Resistance Spot Welding Machine 0



 2. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

Semi Automatic Spot Welder Cylindrical 18650 Resistance Spot Welding Machine 1



 3. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.

Semi Automatic Spot Welder Cylindrical 18650 Resistance Spot Welding Machine 2



Boundary dimension

Semi Automatic Spot Welder Cylindrical 18650 Resistance Spot Welding Machine 3

  1. Welding case



Semi Automatic Spot Welder Cylindrical 18650 Resistance Spot Welding Machine 4       Semi Automatic Spot Welder Cylindrical 18650 Resistance Spot Welding Machine 5        Semi Automatic Spot Welder Cylindrical 18650 Resistance Spot Welding Machine 6



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers

can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
