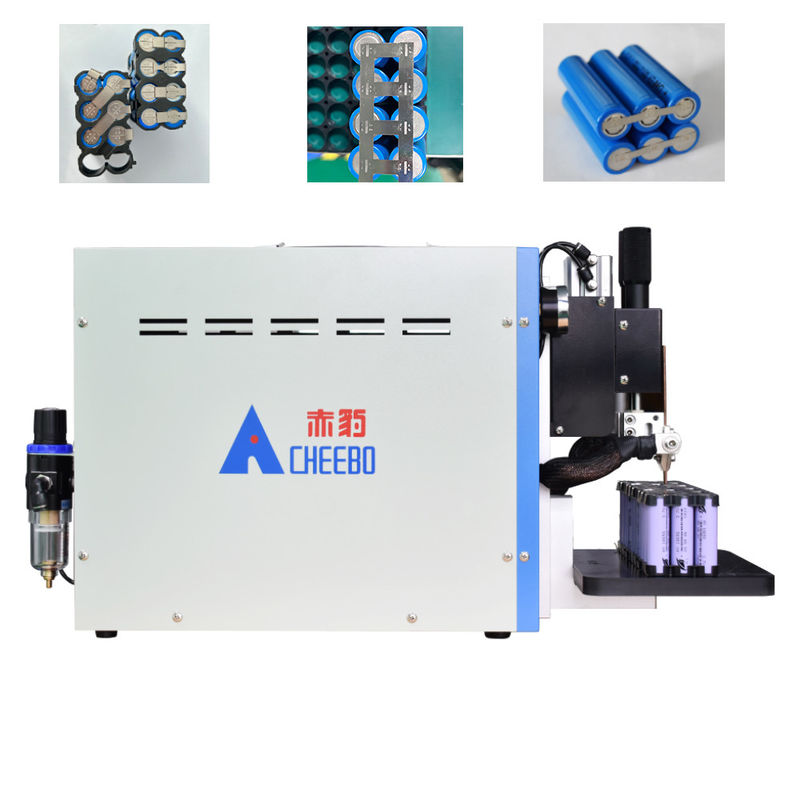

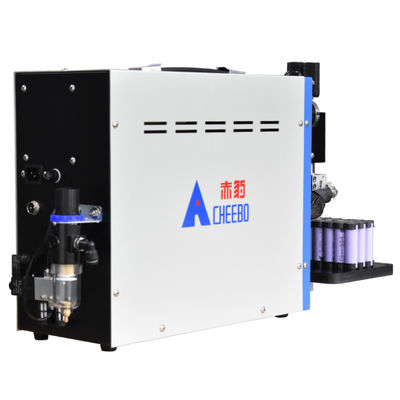

Industrial High Power Portable Battery Spot Welder Fast Welding Speed

Industrial High Power Portable Battery Spot Welder Fast Welding Speed

  • High Light

    Adjustable Portable Battery Spot Welder

    ,

    Power Supply Portable Battery Spot Welder

    ,

    Adjustable Battery Cell Welder

  • Welding Method
    Resistance Welding
  • Welding Thickness
    0.2mm
  • Appearance Material
    Metal Shell
  • Welding Height
    Adjustable
  • Product Name
    18650 Battery Spot Welder
  • Display
    LED Display
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBXPH-300
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Industrial High Power Portable Battery Spot Welder Fast Welding Speed

Industrial High Power Portable Battery Spot Welder Fast Welding Speed


Equipment introduction



● This product is a widely popular AC pulse spot welder with microcomputer microcontroller control, stable and reliable performance. Industrial grade welding equipment.


● Lithium battery welding machine adopts the proprietary output energy optimisation algorithm, the output voltage and output current conversion is reasonable, strong welding capacity, firm welding joints, welding correctly, less fire, excellent surface quality.


●Intelligent chip precision control, imported control chip, microsecond corresponding chip integration process, small size, can work for a long time, and stable operation.


●Independent welding needle, spring buffer design, precise adjustment of welding pressure.


●Welding head platform can be adjusted up and down, can weld various specifications of batteries.


●Using microcontroller control, can realise single pulse, multi-pulse and double pulse welding.


●Imported aluminium oxide copper electrode, pure copper welding cable, pure copper electrode clamp and other high-quality accessories, the machine is durable.


●All parameters are set digitally, the parameter adjustment is stable, intuitive and accurate.


●Welding adopts vertical spot welding with adjustable pressure depth.


●Qibao self-developed pneumatic precision welding head, with accurate pressure adjustment control.


●Digital LED display, equipment parameters adjustment is more intuitive, easy to learn and operate.


●Microcomputer technology control, grid voltage control, automatic tracking compensation.


●Portable lithium battery spot welder adopts integrated design, space-saving and easy to carry.


●Welding machine can store multiple programmes in advance, which can be changed and recalled at will.


●Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Product usage



This product is a widely popular AC pulse spot welder with microcomputer single-chip machine control, stable and reliable performance. Industrial



grade welding equipment. Used for power lithium-ion battery module welding, 3C lithium-ion battery pack welding, nickel-metal hydride battery



pack welding, hardware welding, electrical and electronic parts welding, wire terminal welding, stainless steel welding, metal jewellery welding,



copper products welding, aluminium products welding. It is also suitable for product repair and proofing and other work.



Technical specification



Welding thickness 0.04-0.2MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 150MM (Maximum pitch adjustable)
Supply current 3200A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 7KW Equipment size 640*200*360MM
Driving mode Pneumatic Machine Weight 25KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction

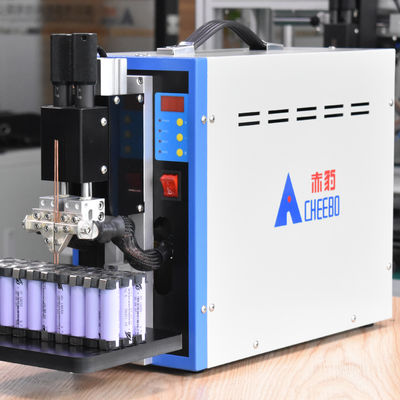

 1. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



Industrial High Power Portable Battery Spot Welder Fast Welding Speed 0



 2. Operation panel

LED digital display. "+", "-" to adjust the data. "#" switch to adjust the data. Data adjustment is simple and convenient. One-click switch button.



Industrial High Power Portable Battery Spot Welder Fast Welding Speed 1



 3. Pressure regulation

The welding head pressure is adjustable from 1-10KG to ensure good welding results of different thicknesses and materials.



Industrial High Power Portable Battery Spot Welder Fast Welding Speed 2



  1. Welding case



Industrial High Power Portable Battery Spot Welder Fast Welding Speed 3 Industrial High Power Portable Battery Spot Welder Fast Welding Speed 4 Industrial High Power Portable Battery Spot Welder Fast Welding Speed 5



FAQ



Q: How do I install and run the machine?



A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.
