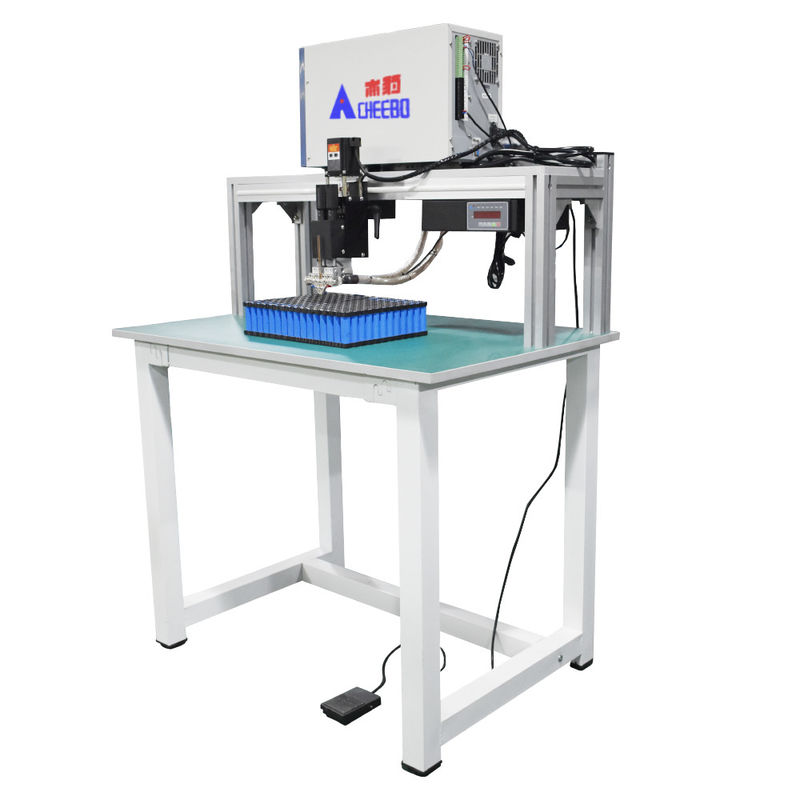

Electric Foot Control Lithium Battery Spot Welder 18650 Battery Spot Welder

Electric Foot Control Lithium Battery Spot Welder 18650 Battery Spot Welder

  • Highlight

    Foot Control Lithium Battery Spot Welder

    ,

    Foot Control Battery Cell Welder

    ,

    Cylindrical Battery Cell Welder

  • Equipment Selling Point
    High Precision
  • Welding Speed
    180P/M
  • Welding Mode
    3 Ways
  • Power Screen
    5.7 Inches
  • Equipment Size
    0.6M*0.9M*1.4M
  • Product Name
    Transistor Electric Lithium Battery Spot Welder
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Electric Foot Control Lithium Battery Spot Welder 18650 Battery Spot Welder

Electric Foot Control Lithium Battery Spot Welder 18650 Battery Spot Welder


Equipment introduction

◆ The Welding power supply is controlled by switch mode, which can realize small and efficient welding with high output.


◆ The welding current of the power supply increases rapidly, achieving high-quality welding in a short period of time.


◆ Servo electric welding head, high welding efficiency. Built in precision bearings for precise pressure control without damaging the battery


◆ Energy saving and environmental protection, stable and efficient, and low power consumption.


◆ The independently developed electric control box: precisely controls the high-speed operation of the motor. Adjustable movement mode: single point/semi-automatic/automatic.


◆ There are three welding methods: fixed voltage, fixed current, and combination of fixed voltage and current.


◆ Micro computer technology control, control voltage grid connection, automatic tracking and compensation.


◆ Applicable battery specifications: minimum not less than 50MM, maximum not greater than 130MM.


◆ High quality tempered glass is used to protect the desktop from wear and tear during the welding process.


◆ Vertical spot welding method is used for spot welding, and the pressing depth is manually controlled.


◆The welding machine can pre store multiple programs, which can be freely changed and called.


◆ Compact structure, small size, high power, large industrial circuit design, safe and reliable welding process.



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding

Device action flow description

Power on - Check if the WELED switch is turned on - Turn on the motion control system power - Welding head action - Find the origin position -



Place the product that needs to be welded on the desktop - Step on the foot pedal - Welding head pressing down - Welding head completed -



Welding head returning to its original position



  1. Welding case



Electric Foot Control Lithium Battery Spot Welder 18650 Battery Spot Welder 0 Electric Foot Control Lithium Battery Spot Welder 18650 Battery Spot Welder 1 Electric Foot Control Lithium Battery Spot Welder 18650 Battery Spot Welder 2



Function Introduction



 1. Transistor welding power supply

Welding energy output is the most stable power source, displaying real-time welding voltage and current waveforms. The current rises quickly and can achieve high-quality welding in a short period of time.



Electric Foot Control Lithium Battery Spot Welder 18650 Battery Spot Welder 3

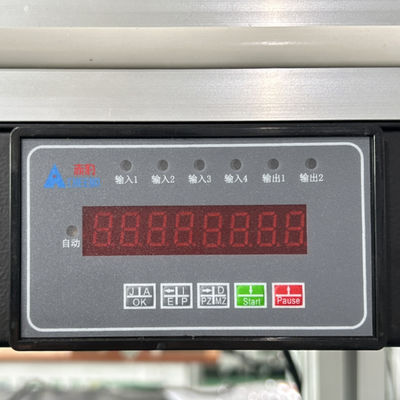

 2. Electric control

No additional air source, low noise, fast welding speed, stable pressure.



Electric Foot Control Lithium Battery Spot Welder 18650 Battery Spot Welder 4



 3. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. It can weld various types of cells with different heights.



Electric Foot Control Lithium Battery Spot Welder 18650 Battery Spot Welder 5



FAQ



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.

Electric Foot Control Lithium Battery Spot Welder 18650 Battery Spot Welder 6

Service process
Pre-sale:
1. Customers send inquiries and inquiries
2. Recommend products according to customer needs
3. Video communication to confirm final requirements
4. Both parties shall deliver the confirmation of technical specifications
5. Both parties sign the contract
6. Place orders and arrange production in the workshop
7. Arrange delivery
After sale:
1. Confirm whether customers need on-site service or video communication guidance for debugging equipment.
2. If there is any problem with the equipment, video communication will be adopted to solve the problem first. Door-to-door service can be provided if there is no solution.

Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
