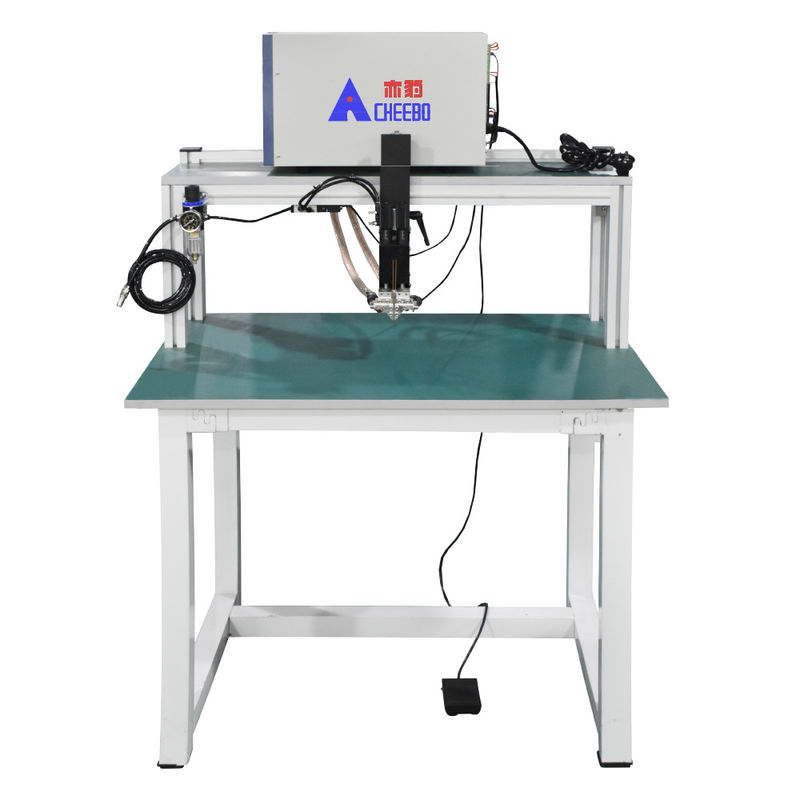

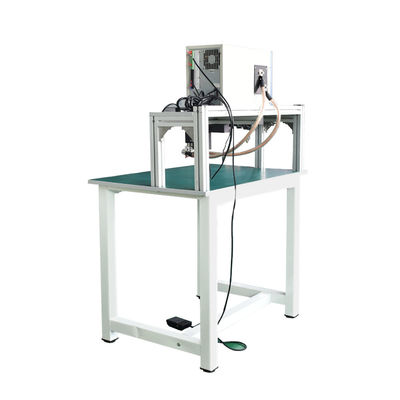

Transistor Power Supply Battery Tab Welder Lithium Battery Welding Machine

Transistor Power Supply Battery Tab Welder Lithium Battery Welding Machine

  • High Light

    Power Supply Battery Tab Welder

    ,

    Transistor Type Lithium Battery Welding Machine

    ,

    Power Supply Lithium Battery Welding Machine

  • Product Name
    Transistor Pneumatic Lithium Battery Spot Welder
  • Condition
    New
  • Dimensions
    900*600*1420mm
  • Voltage
    DC 220V 50/60Hz
  • Weight (KG)
    60 KG
  • Machine Type
    Semi-automatic
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5000A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Transistor Power Supply Battery Tab Welder Lithium Battery Welding Machine

Transistor Power Supply Battery Tab Welder Lithium Battery Welding Machine


Equipment introduction



● Welding power control adopts switch switching mode, which can realize small, efficient and high output welding



● The rising speed of welding current is very fast, which is most suitable for ultra-precision welding.



● The following three control modes are available :① constant current control ② constant voltage control ③ combination control of constant current and constant voltage



● The energy stored in the capacitor is used for welding and can be used in small power supply conditions.



● The waveform of current, voltage, power and resistance is dynamically detected in real time.



● Automatic welding current monitoring function, can effectively monitor welding output current, welding current exceeds the alarm timely supplement welding.



● Precision microcomputer technology control, can save a number of programs, free to change the call.



● Proprietary OUTPUT ENERGY OPTIMIZATION ALGORITHM, output voltage and output current transformation is reasonable, strong welding ability, solid solder joint, no welding, small CREmation, good welding quality.



● Industrial circuit design, circuit safety and reliability.



Application scope of the product



Power lithium-ion battery module, 3C lithium-ion battery pack, nickel-metal hydride battery pack, hardware small parts, electronic and electrical



parts, wire terminals, stainless steel parts, metal jewelry, copper products, aluminum products, etc. At the same time, it is also suitable for product



maintenance proofing and other work.



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.

Transistor Power Supply Battery Tab Welder Lithium Battery Welding Machine 0



 2. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.

Transistor Power Supply Battery Tab Welder Lithium Battery Welding Machine 1



 3. Transistor power supply

The welding current rises very fast, achieving high quality welding in a short time. The waveform of welding current, voltage and resistance is dynamically and real-time detected. Built-in pre-check function, welding work can be judged before welding power.

Transistor Power Supply Battery Tab Welder Lithium Battery Welding Machine 2



  1. Welding case



Transistor Power Supply Battery Tab Welder Lithium Battery Welding Machine 3       Transistor Power Supply Battery Tab Welder Lithium Battery Welding Machine 4       Transistor Power Supply Battery Tab Welder Lithium Battery Welding Machine 5



Equipment workflow



Power on -- check whether the WELED switch is turned on -- place the product to be welded on the desktop -- Step on the foot pedal -- push down



the welding head -- spot welding completed -- return the welding head



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
