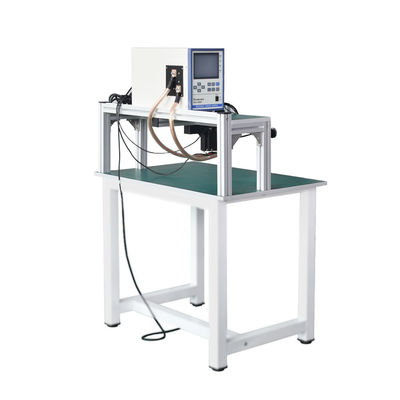

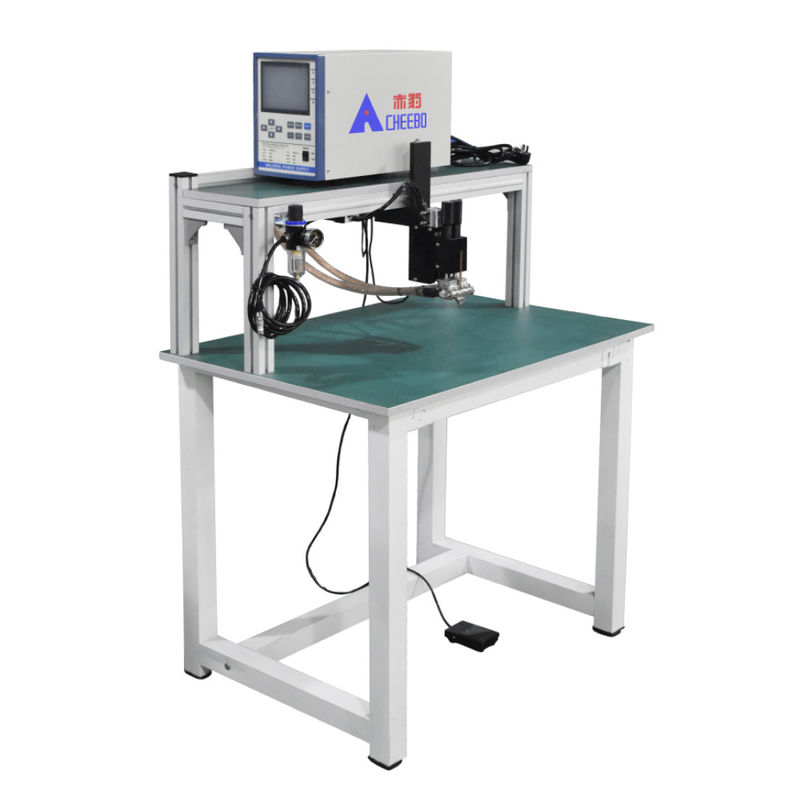

Pneumatic Lithium Battery Tab Spot Welding Machine Table Model 18650 Tab Welder

Pneumatic Lithium Battery Tab Spot Welding Machine Table Model 18650 Tab Welder

  • High Light

    Pneumatic Battery Tab Spot Welding Machine

    ,

    Lithium Battery Tab Spot Welding Machine

    ,

    Pneumatic 18650 Tab Welder

  • Max. Welding Thickness
    0.02~0.2mm
  • Product Name
    Transistor Pneumatic Lithium Battery Spot Welder
  • Color
    Blue + Silver
  • Application
    Metal Welding
  • Welding Time
    0.00-9.99ms
  • Type
    Resistance Welding
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5A
  • Minimum Order Quantity
    1 set
  • Price
    EGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Pneumatic Lithium Battery Tab Spot Welding Machine Table Model 18650 Tab Welder

Pneumatic Lithium Battery Tab Spot Welding Machine Table Model 18650 Tab Welder


Equipment introduction

cheebo lithium battery spot welding machine adopts self-developed precision welding head, and the pressure is accurately adjusted and controlled.


CBLQ-5ABattery nickel welding machine does not require welding transformers, small, lightweight, beautiful.


18650 Battery Spot Welding Machine has three control modes: constant current, constant voltage, constant current and constant voltage combination mode.


Built-in pre-check function, can be used to judge the work piece before welding power


lithium battery spot welding machine Welding current can be quickly and efficiently switched through transistors without the need for a transformer


The welding power supply is controlled by switching mode, which can realize small and efficient welding with high output.


The welding current of the power supply rises quickly, and high quality welding is achieved in a short time.


lithium ion battery pack spot welding machine added to connect the point function, effectively improve production efficiency.


Self-developed precision welding head, precise pressure adjustment control.


Microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform.


5.7 inch HD LED display, device parameter adjustment is convenient and intuitive, multiple programs can be pre-stored.


There are three welding modes: constant voltage, constant current and constant voltage current combination.



Device action flow description

Power on -- check whether the WELED switch is turned on -- place the product to be welded on the desktop -- Step on the foot pedal -- push down



the welding head -- spot welding completed -- return the welding head



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



  1. Welding case



Pneumatic Lithium Battery Tab Spot Welding Machine Table Model 18650 Tab Welder 0        Pneumatic Lithium Battery Tab Spot Welding Machine Table Model 18650 Tab Welder 1       Pneumatic Lithium Battery Tab Spot Welding Machine Table Model 18650 Tab Welder 2



Function Introduction



 1. Transistor power supply

The welding current rises very fast, achieving high quality welding in a short time. The waveform of welding current, voltage and resistance is dynamically and real-time detected. Built-in pre-check function, welding work can be judged before welding power.



Pneumatic Lithium Battery Tab Spot Welding Machine Table Model 18650 Tab Welder 3



 2. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



Pneumatic Lithium Battery Tab Spot Welding Machine Table Model 18650 Tab Welder 4



 3. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.



Pneumatic Lithium Battery Tab Spot Welding Machine Table Model 18650 Tab Welder 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
