18650 Cylindrical Lithium Battery Spot Welder Pneumatic Precision Welding Head

18650 Cylindrical Lithium Battery Spot Welder Pneumatic Precision Welding Head

  • High Light

    Cylindrical Spot Welder Accessories

    ,

    Cylindrical Table Spot Welding Machine

    ,

    Table Spot Welding Machine 18650

  • Input Power
    2.5KW
  • Input Voltage
    220V/50HZ
  • Product Name
    Battery Tab Spot Welding Machine
  • Welding Method
    Spot Welding
  • Welding Time
    0.00-9.99MS
  • Welding Head Height
    50-130MM
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

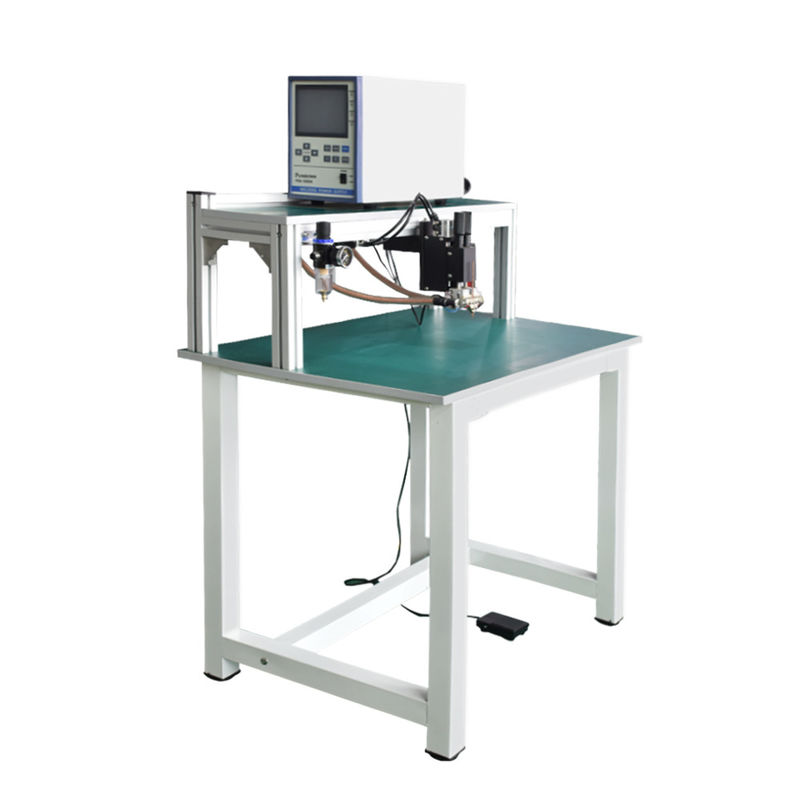

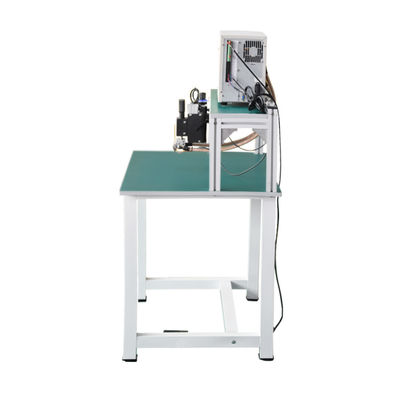

18650 Cylindrical Lithium Battery Spot Welder Pneumatic Precision Welding Head

18650 Cylindrical Lithium Battery Spot Welder Pneumatic Precision Welding Head


Equipment introduction

CHEEBO lithium battery spot welding machine adopts self-developed precision welding heads, with precise pressure regulation and control.


● Transistor Welding power supply is used for this type of welding, and no welding transformer is required inside. It is small, light and beautiful.


There are three control methods for the 18650 battery spot welding machine: constant current, constant voltage, constant current, and constant voltage combination.


Equipped with built-in pre inspection function, it can judge the workpiece before welding.


The welding current of lithium battery spot welding machines can be quickly and effectively switched through transistors without the need for transformers


● The Welding power supply is controlled by switch mode, which can realize small and efficient high output welding.


The welding current of the power supply rapidly increases, achieving high-quality welding in a short period of time.


The lithium-ion battery pack spot welding machine has added continuous spot welding function, which can effectively improve production efficiency.


Independently developed precision welding heads with precise pressure regulation control.


Adopting microcomputer technology control, real-time monitoring of welding voltage, current, and resistance waveforms.


5.7 inch high-definition LED display screen, convenient and intuitive device parameter adjustment, and can store multiple programs in advance.



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Application case



1. Energy storage battery pack         2. Electric bicycle battery pack          3. Power tool battery pack



18650 Cylindrical Lithium Battery Spot Welder Pneumatic Precision Welding Head 0       18650 Cylindrical Lithium Battery Spot Welder Pneumatic Precision Welding Head 1       18650 Cylindrical Lithium Battery Spot Welder Pneumatic Precision Welding Head 2



Function Introduction



 1. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.

18650 Cylindrical Lithium Battery Spot Welder Pneumatic Precision Welding Head 3

 2. Thick cable
Thick pure copper cable, low resistance wire, large carrying capacity, thick enough, welding no heat current no loss transmitted to the welding head, to ensure welding current.

18650 Cylindrical Lithium Battery Spot Welder Pneumatic Precision Welding Head 4



 3. Precision resistance welding head
Horizontal welding structure, double linear guide design left and right pressure can be adjusted according to the welding thickness.
Built-in pressure sensor, precise control to apply stable pressure.

18650 Cylindrical Lithium Battery Spot Welder Pneumatic Precision Welding Head 5



Device action flow description



Power on -- Check whether the WELED switch is on -- Turn on the power of the motion control system -- Turn on the welding head action --



find the origin position -- place the product to be welded on the desktop -- Step on the pedal -- push down the welding head --



spot welding is completed -- return the welding head



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
