12KW High Power Power-Driven 18650 Battery Tab Spot Welding Machine

12KW High Power Power-Driven 18650 Battery Tab Spot Welding Machine

  • High Light

    Single Sided Spot Welder Battery Use

    ,

    CCD Single Sided Spot Welder

    ,

    CCD Ebike Battery Spot Welder

  • Main Color
    Silver White
  • Action Type
    Semi-automatic
  • Product Name
    Multi-pulse Electric Lithium Battery Spot Welding Machine
  • Head Height
    130MM(Max)
  • Drive Mode
    Foot On The Switch
  • Welding Power Source
    Multi-pulse Welding
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Delivery Time
    5-8 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

12KW High Power Power-Driven 18650 Battery Tab Spot Welding Machine

12KW High Power Power-Driven 18650 Battery Tab Spot Welding Machine


● The lithium battery spot welding machine adopts pure electric cylinder free design, no need to connect the air source, low noise, stable welding pressure output.


● Motor drive, control box precision control, three modes adjustable: single point/semi-automatic/automatic.


● The multi-pulse lithium battery spot welding machine adopts a proprietary output energy optimization algorithm, the output voltage and output current transformation is reasonable, the output power is large, the welding ability is strong, the solder joint is clear and firm, and the cremation is small.


● Self-developed precision welding head, accurate pressure regulation control.


● Microcomputer technology control, control grid voltage, automatic tracking compensation.


● Applicable battery specifications: minimum no less than 50MM, maximum no more than 130MM. (More than applicable heightening type)


● The welding platform adopts high-quality tempered glass to protect the desktop from wear during the welding process.


● Vertical spot welding, manual control of pressure depth.


● Digital LED display, equipment parameter adjustment is more intuitive, easy to learn and easy to operate.


● The welder can prestore multiple programs, which can be changed and called at will


● Compact structure, small size, large power, large industrial circuit design, safe and reliable welding process



  1. Welding case

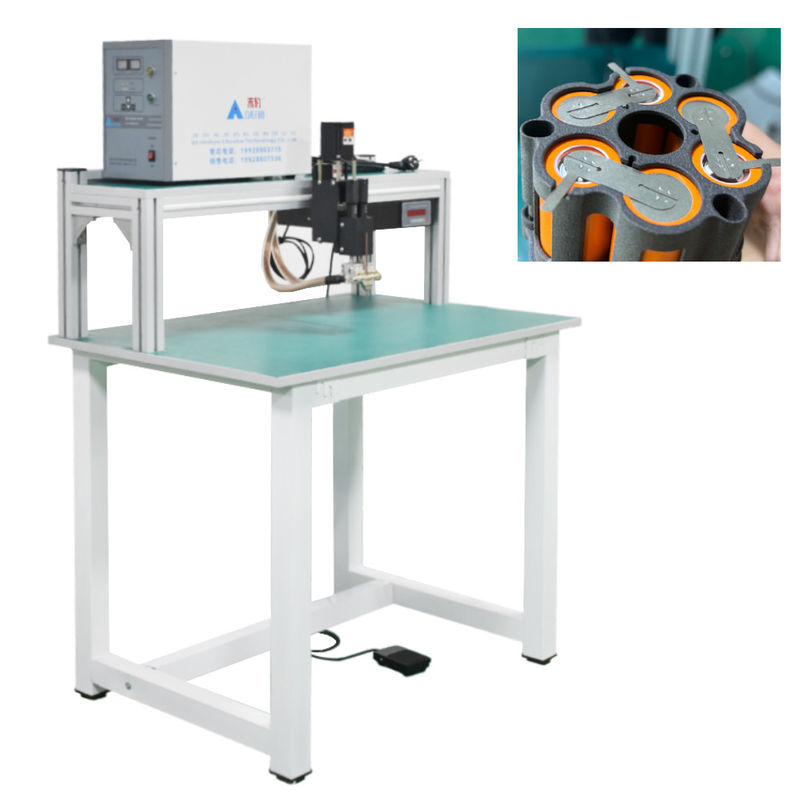

12KW High Power Power-Driven 18650 Battery Tab Spot Welding Machine 0 12KW High Power Power-Driven 18650 Battery Tab Spot Welding Machine 1 12KW High Power Power-Driven 18650 Battery Tab Spot Welding Machine 2



Technical specification
  •  Main technical parameters
  •  Maximum distance between table top and welding head: 130MM
  •  Welding stroke: 10MM
  •  Manual up-down adjustment stroke: 50-130MM
  •  Screw precision: 0.1MM
  •  Spot welding pressure (head tracking system) : 5KG/F (adjustable)
  •  Welding thickness: 0.04-0.18MM (depending on the quality of power grid and the quality of welding materials)
  •  First pulse: Level 0-3 (adjustable)
  •  Second pulse: Level 0-3 (adjustable)
  •  First energy: 0-999 (adjustable)
  •  Second energy: 0-999 (adjustable)
  •  With welding needle: can be matched with a variety of specifications welding needle.
  •  The whole machine adopts AC 220V voltage, easy to operate and adjust.
  •  Power supply: Single-phase 220V 50/60HZ 2.8KW.
  •  Air source specification: No air source required
  •  Equipment weight: 60KG
  •  Welding platform load: 60KG
  •  Relocation accuracy: 0.1mm
  •  Driving mode: electric precision welding head, dual shaft pressure following system
  •  Welding speed: 180P/M (Max)
Function Introduction

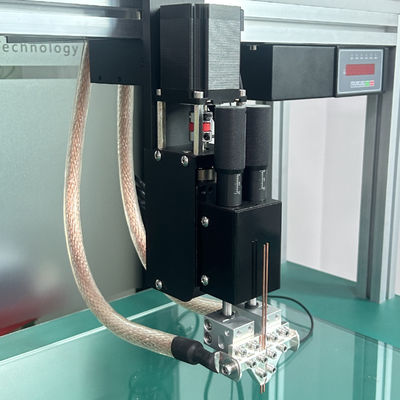

Precision electric welding head

The welding pressure can be precisely adjusted according to the demand, and the adjustment range is 1-5KGF. Stepper servo motor is used to control the welding head, and the welding output energy is high speed and stable.



12KW High Power Power-Driven 18650 Battery Tab Spot Welding Machine 3



 Explosion-proof tempered glass

High quality tempered glass protects the table top from abrasion during welding. Ensure smooth and smooth welding process.



12KW High Power Power-Driven 18650 Battery Tab Spot Welding Machine 4



Welding mode is adjustable
The welding mode can be adjusted according to the demand, respectively: 1. Single point mode. 2. Semi-automatic mode. 3. Automatic mode



12KW High Power Power-Driven 18650 Battery Tab Spot Welding Machine 5



Device action flow description



Power on -- display 600 OE self-test screen -- press the up arrow to enter the system -- Turn on the power of the motion control system --



welding head action -- Find the origin position -- Place the product to be welded on the desktop -- Step on the pedal -- welding head down --



spot welding completed -- welding head back
