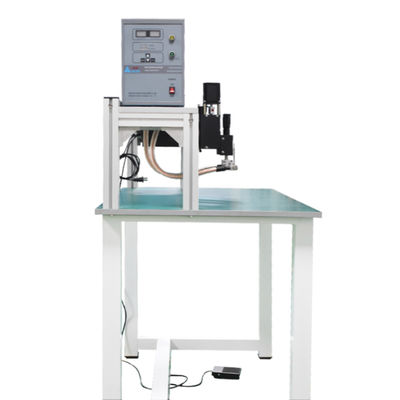

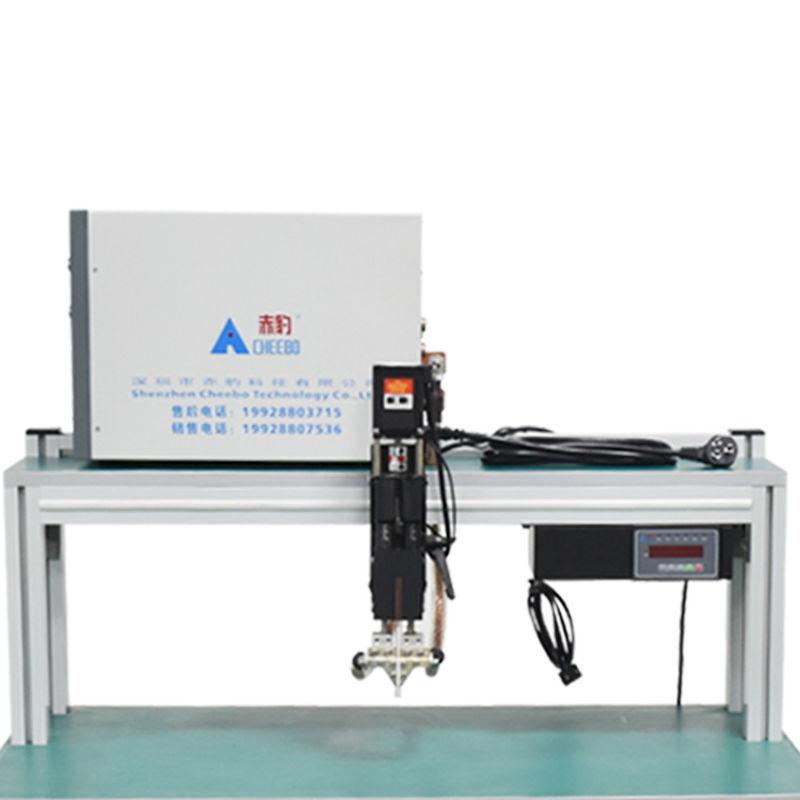

Multi Pulse Power Lithium Battery Spot Welder 18650 Electric High Precision

Multi Pulse Power Lithium Battery Spot Welder 18650 Electric High Precision

  • High Light

    Multi Pulse Lithium Battery Spot Welder

    ,

    Multi Pulse 18650 Battery Welder

    ,

    High Precision 18650 Battery Welder

  • Motor Type
    Stepper Motor
  • Switch Style
    One-click Switch
  • Product Name
    Multi-pulse Electric Lithium Battery Spot Welding Machine
  • Welding Current
    3000A
  • Equipment Size (L*W*H)
    900*600*1300
  • Welding Cable Material
    Pure Copper
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLD-26
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Multi Pulse Power Lithium Battery Spot Welder 18650 Electric High Precision

Multi Pulse Power Lithium Battery Spot Welder 18650 Electric High Precision


Equipment introduction

● Lithium battery spot welder adopts pure electric cylinder-free design, no need to connect air source, low noise and stable welding pressure output.



● Motor driven, control box precision control, single point/semi-automatic/automatic three modes adjustable.


● Multi-pulse lithium battery spot welder adopts proprietary output energy optimization algorithm, with reasonable output voltage and output current transformation, high output power, strong welding capacity, clear and firm weld joints and small cremation.


● Precision welding head developed independently, accurate control of pressure adjustment.



● Microcomputer technology control, control grid voltage, automatic tracking compensation.


● Applicable battery specifications:minimum not less than 50MM,maximum not more than 130MM.


● The welding platform is made of high quality tempered glass to protect the table from wear and tear during the welding process.


● Vertical spot welding with manual control of pressure depth.


● Digital LED display, the equipment parameters are more intuitive to adjust, easy to learn and easy to operate.


● Compact structure, small volume, high power, large industrial circuit design, safe and reliable welding process.



Technical specification



Welding thickness 0.02-0.18MM Welding power supply Multiple-pulse
Welding mode Single side double point horizontal welding Table top and weld head height 130MM (Maximum pitch adjustable)
Supply current 3000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Equipment power 12KW Equipment size 600*900*1300MM
Driving mode Electric Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Device action flow description



Power on -- display 600 OE self-test screen -- press the up arrow to enter the system -- Turn on the power of the motion control system --



welding head action -- Find the origin position -- Place the product to be welded on the desktop -- Step on the pedal -- welding head down --



spot welding completed -- welding head back



Function Introduction



1. Welding mode is adjustable

Welding mode can be adjusted according to demand, respectively: 1. single point mode. 2. semi-automatic mode . 3. automatic mode



Multi Pulse Power Lithium Battery Spot Welder 18650 Electric High Precision 0



 2. Pressure regulating device

The welding pressure can be adjusted to the appropriate parameters according to the welding thickness and material to ensure precise and high quality welding.

Multi Pulse Power Lithium Battery Spot Welder 18650 Electric High Precision 1



 3. Multipulse power supply

Digital LED display, key adjustment is simple and convenient, one-button switch button. Simple structure, small size, large power, industrial circuit design, safe and reliable welding process.

Multi Pulse Power Lithium Battery Spot Welder 18650 Electric High Precision 2



  1. Welding case



Multi Pulse Power Lithium Battery Spot Welder 18650 Electric High Precision 3 Multi Pulse Power Lithium Battery Spot Welder 18650 Electric High Precision 4 Multi Pulse Power Lithium Battery Spot Welder 18650 Electric High Precision 5



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
