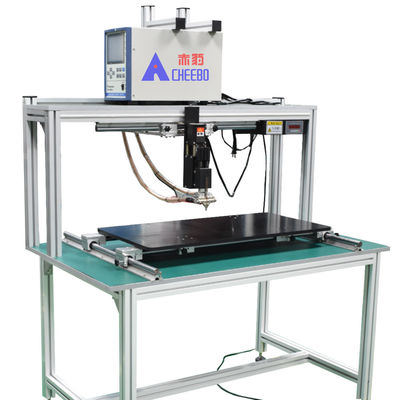

Stable Pressure Battery Tab Spot Welding Machine With Nickel Plate

Stable Pressure Battery Tab Spot Welding Machine With Nickel Plate

  • High Light

    Stable Pressure Battery Pack Testing Machine

    ,

    Stable Pressure 18650 Tab Welder

    ,

    18650 Tab Welder With Nickel Plate

  • Weight
    80KG
  • Head Height
    250MM (Max) Adjustable
  • Product Name
    Guide Rail Lithium Battery Spot Welding Machine
  • Platform Load
    50KG
  • X-axis Welding Stroke
    750MM
  • Y-axis Welding Stroke
    350MM
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBMN8-5036
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Stable Pressure Battery Tab Spot Welding Machine With Nickel Plate

Stable Pressure Battery Tab Spot Welding Machine With Nickel Plate


Equipment introduction



● Purely electric without cylinder, low noise, fast speed and stable pressure


● Double guide rails thickened and thickened to ensure stable and firm chassis, not easy to deformation.



● The welding head can move up and down, left and right, and can move according to the size of the battery pack, which is convenient for welding.


● Self-developed precision welding head with precise pressure adjustment and control.


● Desktop guide rail can be pushed and pulled back and forth with a stroke of 750 * 350mm.


● The guide rail is easy to move, saving time and effort, greatly reducing welding time and increasing manual welding speed.


● The spot welding process does not need to push the battery pack, saving energy and speed. The platform can carry a load of 50KG, which is especially suitable for welding large battery packs.

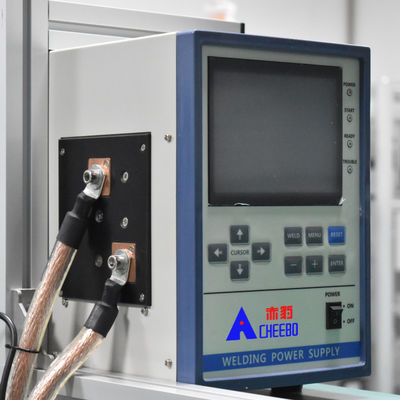

● Transistorized welding power supply with fast current rise, achieving high quality welding in a short time.


● There are three types of welding modes: constant voltage, constant current and constant voltage current.


● Compact structure, small volume, high power, no need of welding transformer.


● Controlled by microcomputer technology, real-time monitoring of welding voltage, current and resistance waveform.


● 5.7" HD LED display, easy and intuitive to adjust equipment parameters, and multiple programs can be pre-stored.


● Energy-saving and environmental protection, stable and efficient, low power consumption of the equipment.



  1. Welding case
  2.
  3. Stable Pressure Battery Tab Spot Welding Machine With Nickel Plate 0 Stable Pressure Battery Tab Spot Welding Machine With Nickel Plate 1 Stable Pressure Battery Tab Spot Welding Machine With Nickel Plate 2



Technical specification



Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Welding thickness 0.02-0.5MM Welding power supply Transistor
Supply current 5000A*8000A*10000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
XY axis travel 750*350MM (Manual slide) Welding pressure 700*1200*1450MM
Driving mode Electric Machine Weight 70KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Function Introduction



 1. Guide rail design

Double guide rail thickening design, the chassis is stable and firm, not easy to deformation. The guide rail can move left and right, and the welding head part is also equipped with a guide rail design, which is suitable for large battery assembly and welding, saving time and effort.





Stable Pressure Battery Tab Spot Welding Machine With Nickel Plate 3



 2. Electric precision welding head

Horizontal welding structure, double linear guide design left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure. The welding head is equipped with a guide rail, which can move left and right for easy welding.



Stable Pressure Battery Tab Spot Welding Machine With Nickel Plate 4



 3. Electric control

No additional air source, low noise, fast welding speed, stable pressure.

Stable Pressure Battery Tab Spot Welding Machine With Nickel Plate 5

FAQ

Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
