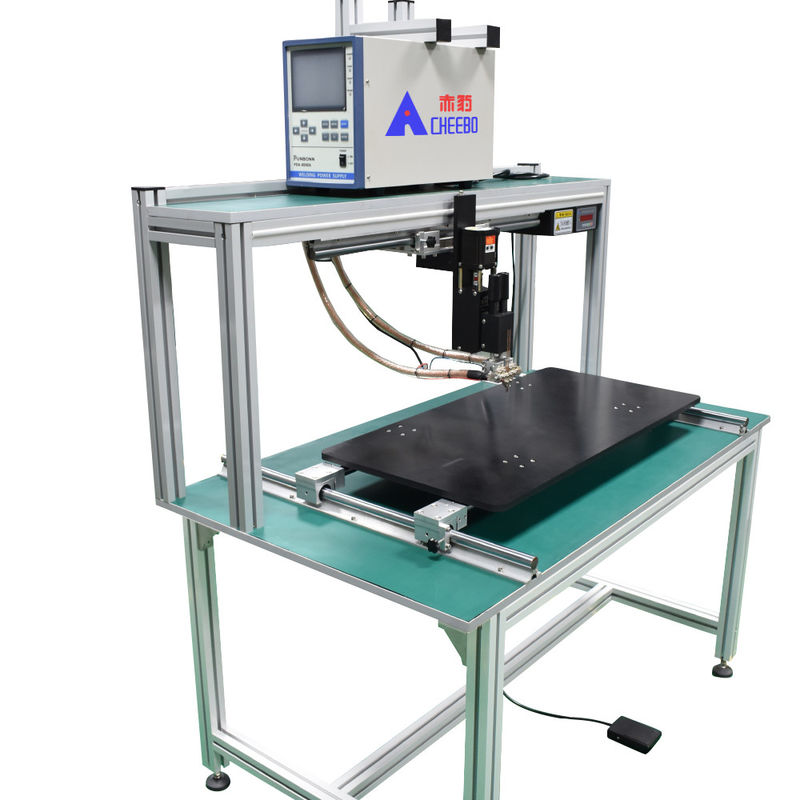

Electric Battery Pack Assembly Equipment Battery Transistor Power Tab Spot Welder

Electric Battery Pack Assembly Equipment Battery Transistor Power Tab Spot Welder

  • High Light

    Transistor Power Battery Pack Assembly Equipment

    ,

    Electric Battery Tab Spot Welder

    ,

    Transistor Power Battery Tab Spot Welder

  • Welding Power Supply
    Transistor
  • Product Name
    Guide Rail Lithium Battery Spot Welding Machine
  • Welding Platform Material
    Bakelite
  • Color
    Silver White + Blue + Black
  • Drive Mode
    Electric
  • Cable Length
    800MM
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLDD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Electric Battery Pack Assembly Equipment Battery Transistor Power Tab Spot Welder

Electric Battery Pack Assembly Equipment Battery Transistor Power Tab Spot Welder


Equipment introduction



● Pure electric cylinderless, low noise, fast speed, stable pressure

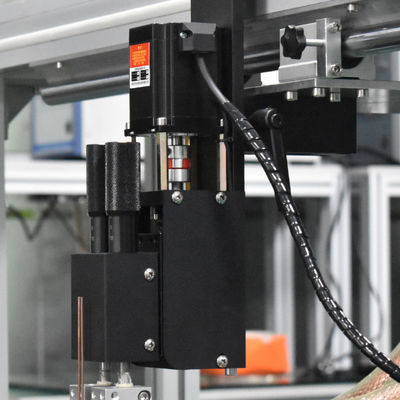

● Double guide rail thickened and thickened to ensure that the chassis is stable and firm, not easy to deform. The welding head can be moved up and down, left and right, and can be moved according to the size of the battery pack, which is convenient for welding.


● Self-developed precision welding machine head, with precise pressure adjustment and control.


● The desktop guide rail can be pushed and pulled back and forth, and the stroke is 750*350mm.


● The guide rail is easy to move, saving time and effort, greatly shortening the welding time and improving the manual welding speed.


● The spot welding process does not need to push the battery pack, which saves effort and is fast. The platform can carry a load of 50KG and is particularly suitable for welding large battery packs.


● Transistor welding power supply, fast current rise, achieve high-quality welding in a short time.


● There are three welding methods: constant voltage, constant current and constant voltage current.


● Compact structure, small size, high power, no need to weld transformer.


● Using microcomputer technology control, real-time monitoring of welding voltage, current, resistance waveform.


● 5.7 inch high-definition LED display, convenient and intuitive adjustment of equipment parameters, can pre-store multiple programs.


● Energy saving and environmental protection, stable and efficient, low power consumption of equipment.



Technical specification



Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Welding thickness 0.02-0.5MM Welding power supply Transistor
Supply current 5000A*8000A*10000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
XY axis travel 750*350MM (Manual slide) Welding pressure 700*1200*1450MM
Driving mode Electric Machine Weight 70KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Welding case



Electric Battery Pack Assembly Equipment Battery Transistor Power Tab Spot Welder 0 Electric Battery Pack Assembly Equipment Battery Transistor Power Tab Spot Welder 1 Electric Battery Pack Assembly Equipment Battery Transistor Power Tab Spot Welder 2



Device action flow description



Power on - detect whether the WELED switch is on - turn on the power of the motion control system - weld head action - find the home position -



place the product to be welded on the table - step on the foot pedal - weld head down - spot welding completed - weld head back in place



Technical specification



Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Welding thickness 0.02-0.5MM Welding power supply Transistor
Supply current 5000A*8000A*10000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
XY axis travel 750*350MM (Manual slide) Welding pressure 700*1200*1450MM
Driving mode Electric Machine Weight 70KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding




Function Introduction



 1. Guide rail design

Double guide rail thickening design, the chassis is stable and firm, not easy to deformation. The guide rail can move left and right, and the welding head part is also equipped with a guide rail design, which is suitable for large battery assembly and welding, saving time and effort.


Electric Battery Pack Assembly Equipment Battery Transistor Power Tab Spot Welder 3



 2. Transistor welding power supply

Welding energy output is the most stable power supply, real-time display of welding voltage and current waveform, current rising fast, can achieve high quality welding in a short time.



Electric Battery Pack Assembly Equipment Battery Transistor Power Tab Spot Welder 4



 3. Bold cable

Thick pure copper cable, low resistance wire, high current carrying capacity, thick enough, welding does not generate heat, and current is transmitted to the welding head without loss, ensuring welding current.



Electric Battery Pack Assembly Equipment Battery Transistor Power Tab Spot Welder 5



FAQ



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
