Foot Drive Battery Tab Spot Welding Machine Mobile Rail Welding Platform

Foot Drive Battery Tab Spot Welding Machine Mobile Rail Welding Platform

  • High Light

    Battery Tab Spot Welding Machine 30V

    ,

    Foot Drive Tab Spot Welding Machine

    ,

    Foot Drive Battery Pack Welding Machine

  • Welding Speed
    180P/M
  • Max Voltage
    30V (adjustable)
  • Product Name
    Guide Rail Lithium Battery Spot Welding Machine
  • Rise Time
    0.00-9.99ms
  • Preloading Time
    0000-9999ms
  • Slow Down Time
    0.00-9.99ms
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLDD-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Foot Drive Battery Tab Spot Welding Machine Mobile Rail Welding Platform

Foot Drive Battery Tab Spot Welding Machine Mobile Rail Welding Platform

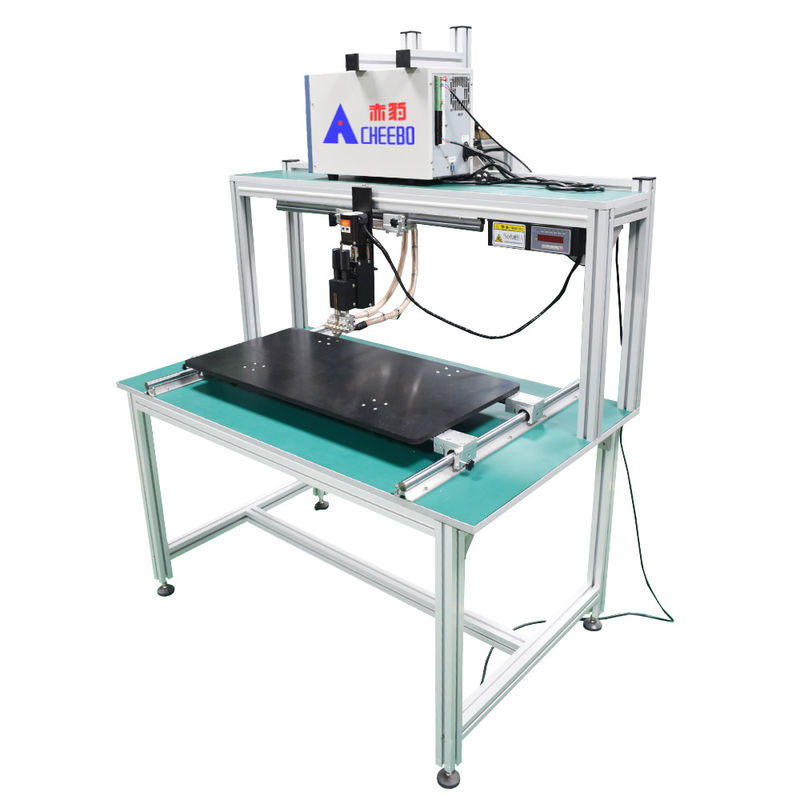

Equipment introduction



● Pure electric cylinder-less, low noise, fast speed and stable pressure.


● Double guide rails are thickened to ensure that the chassis is stable and firm, and it is not easy to deform. The welding head can move up and down, left and right, and can move according to the size of the battery pack, which is convenient for welding.


● Self-developed precision welding machine head with precise pressure adjustment and control.


● The desktop guide rail can be pushed and pulled back and forth with a stroke of 750 * 350mm.


● The guide rail is easy to move, saving time and labor, greatly shortening the welding time and improving the manual welding speed.


● The spot welding process does not need to push the battery pack, which is labor-saving and quick. The platform can bear a load of 50KG, which is especially suitable for welding large battery packs.


● Transistor welding power supply, with fast current rising speed, can realize high-quality welding in a short time.


● There are three welding methods: constant voltage, constant current and constant voltage current.


● Compact structure, small volume, high power, no need to weld transformer.


● Adopt microcomputer technology to control and monitor welding voltage, current and resistance waveform in real time.


●5.7-inch high-definition LED display, convenient and intuitive adjustment of equipment parameters, and multiple programs can be pre-stored.


● Energy saving, environmental protection, stability and high efficiency, and low equipment power consumption.

Technical specification



Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Welding thickness 0.02-0.5MM Welding power supply Transistor
Supply current 5000A*8000A*10000A Welding speed 180P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
XY axis travel 750*350MM (Manual slide) Welding pressure 700*1200*1450MM
Driving mode Electric Machine Weight 70KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Device action flow description



Power on - detect whether the WELED switch is on - turn on the power of the motion control system - weld head action - find the home position -



place the product to be welded on the table - step on the foot pedal - weld head down - spot welding completed - weld head back in place



  • Welding precautions



1.Keep the distance between the end face of the welding needle and the end face of the battery 3 to 5MM.



2. For the battery specifications in a battery pack, the spot welding surface must be flush and the height as consistent as possible.



3. Clean the end face of the spot welding needle regularly.



Function Introduction



 1. Guide rail design

Double guide rail thickening design, the chassis is stable and firm, not easy to deformation. The guide rail can move left and right, and the welding head part is also equipped with a guide rail design, which is suitable for large battery assembly and welding, saving time and effort.



Foot Drive Battery Tab Spot Welding Machine Mobile Rail Welding Platform 0

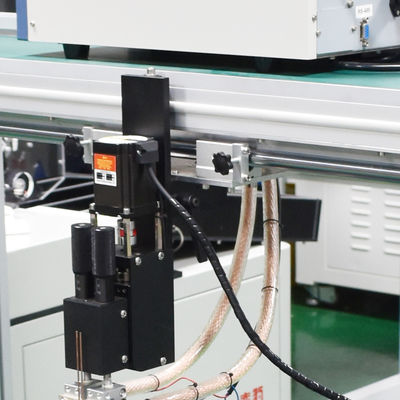

 2. Electric precision welding head

Horizontal welding structure, double linear guide design left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure. The welding head is equipped with a guide rail, which can move left and right for easy welding.



Foot Drive Battery Tab Spot Welding Machine Mobile Rail Welding Platform 1



 3. Bold cable

Thick pure copper cable, low resistance wire, high current carrying capacity, thick enough, welding does not generate heat, and current is transmitted to the welding head without loss, ensuring welding current.



Foot Drive Battery Tab Spot Welding Machine Mobile Rail Welding Platform 2



FAQ



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
