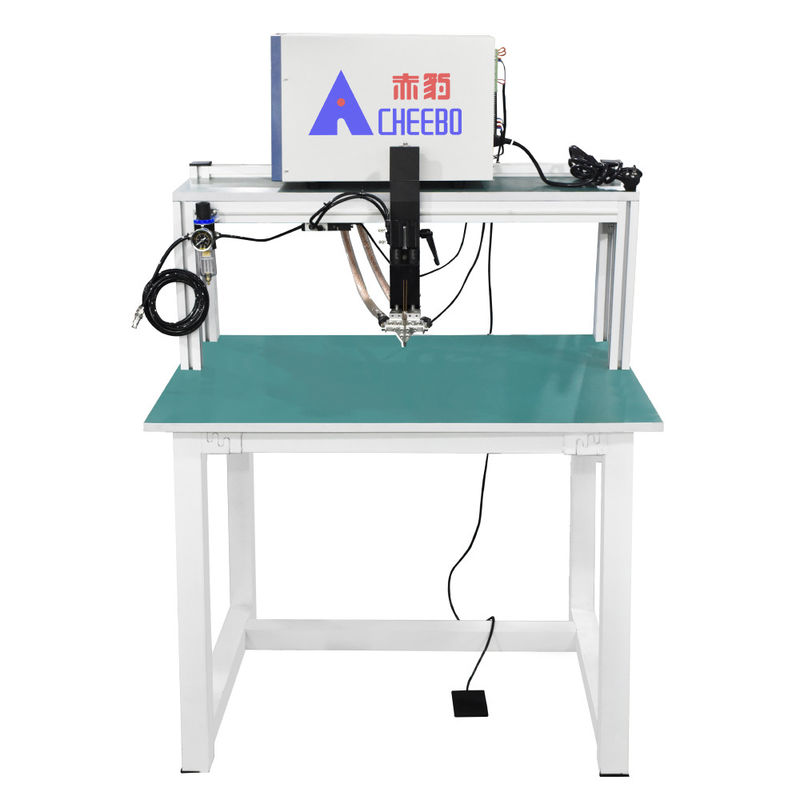

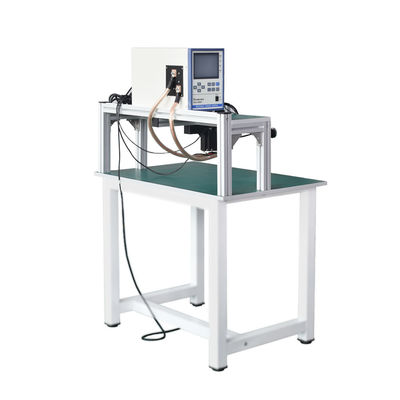

5000A Power Supply Battery Tab Spot Welding Machine Pneumatic Battery Spot Welder

5000A Power Supply Battery Tab Spot Welding Machine Pneumatic Battery Spot Welder

  • High Light

    Spot Welder For Battery 18650

    ,

    Pneumatic Nickel Strip Spot Welding Machine

    ,

    Pneumatic Nickel Strip Spot Welding Machine

  • Material
    Stainless Steel
  • Welding Material
    Nickel
  • Product Name
    Transistor Pneumatic Lithium Battery Spot Welder
  • Welding Method
    Convex/cusp (adjustable)
  • Welding Mode
    Single
  • Maximum Welding Thickness
    0.5MM
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

5000A Power Supply Battery Tab Spot Welding Machine Pneumatic Battery Spot Welder

5000A Power Supply Battery Tab Spot Welding Machine Pneumatic Battery Spot Welder


Application scope of the product



Power lithium-ion battery module welding, 3C lithium-ion battery pack welding, Ni-MH battery pack welding, hardware welding, electronic and



electrical parts welding, wire terminal welding, stainless steel parts welding, metal jewelry welding, copper products welding, aluminum products



welding. It is also suitable for product maintenance and proofing.





Equipment introduction



CHEEBO lithium battery spot welding machine adopts self-developed precision welding head and precise pressure adjustment and control.



CBLQ-5A battery nickel welding machine does not need welding transformer, small size, light weight, beautiful.



It can be used for bump spot welding and needle spot welding.



18650 Battery spot welder has three control modes: constant current, constant voltage, constant current and constant voltage combination mode.



Built-in pre-inspection function, which can be used to judge whether the workpiece is electrified before welding.



The welding current of lithium battery spot welder can be switched quickly and effectively by transistor without transformer.



The welding power supply is controlled by switch mode, which can realize small and efficient welding and high output.



The welding current of the power source rises quickly, and the high quality welding can be realized in a short time.



The spot welding machine of lithium ion battery group increases the function of connection point and effectively improves the production efficiency.



Independent research and development of precision welding head, precise pressure adjustment control.



Controlled by microcomputer technology, it can dynamically monitor the waveforms of welding current, voltage, power and resistance in real time.



5.7inch HD LED display screen, convenient and intuitive adjustment of equipment parameters, and can store multiple programs in advance.



There are three kinds of welding methods: constant voltage, constant current and constant voltage current combination.



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.



5000A Power Supply Battery Tab Spot Welding Machine Pneumatic Battery Spot Welder 0



 2. Transistor power supply

The welding current rises very fast, achieving high quality welding in a short time. The waveform of welding current, voltage and resistance is dynamically and real-time detected. Built-in pre-check function, welding work can be judged before welding power.



5000A Power Supply Battery Tab Spot Welding Machine Pneumatic Battery Spot Welder 1



 3. Thick cable
Thick pure copper cable, low resistance wire, large carrying capacity, thick enough, welding no heat current no loss transmitted to the welding head, to ensure welding current.



5000A Power Supply Battery Tab Spot Welding Machine Pneumatic Battery Spot Welder 2



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.



Looking forward to your consultation, we will provide you with the best quality service throughout the process!!!
