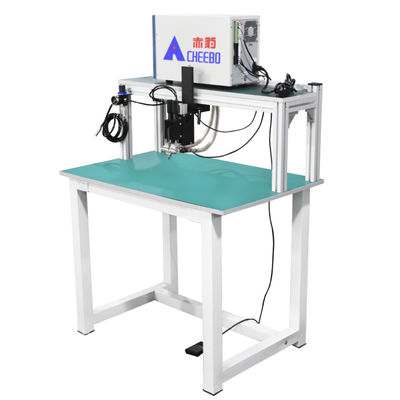

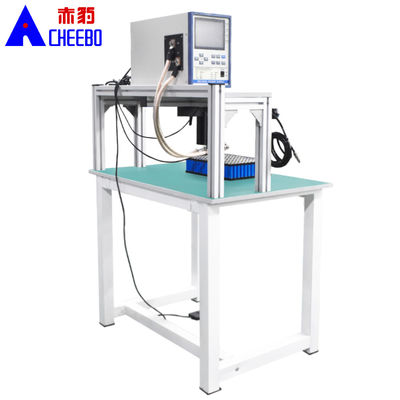

Hand Battery Tab Spot Welding Machine Pressure Adjustable Cell Use

Hand Battery Tab Spot Welding Machine Pressure Adjustable Cell Use

  • High Light

    Hand Battery Tab Spot Welding Machine

    ,

    Pressure Adjustable Cell Spot Welding Machine

    ,

    Hand Cell Spot Welding Machine

  • Warranty Of Core Components
    1 Year
  • Core Components
    Welding Power Source, Mesa Table Frame, Welding Head, CU, Elastic Cable Paper, Foot Switch
  • Product Name
    Transistor Pneumatic Lithium Battery Spot Welder
  • Dimensions
    1200*650*1200mm
  • Voltage
    AC 220V ±20V
  • Weight (KG)
    30 KG
  • Place of Origin
    Guangdong, China
  • Brand Name
    CHEEBO Technology
  • Certification
    CE certification
  • Model Number
    CBLQ-5A
  • Minimum Order Quantity
    1 set
  • Price
    NEGOTIABLE
  • Packaging Details
    Marine moisture-proof wooden case
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50 Set/Sets per Week

Hand Battery Tab Spot Welding Machine Pressure Adjustable Cell Use

Hand Welding Battery Tab Spot Welding Machine Pressure Adjustable


Equipment introduction



● Cheebo lithium battery spot welding machine adopts self-developed precision welding head, pressure precise adjustment and control.


● CBLQ-5A battery nickel welding machine does not require welding transformer, small size, light weight and beautiful appearance.


● It can be applied to bump spot welding and needle spot welding.


● 18650 battery spot welding machine has three control modes: constant current, constant voltage, constant current and constant voltage combination mode.


● Built-in pre-check function, which can be used to determine whether the workpiece is energized before welding.


● The welding current of lithium battery spot welding machine can be switched quickly and efficiently through transistors without transformer.


● The welding power supply is controlled by switching mode, which can realize small but efficient welding and high output.


● The power supply welding current rises quickly, and high-quality welding is realized in a short time.


● The lithium-ion battery pack spot welding machine increases the connection point function and effectively improves production efficiency.


● Independent research and development of precision welding head, precise pressure adjustment control.


● Microcomputer technology control, dynamic real-time monitoring of welding current, voltage, power and resistance waveforms.


● 5.7 inch high-definition LED display, convenient and intuitive adjustment of equipment parameters, can store multiple programs in advance.


● There are three welding methods: constant voltage, constant current and constant voltage current combination.



  1. Welding case



Hand Battery Tab Spot Welding Machine Pressure Adjustable Cell Use 0 Hand Battery Tab Spot Welding Machine Pressure Adjustable Cell Use 1 Hand Battery Tab Spot Welding Machine Pressure Adjustable Cell Use 2



Technical specification



Welding thickness 0.02-0.5MM Welding power supply Transistor
Welding mode Single side double point horizontal welding Table top and weld head height 250 (Maximum pitch adjustable)
Supply current 5000A/8000A/10000A Welding speed 200P/M
Spot welding method Bump welding/tip welding Welding pressure 5KG/F
Maximum voltage 30V(Adjustable by oneself) Equipment size 600*900*1300MM
Driving mode Pneumatic Machine Weight 60KG
Power source specification Single-phase 220V50/60HZ Application scenarios Battery welding



Function Introduction



 1. Pneumatic precision welding head

Horizontal welding structure, double linear guide design, left and right pressure can be adjusted separately. Built-in pressure sensor, precise control to apply stable pressure.



Hand Battery Tab Spot Welding Machine Pressure Adjustable Cell Use 3



 2. Thickened tempered glass
High quality explosion-proof glass is used to effectively prevent the damage caused to the desktop during welding. At the same time, it can increase the fluency of welding and increase the welding efficiency.



Hand Battery Tab Spot Welding Machine Pressure Adjustable Cell Use 4



 3. Adjusting mechanism of welding head

The welding head can be adjusted up and down to increase the distance between the desktop and the welding head. Can weld a variety of different heights, different types of cells.



Hand Battery Tab Spot Welding Machine Pressure Adjustable Cell Use 5



Equipment workflow



Power on -- check whether the WELED switch is turned on -- place the product to be welded on the desktop -- Step on the foot pedal -- push down



the welding head -- spot welding completed -- return the welding head



FAQ



Q: I don't know which one is right for me?

A: Please tell us the following information

1) Battery model and type.

2) Welding material and welding thickness

3) Commercial industry: We have a lot of sales experience and can provide you with advice.



Q: How do I install and run the machine?

A: Our technicians had installed the machine before shipment. For the installation of some widgets, we will send out detailed training videos and user manuals randomly. 95% of customers can teach themselves.



Q: What's your minimum order quantity?

A: We don't have a minimum order quantity. Whether it is an order of 1 or 100, we will wholeheartedly support you.



Q: How does your factory do in terms of quality control?

A: Quality comes first. More than 20 tests will be performed on each unit. After all the tests are passed, our QC will test the welding performance.



Q: How can I do if the machine goes wrong?

A: If you encounter such problems, please contact us as soon as possible. Do not try to repair the machine by yourself or others. We will respond as soon as possible within 24 hours to solve your problem.
